Product Type
Quarter turn
Standards
Protection class IP 65
DIN EN 45545-3 class E60 (fire protection)
DIN EN 61373 (shock and vibration testing)
ⓘ An article of the same design was tested
DIN EN 45545-2 class E20 (fire protection)
DIN EN 45545-3 class E30 (fire protection)
Material of the module
Zinc die
Stainless steel AISI 316
Stainless steel AISI 304
Stainless steel AISI 303
Brass and zinc die
Brass and stainless steel
Surface of the module
chrome-plated
black powder-coated
nickel-plated
Program
1000
1048
1012
Cut outs
0951-1000-01
0951-1000-02
0951-1012-01
Dimension GH
18.0 mm
20.0 mm
27.0 mm
35.0 mm
40.0 mm
Type of actuation
Square 9 with V-slot, railway version
Square 8
Square 6
Square 7
Triangular 7
Triangular 8
Triangular 10
Square female 6
Slot 1.2 x 3 coinproof
Slot 2 x 4
Double bit 3
Double bit 5
Eastern Europe Ø 13 half-round
Triangular 6.5
Square 8 with arrow
Square 9 with marking, railway version
Square 9 with slot 1 x 2, railway version
Square 7 with arrow
Hexagon female SW 8
Square 6 with arrow
Ø 8.6 with slot
Slot 2 x 2.5 coinproof
Door Version
Left
Right
Housing Head Size
28 x 4 mm
32 x 6 mm
34 x 4 mm
22 x 4 mm
28 x 6 mm
55 x 7 mm
30 x 5 mm
RESET
Safety quarter turns with insert

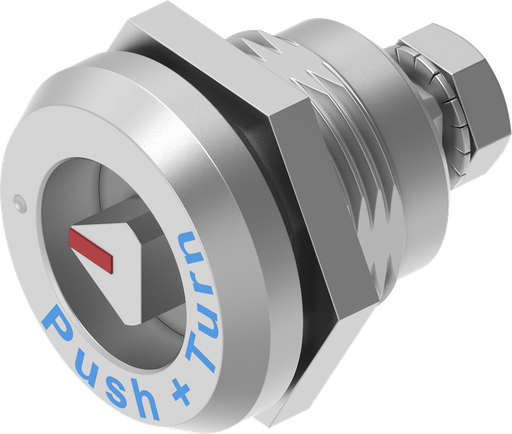

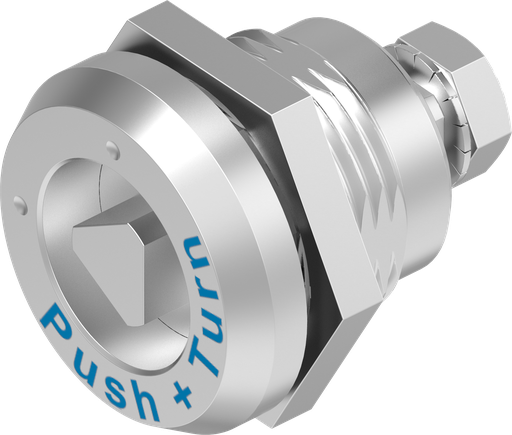

Safety quarter turn triangular 8, Stainless steel AISI 316; 1000-U817-05PH
with stainless steel nut
Safety quarter turn with slot 1.2 x 3, Zinc die chrome-plated; 1000-U817-16IA
with earthing nut
Safety quarter turn hexagon female SW 8, Stainless steel AISI 316; 1000-U817-24PH
with stainless steel nut
Safety quarter turn square 7 with mask, Zinc die chrome-plated; 1000-U818-02IA
with earthing nut

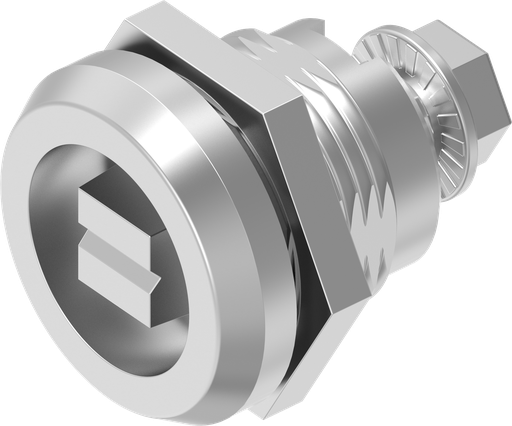

Safety quarter turn square 8 with mask, Zinc die chrome-plated; 1000-U818-03IA
with earthing nut

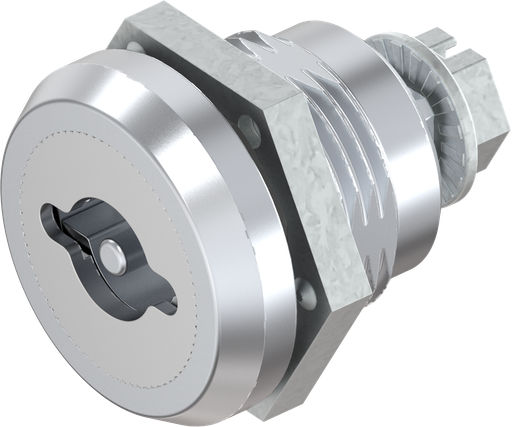

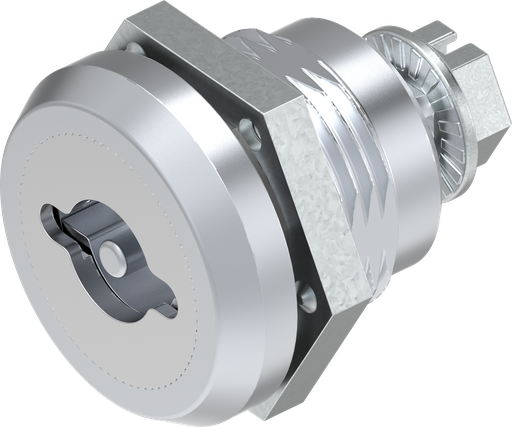

Safety quarter turn, double bit 3 with mask, right version, Zinc die chrome-plated; 1000-U819-01IA
with earthing nut

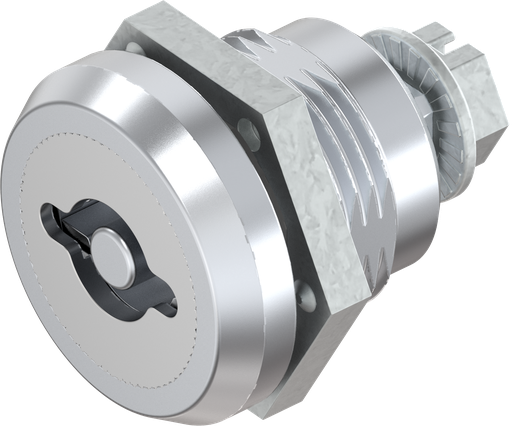

Safety quarter turn, double bit 5 with mask, right version, Zinc die chrome-plated; 1000-U819-02IA
with earthing nut
Safety quarter turn, double bit 3 with mask, left version, Zinc die chrome-plated; 1000-U819-03IA
with earthing nut
Safety quarter turn, double bit 5 with mask, left version, Zinc die chrome-plated; 1000-U819-04IA
with earthing nut

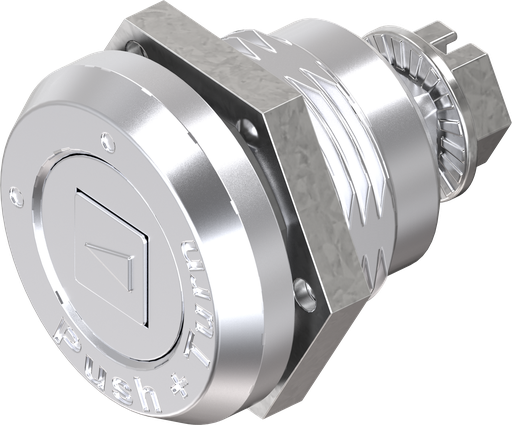

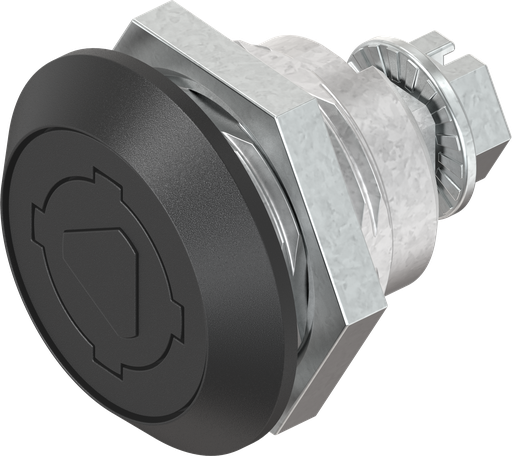

Safety quarter turn triangular 8 with mask, Zinc die black powder-coated; 1000-U835
with earthing nut

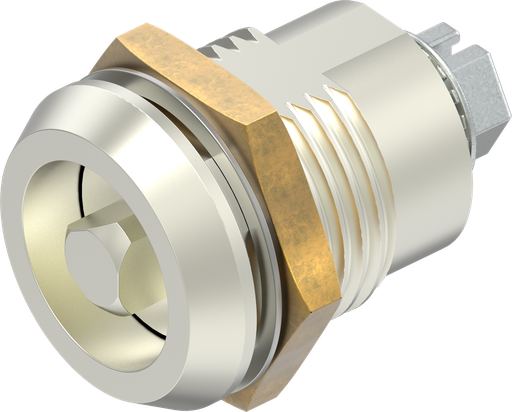

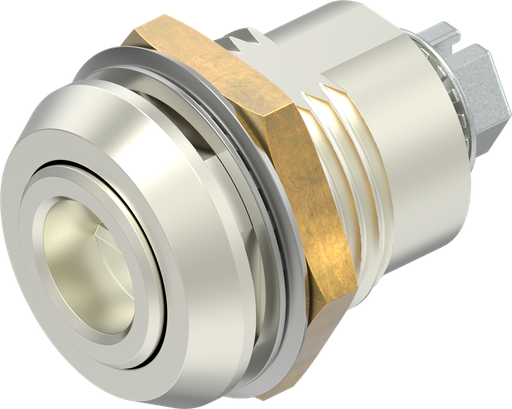

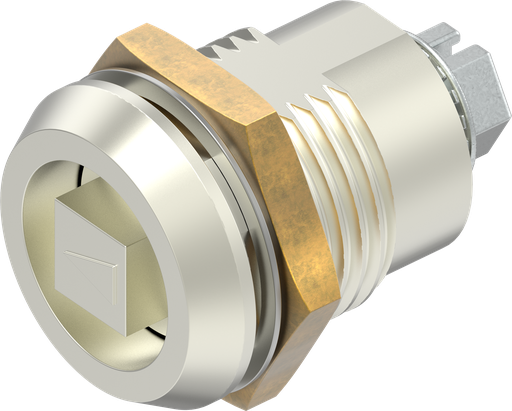

Quarter turn with built-in option triangular 6.5, Zinc die nickel-plated; 1012-U1
with nut
Quarter turn with built-in option square 7, Zinc die nickel-plated; 1012-U2
with nut

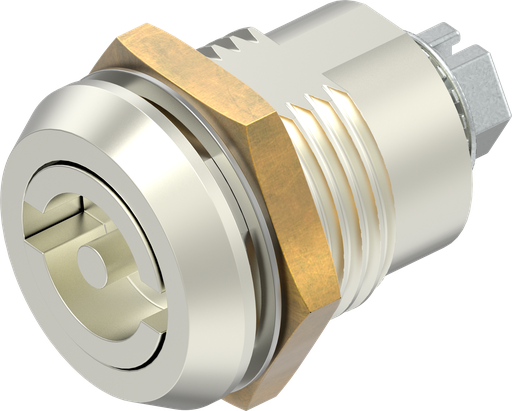

Quarter turn with built-in option double bit 3, Zinc die nickel-plated; 1012-U3
with nut
Quarter turn with built-in option slot 2 x 2.5 coinproof, Zinc die nickel-plated; 1012-U4
with nut

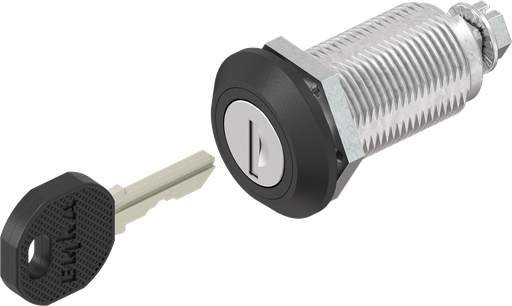

Safety quarter turn keyed EK 333 and insert square female 6, Zinc die black powder-coated; 1048-U22
with earthing nut
Safety quarter turn keyed different and insert square female 6, Zinc die black powder-coated; 1048-U23
with earthing nut
Safety quarter turn triangular 8 with marking, Stainless steel AISI 316; 1000-SU51
with stainless steel nut

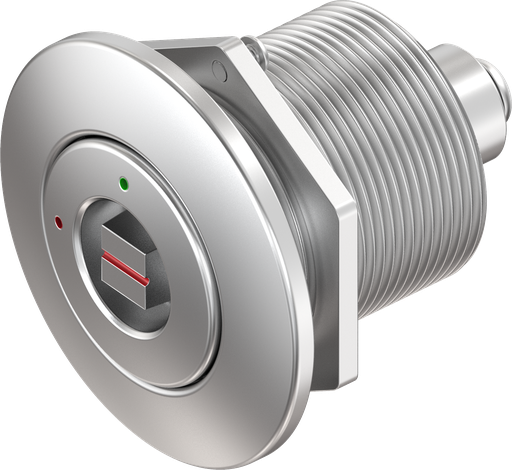

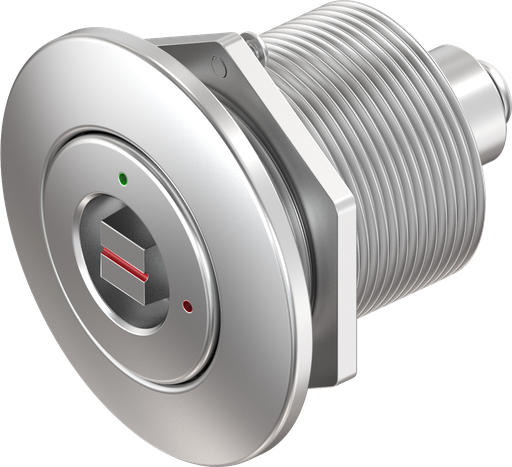

Safety quarter turn version railway with optical opening indicator and marking, left version, Stainless steel AISI 316; 1000-SU610-LI
with nut and additional locking screw
Safety quarter turn version railway with optical opening indicator and marking, right version, Stainless steel AISI 316; 1000-SU610-RE
with nut and additional locking screw

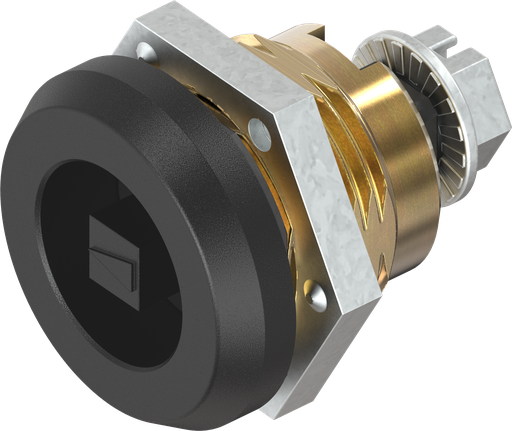

Safety quarter turn square 6, Brass and zinc die black powder-coated; 1000-U260-01
with earthing nut
