Safety quarter turn with slot 1.2 x 3, Zinc die chrome-plated
Safety quarter turn square 7 with mask, Zinc die chrome-plated

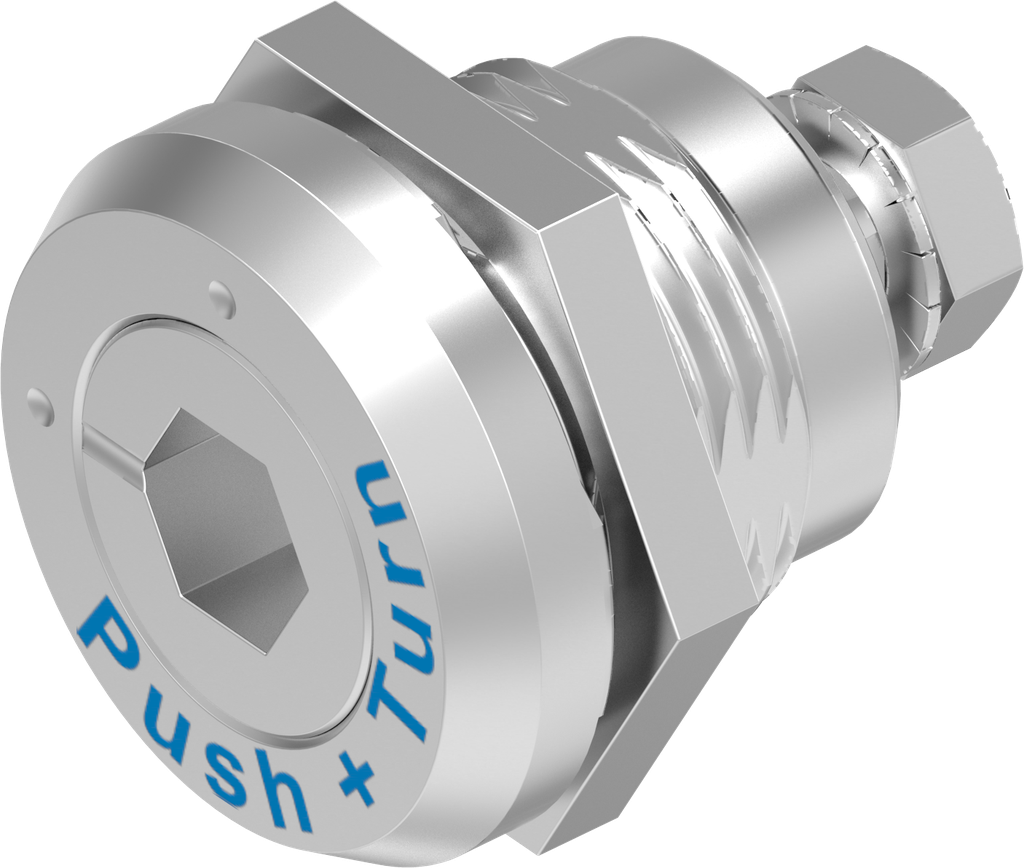

Safety quarter turn hexagon female SW 8, Stainless steel AISI 316; 1000-U817-24PH
with stainless steel nut
Product information:
The safety quarter turn is of a vibration-proof design.
Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.
Push insert back and turn.
Internal Reference:
1000-U817-24PH
Product Type:
Quarter turn
Program:
1000
Catalog sheet:
1B-330
Material of the module :
Stainless steel AISI 316
Number of Possible Locking Points:
1 point, 2 points, 3 point
Article with property rights:
Yes
Fixing type of housing :
nut fixing
Type of actuation:
Hexagon female SW 8
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round

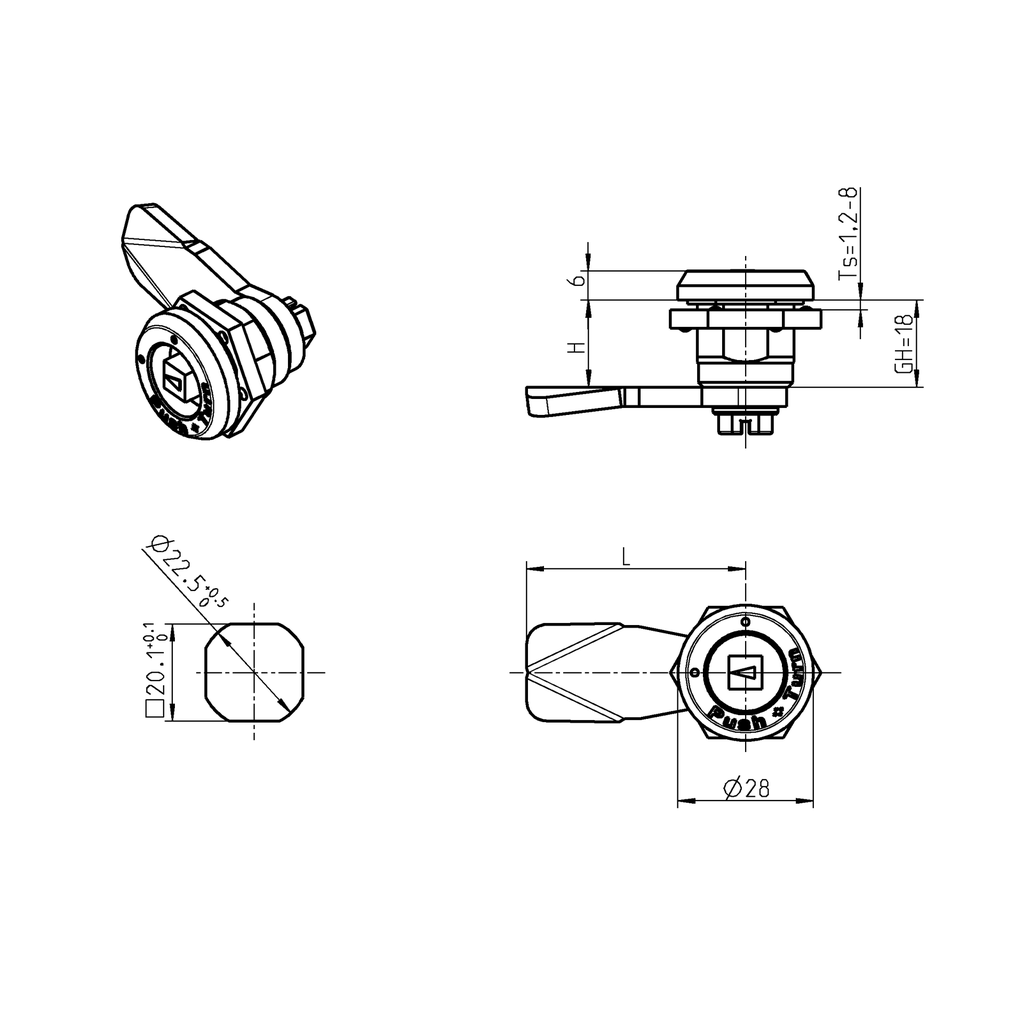

Housing Head Size:
28 x 6 mm
GH Mass:
18 mm
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
8 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Safety quarter turn
