Quarter turn version railway with marking for outside the seal, Stainless steel AISI 303
Safety quarter turn version railway with optical opening indicator and marking, right version, Stainless steel AISI 316

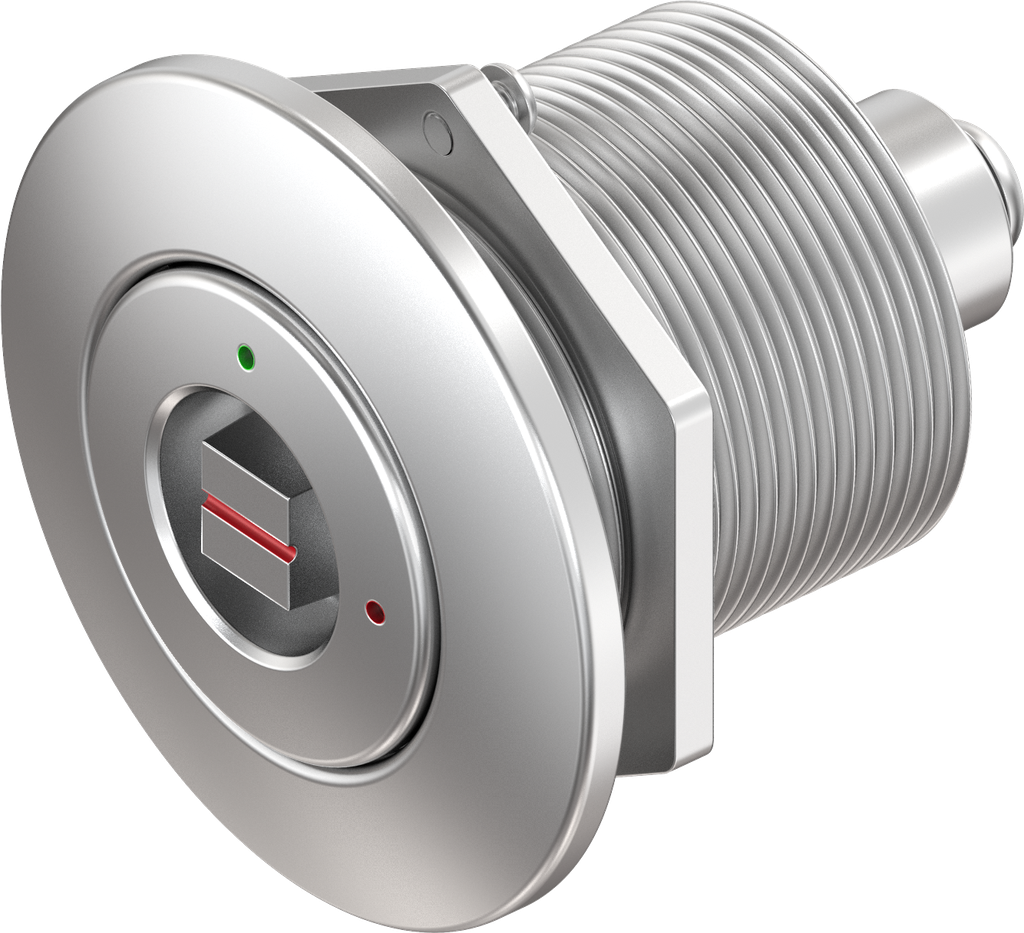

Safety quarter turn version railway with optical opening indicator and marking, left version, Stainless steel AISI 316; 1000-SU610-LI
with nut and additional locking screw
Product information:
The safety quarter turn is of a vibration-proof design. Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.
Function:
Opening process:
Plug in fitting key and push in insert. By turning the key by 90°, the cam rotates and the opening indicator will pop out.
Locking process:
Plug in the fitting key and press in the opening indicator. By turning the key by 90°, the cam rotates.
Internal Reference:
1000-SU610-LI
Product Type:
Quarter turn
Program:
1000
Material of the module :
Stainless steel AISI 316
Number of Possible Locking Points:
1 point, 2 points, 3 point
Fixing type of housing :
nut fixing
Type of actuation:
Square 9 with marking, railway version
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:
55 x 7 mm
Foamed gasket:
Yes
GH Mass:
35 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
28 mm
Locking set:
Insert
Door Version :
Left
Locking components:

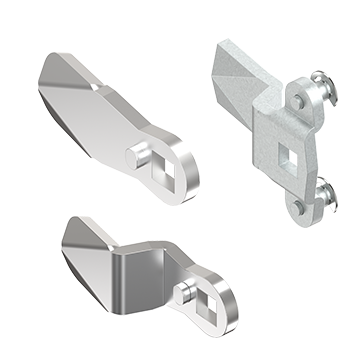

Cam
Quarter turn types:
Safety quarter turn
No Specifications
