Quarter turn with built-in option triangular 6.5, Zinc die nickel-plated
Quarter turn with built-in option double bit 3, Zinc die nickel-plated
Product Benefits:

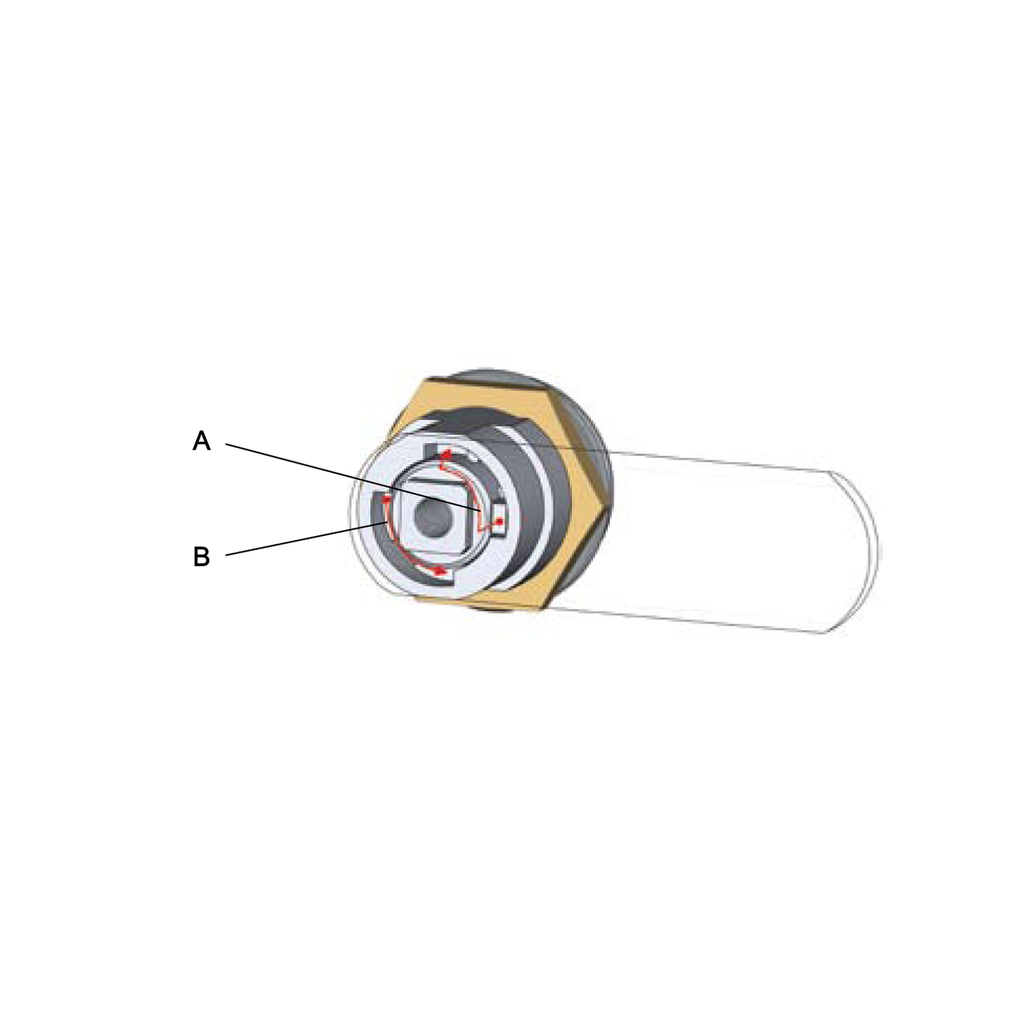

There are two variants of the quarter turn.
- Variant A: Safety quarter turn
Push cam back using insert and turn. Quarter turn snaps into place. - Variant B: standard quarter turn
Turn the insert. Quarter turn does not snap into place.
Product information:
The safety quarter turn is of a vibration-proof design.
Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.
Internal Reference:
1012-U2
Product Type:
Quarter turn
Program:
1012
Catalog sheet:
1A-420
Material of the module :
Zinc die
Surface of the module:
nickel-plated
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Type of actuation:
Square 7
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:
22 x 4 mm
GH Mass:
20 mm
Suitable for door thickness from:
1 mm
Suitable for door thicknesses up to:
8 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Quarter turn with simple insert,Safety quarter turn
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
