Compression Latches with insert
Compression latch insert slot with adjustable cam height, Zinc die black powder-coated; 1022-U86
with nut

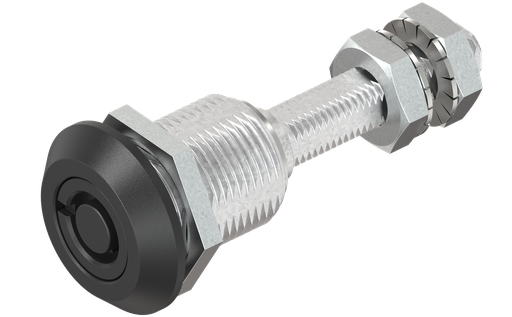

Compression latch with adjustable cam height, tube with marking, Zinc die black powder-coated; 1000-U830
with nut
Compression latch, square 8, Stainless steel AISI 316; 1000-U834-LIPH
with stainless steel nut
Compression latch double bit 3, Stainless steel AISI 316; 1000-U749-01
with stainless steel nut
Compression latch for flush mounting version railway with outer rack, left version, Stainless steel AISI 316; 1000-SU215-LIPH
with stainless steel nut
Compression latch for flush mounting version railway with outer rack, right version, Stainless steel AISI 316; 1000-SU215-REPH
with stainless steel nut
Compression latch version railway with outer rack, left version, Stainless steel AISI 316; 1000-SU215-01LIPH
with stainless steel nut
Compression latch version railway with outer rack, right version, Stainless steel AISI 316; 1000-SU215-01REPH
with stainless steel nut
Compression latch with adjustable cam height, hexagon male SW 11.1 with marking, Zinc die and steel black powder-coated; 1000-SU324
with nut

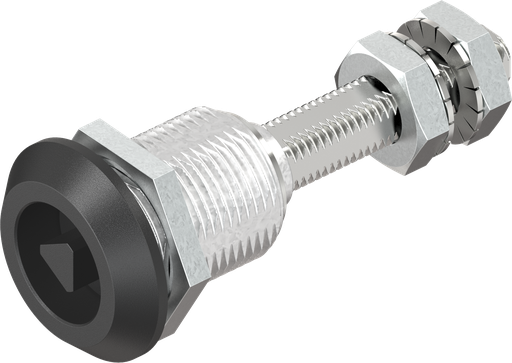

Compression latch with adjustable cam height, triangular 7, Zinc die and steel black powder-coated; 1000-SU724
with nut

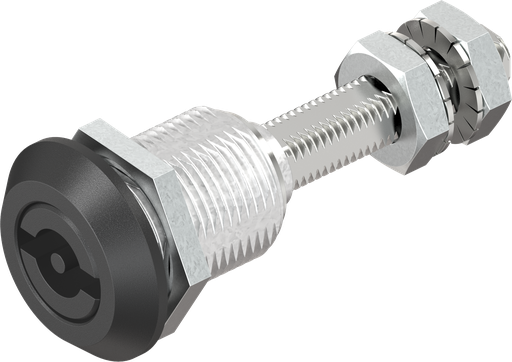

Compression latch with adjustable cam height, double bit 3, Zinc die and steel black powder-coated; 1000-SU730
with nut

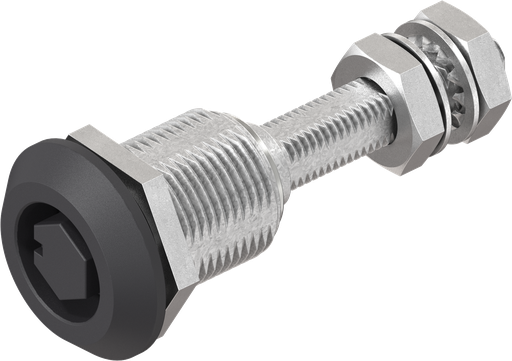

Compression latch with adjustable cam height, hexagon female SW 8 with pin, Zinc die and steel black powder-coated; 1000-SU733
with nut

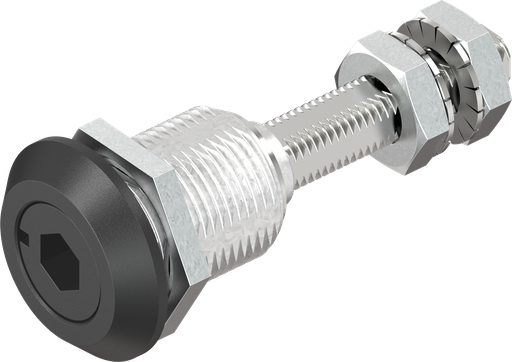

Compression latch with adjustable cam height, hexagon female SW 8, Zinc die and steel black powder-coated; 1000-SU735
with nut

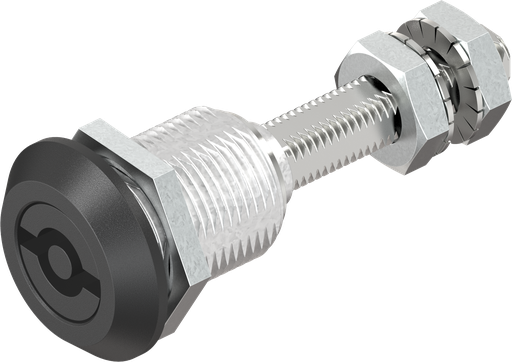

Compression latch with adjustable cam height, double bit 5, Zinc die and steel black powder-coated; 1000-SU752
with nut
Compression latch triangular 7 with marking, Stainless steel AISI 316; 1000-SU785-01
with stainless steel nut
Compression latch with adjustable cam height, version railway with marking, Stainless steel AISI 316; 1000-SU785-02
with stainless steel nut
Compression latch triangular 8 with marking, Stainless steel AISI 316; 1000-SU785-04
with stainless steel nut
Compression latch with adjustable cam height, square 8 with arrow, Zinc die and steel black powder-coated; 1000-SU861
with nut
Compression latch square 7 with marking, left version, Stainless steel AISI 316; 1000-SU925-LIPH
with stainless steel nut
Compression latch square 7 with marking, right version, Stainless steel AISI 316; 1000-SU925-REPH
with stainless steel nut
