Compression latch triangular 6.5, Zinc die black powder-coated
Insert part square 6, Polyamide GF black

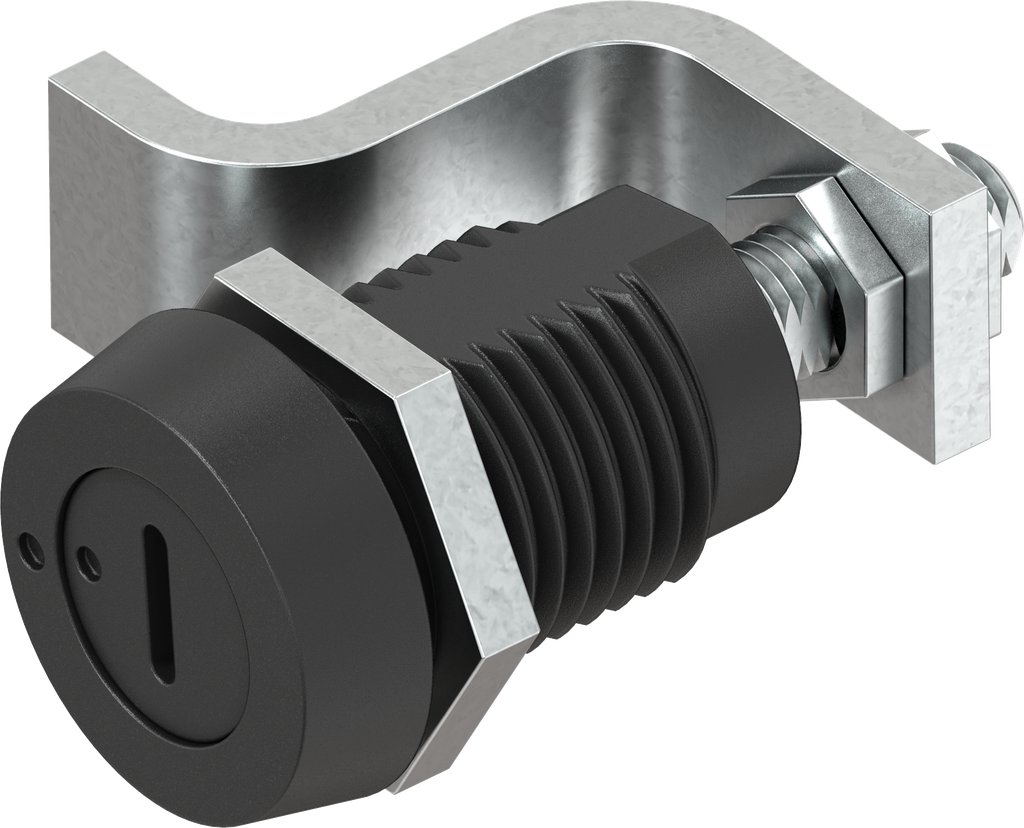

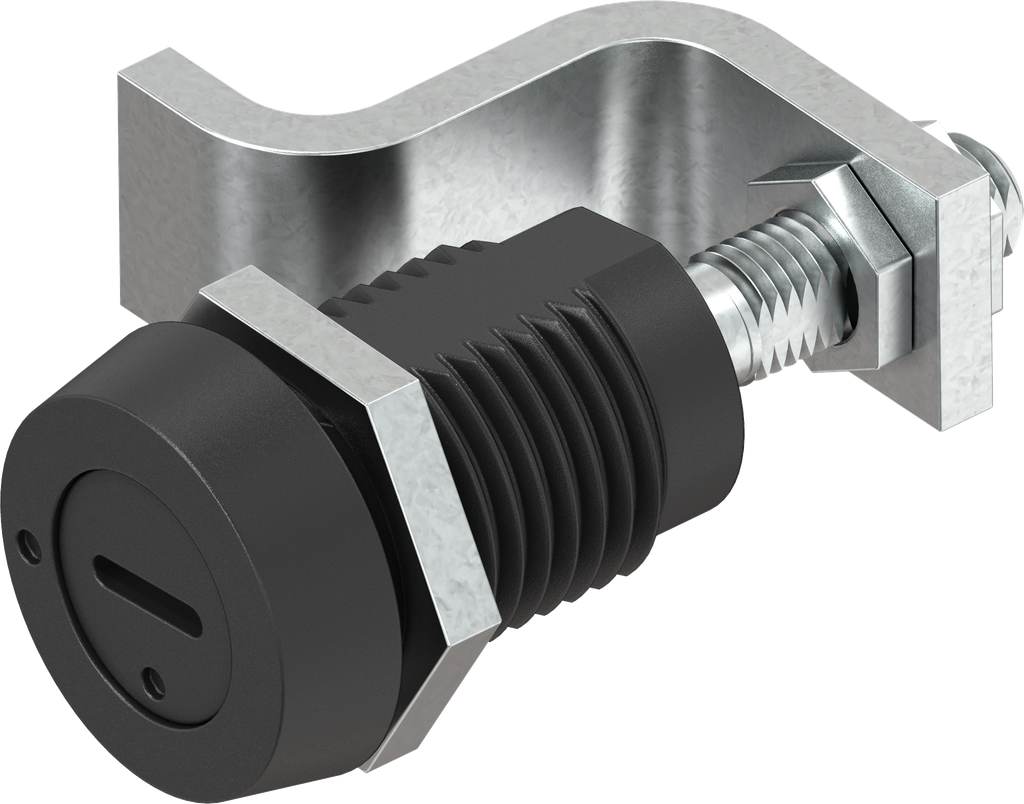

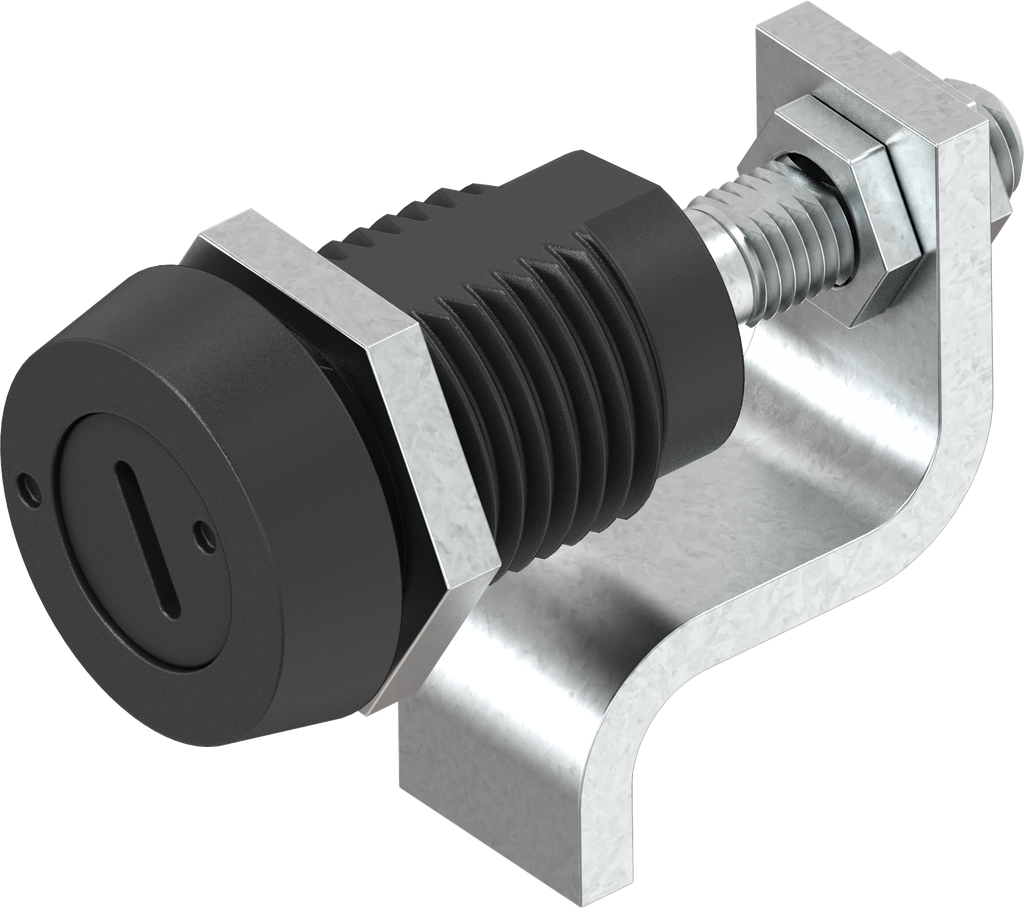

Compression latch insert slot with adjustable cam height, Zinc die black powder-coated; 1022-U86
with nut
Internal Reference:
1022-U86
Product Type:
Quarter turn
Program:
1022
Catalog sheet:
1E-320
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round

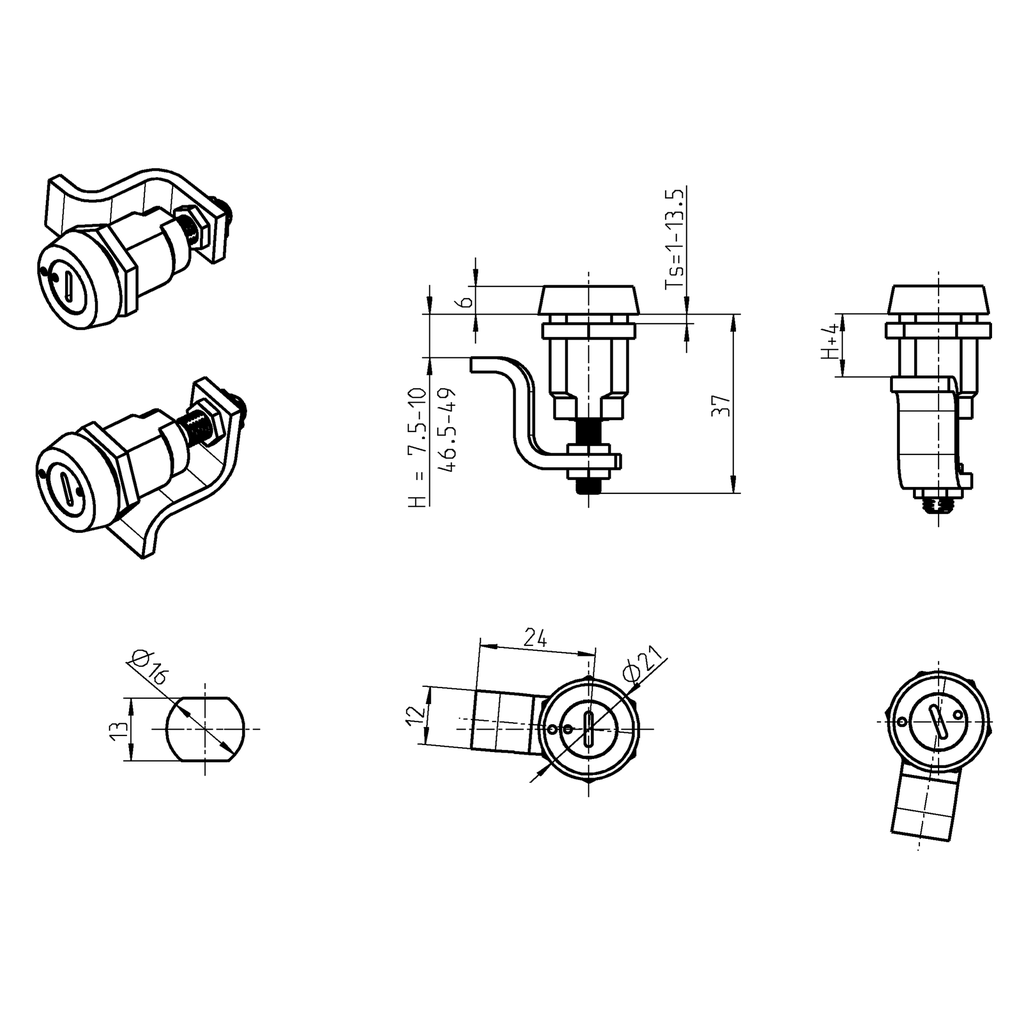

Dimension H max.:
10 mm
Dimension H min.:
7.50 mm
Compression Value :
4 mm
Suitable for door thickness from:
1 mm
Suitable for door thicknesses up to:
13.50 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Compression latch with insert
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
