Detachable hinges without tools

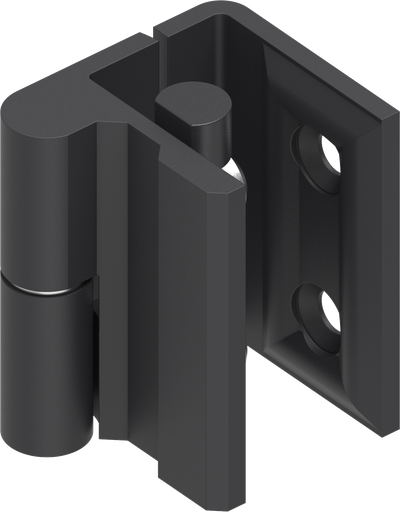

180° Hinge, right version, Zinc die and steel black powder-coated; 1110-U119

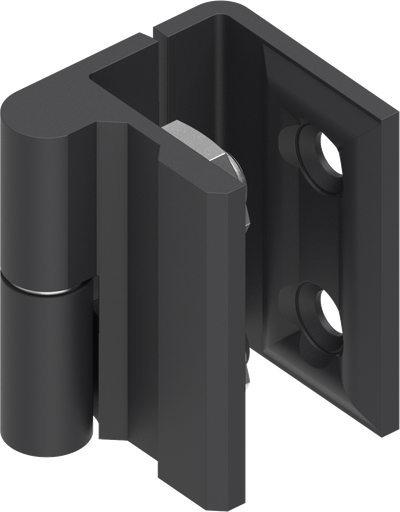

180° Hinge, left version, Zinc die and steel black powder-coated; 1110-U120

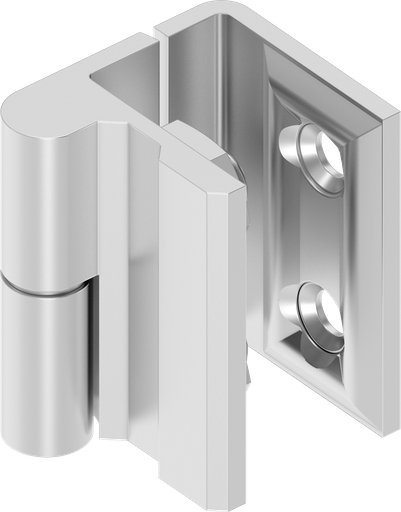

180° Hinge, left version, Stainless steel AISI 316; 1110-U120-PH

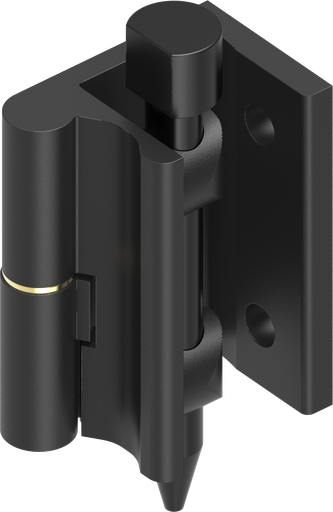

180° Hinge, right version, Zinc die and steel black powder-coated; 1110-U121

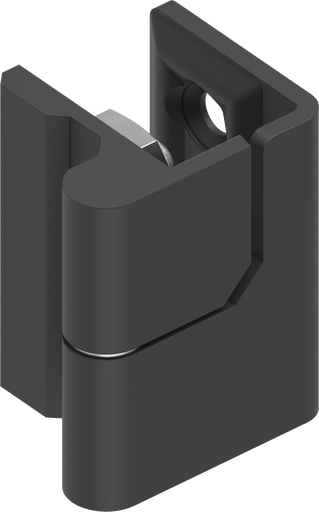

180° Hinge, left version, Zinc die black powder-coated; 1110-U82
90° Concealed hinge, Stainless steel AISI 304; 1006-SU1-PC
90° Concealed hinge, Stainless steel AISI 304; 1006-SU2-PC
90° Concealed hinge, Stainless steel AISI 304; 1006-SU7-PC
Weld-on hinge, Steel raw; 1033-U24
Weld-on hinge, Steel raw; 1033-U60
Weld-on hinge, Steel raw; 1033-U61
Weld-on hinge, Stainless steel AISI 304 raw; 1033-U74
Weld-on hinge, Stainless steel AISI 304 raw; 1033-U75
180° Hinge, left version, Zinc die black powder-coated; 1056-U54
Dimension 40 x 40 mm
Latch-Hinge with pressure relief, keyed 9081, Polyamide GF black; 1091-U151
Latch-Hinge with pressure relief, keyed 9081, keyed different, Polyamide GF black; 1091-U155
Latch-Hinge without pressure relief, round cylinder keyed 9081, Polyamide GF black; 1091-U194
Prepared for emergency opening
Latch-Hinge with pressure relief, round cylinder, keyed 9081, Polyamide GF black; 1091-U195
Prepared for emergency opening
Latch-Hinge with pressure relief, round cylinder, keyed different, Polyamide GF black; 1091-U199
Prepared for emergency opening
180° Hinge, left version, Zinc die and steel black powder-coated; 1110-U118
