180° Hinge, right version, Zinc die and steel black powder-coated
180° Hinge, right version, Zinc die and steel black powder-coated
180° Hinge, left version, Stainless steel AISI 316
180° Hinge, left version, Stainless steel AISI 316

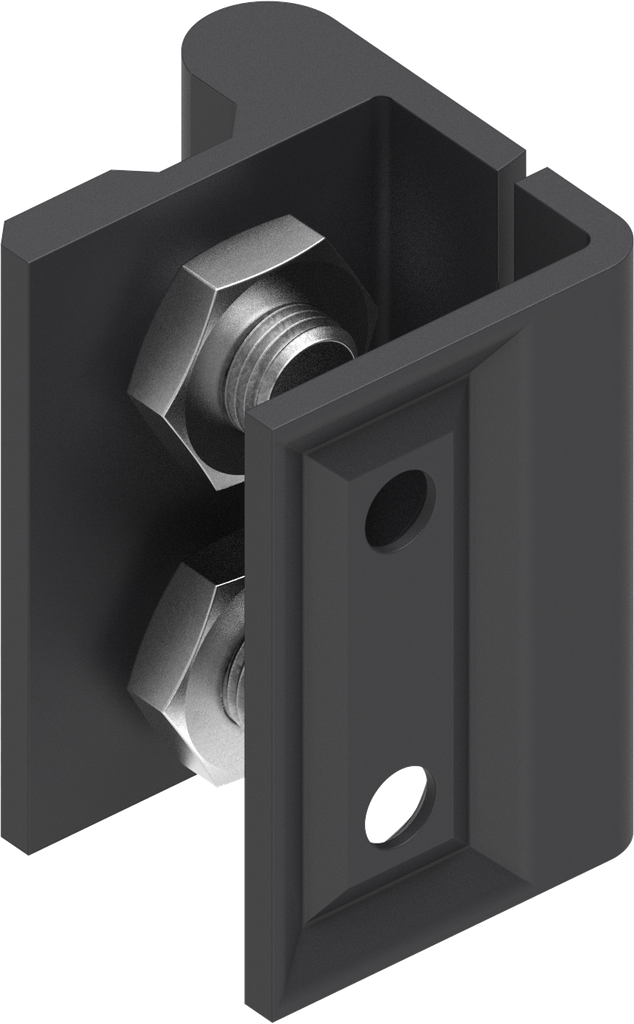

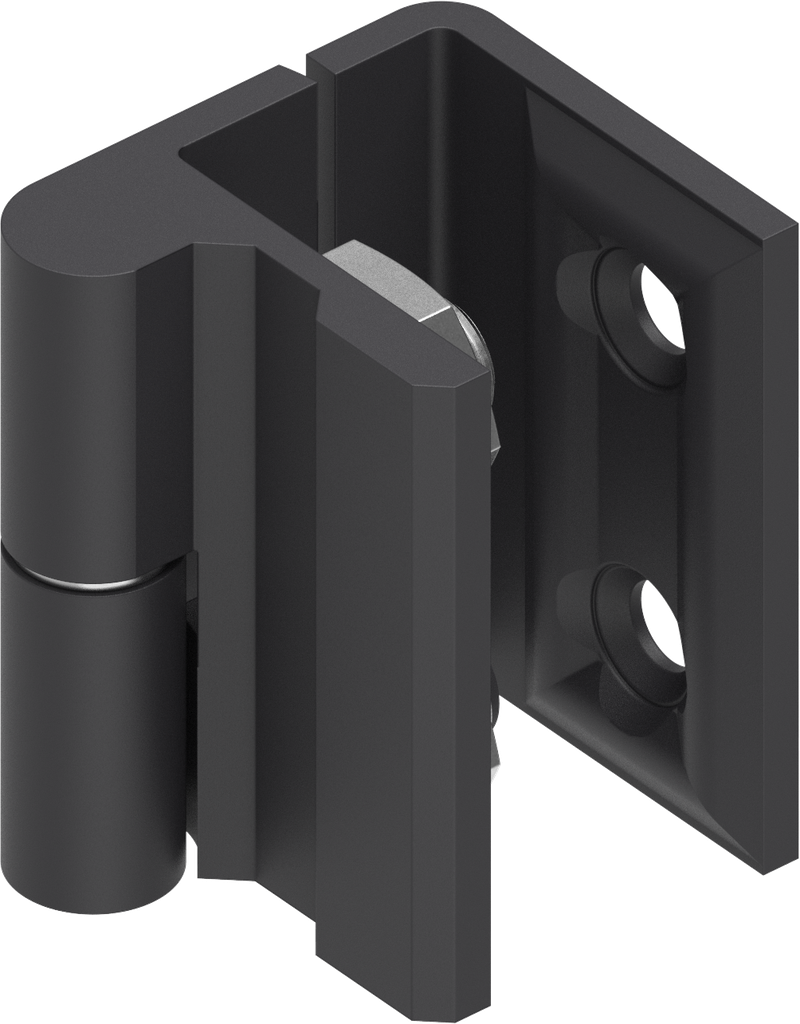

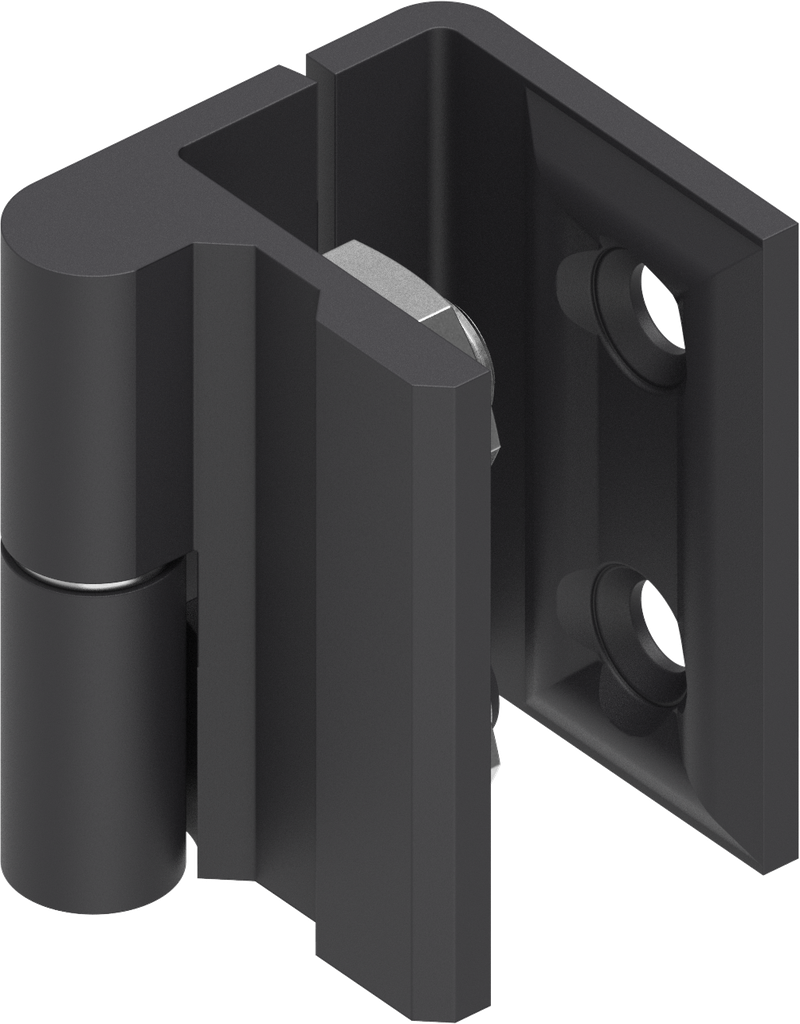

180° Hinge, left version, Zinc die and steel black powder-coated; 1110-U120

https://www.emka.com/products/1110-u120 https://www.emka.com/web/image/product.template/64230/image_1920?unique=57ee054

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left
    Contact Us
    Internal Reference: 1110-U120
    Product Type: Hinge
    Program: 1110

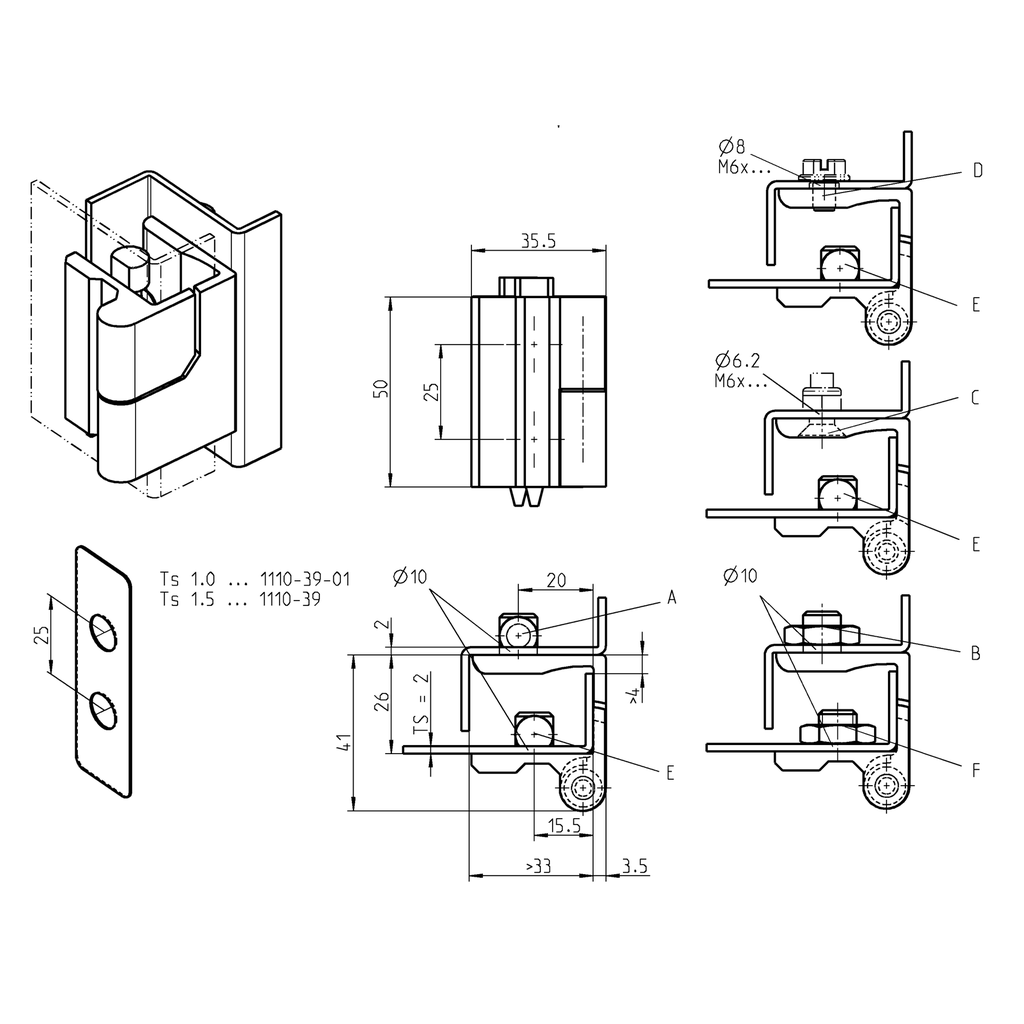

    Catalog sheet: 4A-210
    Material of the module : Zinc die and steel
    Surface of the module: black powder-coated
    Dimension A, Variable: 26 mm
    Execution: C+F
    Detachable: without tools
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from outside, for countersunk screw small head M6
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Countersinking for standard countersunk screws: Countersink for countersunk screw M6x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Door position: prominent
    Door Version : Left
    Door thickness: 2 mm
    Captive pen: Yes
    No Specifications
    View All Products
    2D nut
    Here you can find the product data sheets and CAD files of this product
