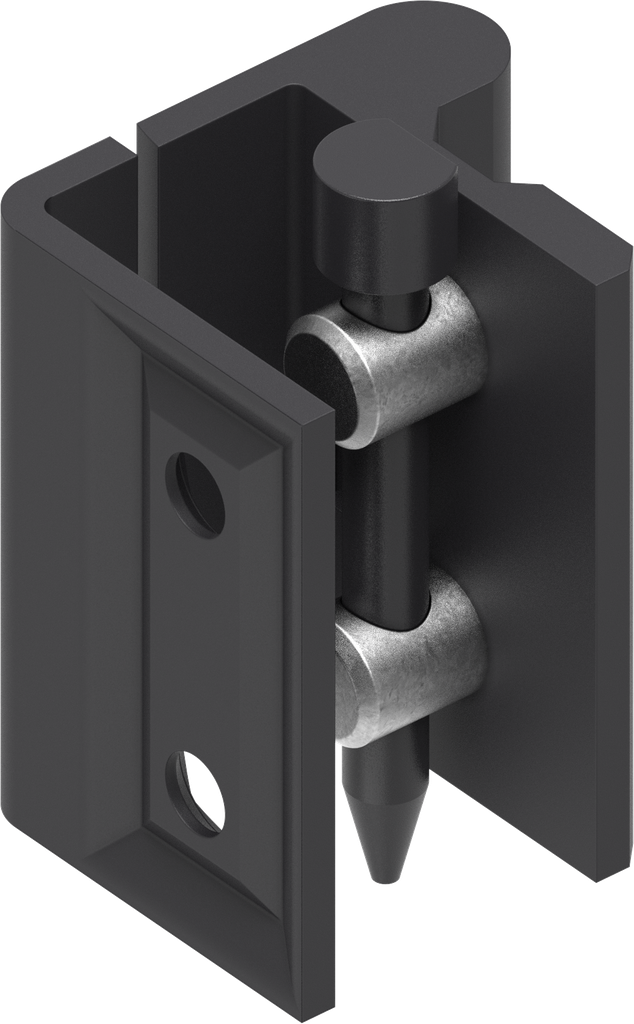

180° Hinge, Zinc die and steel black powder-coated
180° Hinge, Zinc die and steel black powder-coated
180° Hinge, left version, Zinc die and steel black powder-coated
180° Hinge, left version, Zinc die and steel black powder-coated

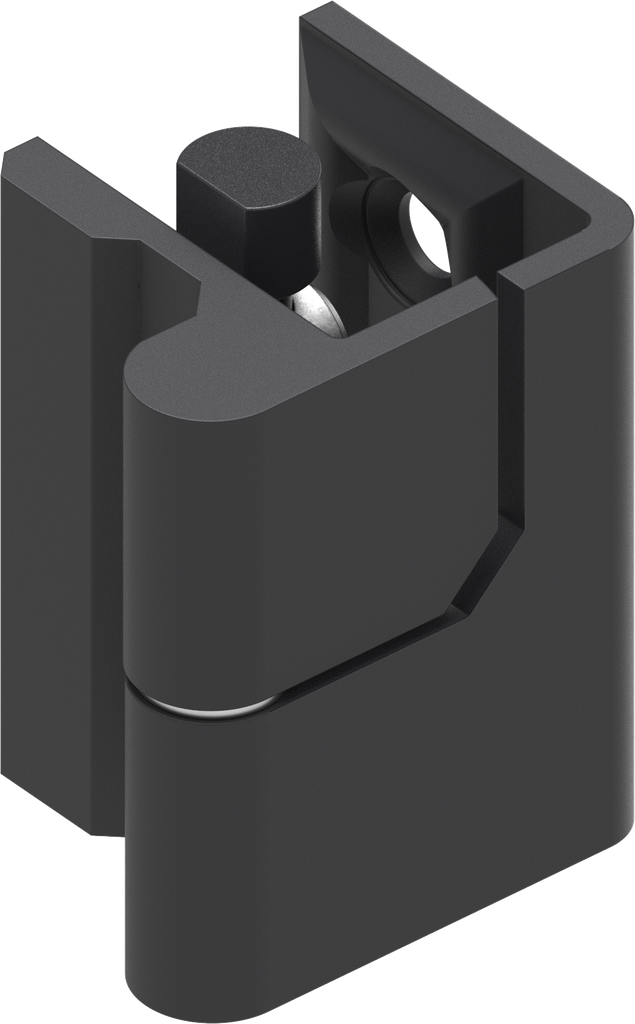

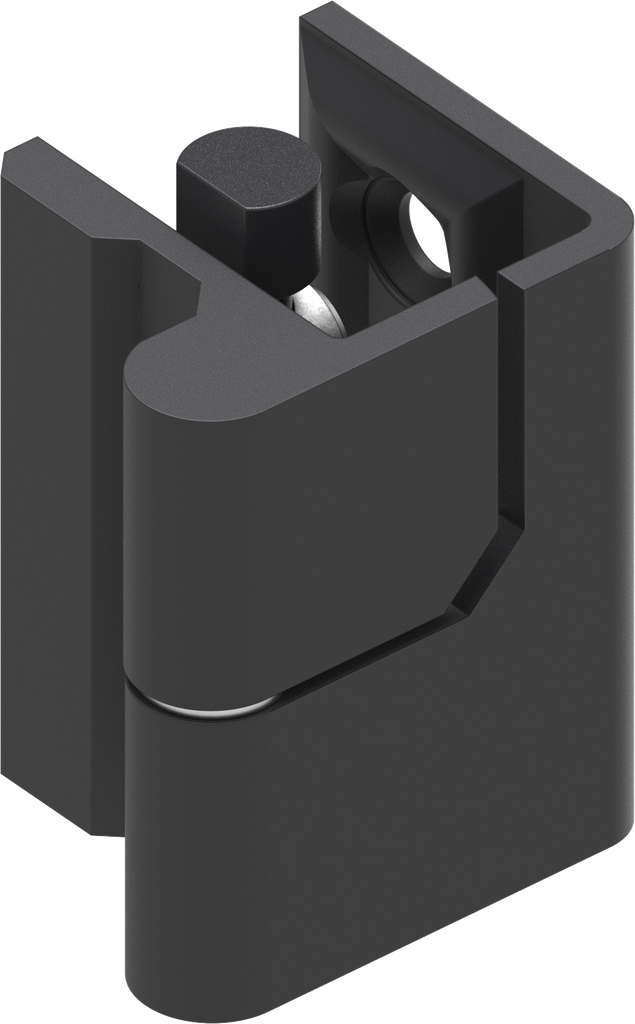

180° Hinge, right version, Zinc die and steel black powder-coated; 1110-U119

https://www.emka.com/products/1110-u119 https://www.emka.com/web/image/product.template/64229/image_1920?unique=5b38851

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Right
    Contact Us
    Internal Reference: 1110-U119
    Product Type: Hinge
    Program: 1110

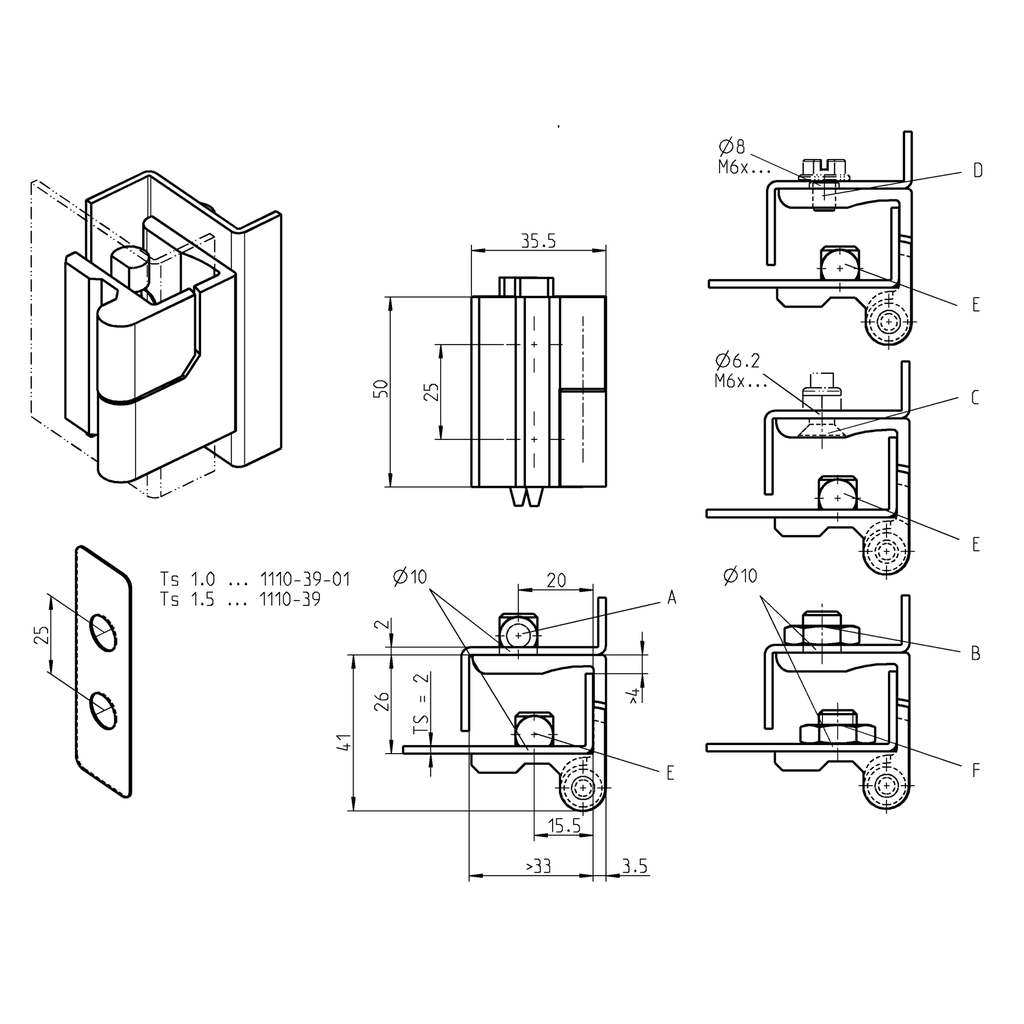

    Catalog sheet: 4A-210
    Material of the module : Zinc die and steel
    Surface of the module: black powder-coated
    Dimension A, Variable: 26 mm
    Execution: C+E
    Detachable: without tools
    Type of attachment to the frame: clamp-on / clip fix
    Type of fastening on the door: screw-on from outside, for countersunk screw small head M6
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Countersinking for standard countersunk screws: Countersink for countersunk screw M6x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Door position: prominent
    Door Version : Right
    Door thickness: 2 mm
    Captive pen: Yes
