90° Concealed hinge, Stainless steel AISI 304
90° Concealed hinge, Stainless steel AISI 304

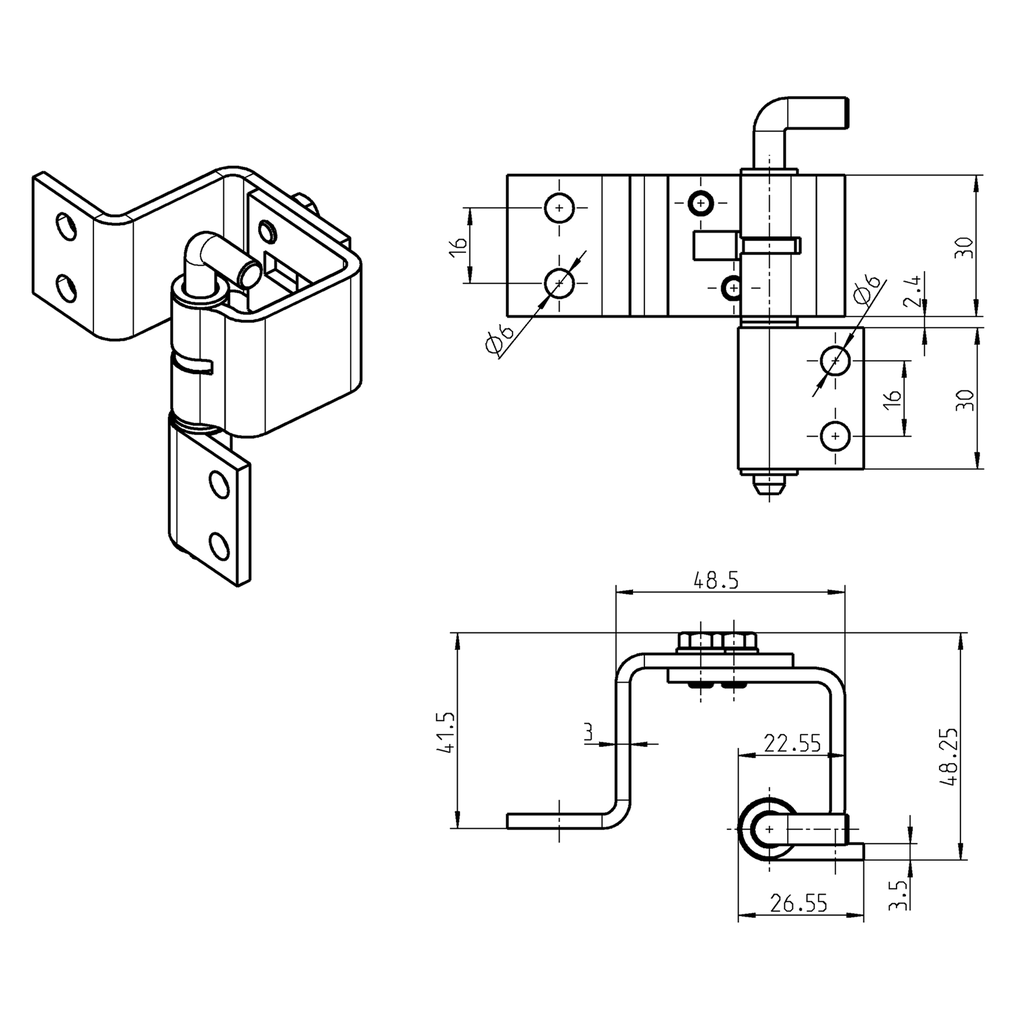

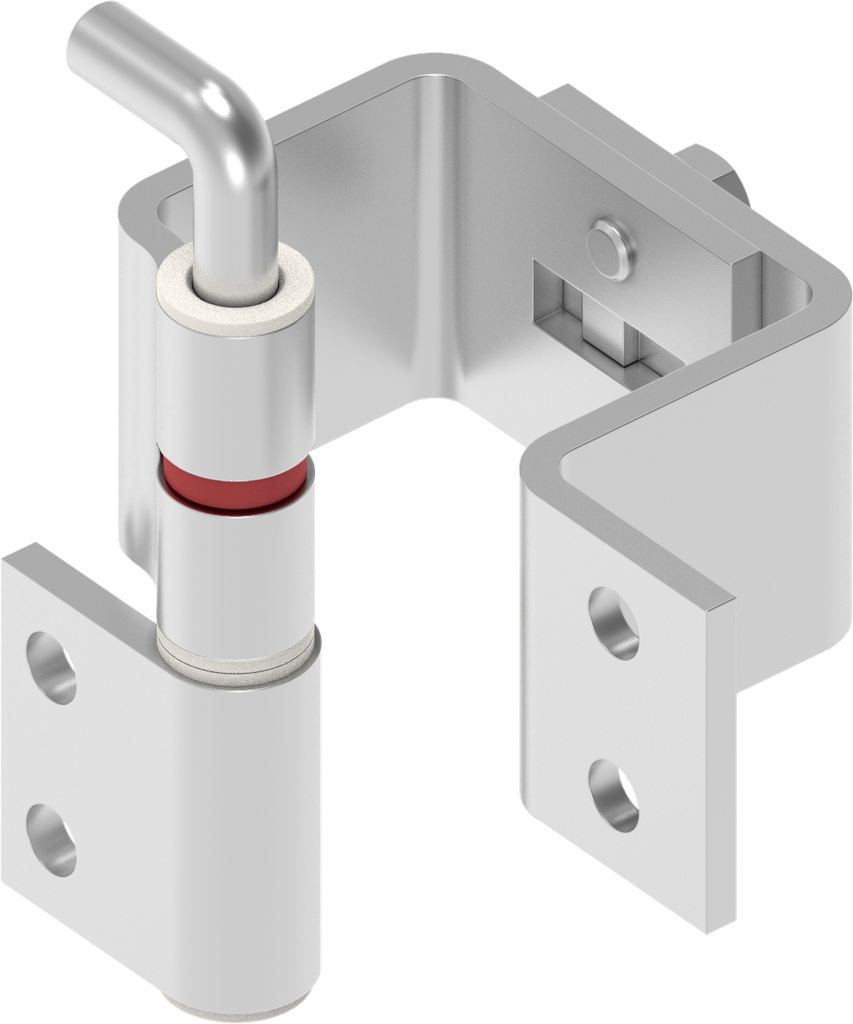

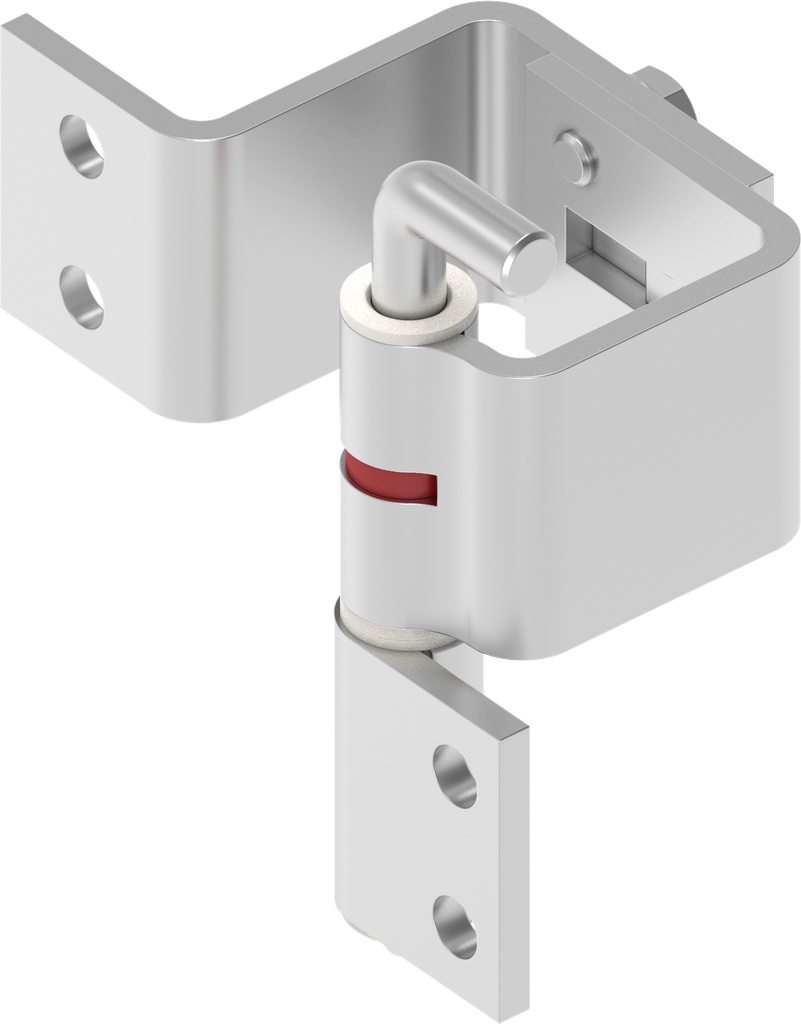

90° Concealed hinge, Stainless steel AISI 304; 1006-SU1-PC

https://www.emka.com/products/1006-su1-pc https://www.emka.com/web/image/product.template/207157/image_1920?unique=0c132bb

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right
    Contact Us
    Internal Reference: 1006-SU1-PC
    Product Type: Hinge
    Program: 1006
    Material of the module : Stainless steel AISI 304
    Detachable: without tools
    Max. opening angle due to installation: Yes
    Max Opening Angle: 90°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Door position: concealed
    Door Version : Left,Right
    Captive pen: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
