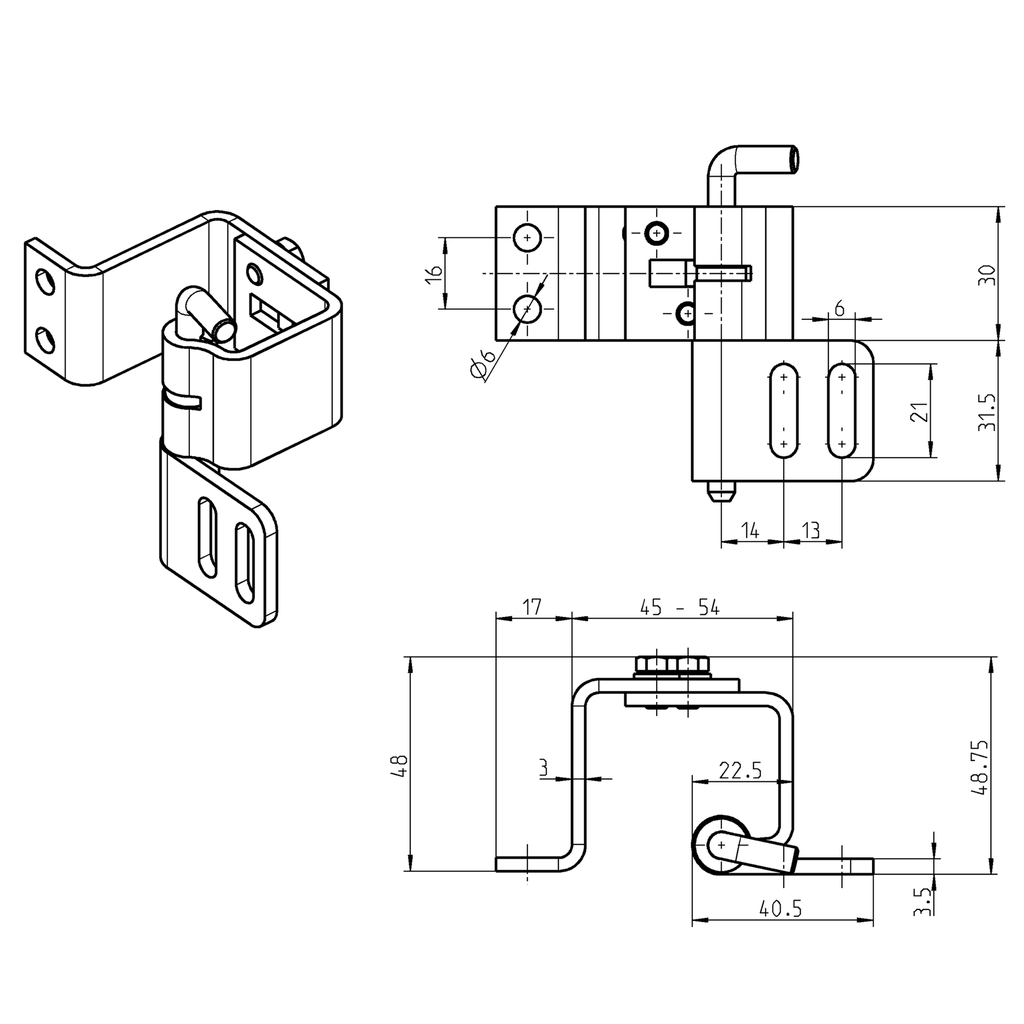

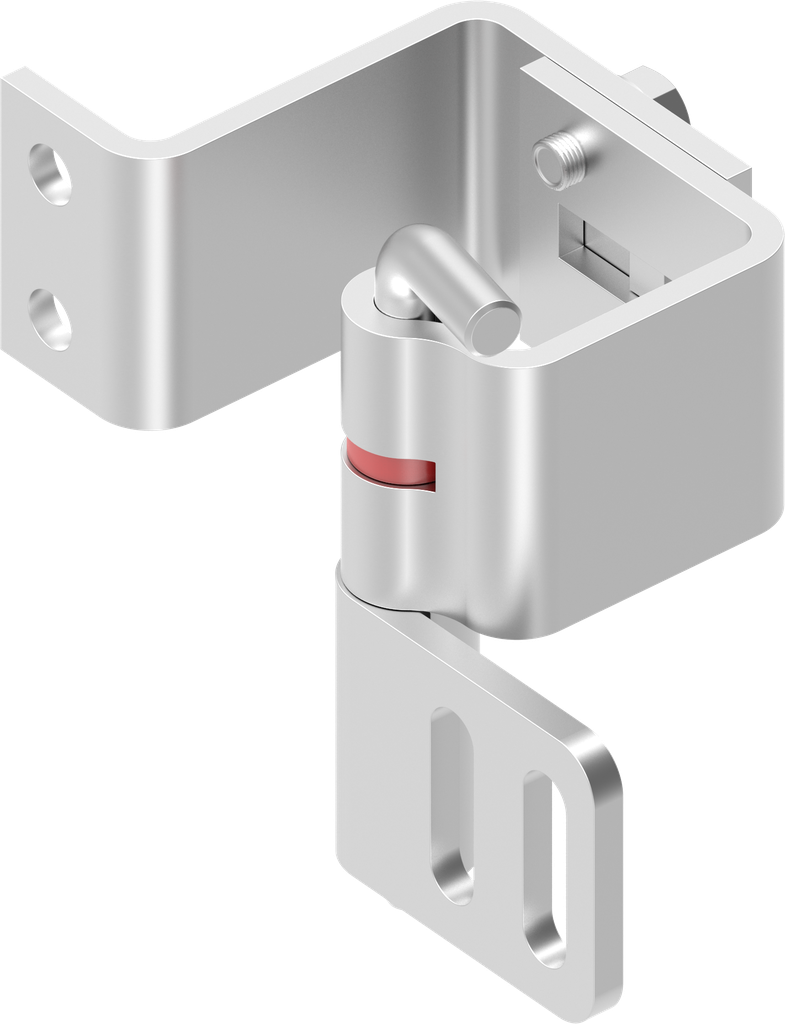

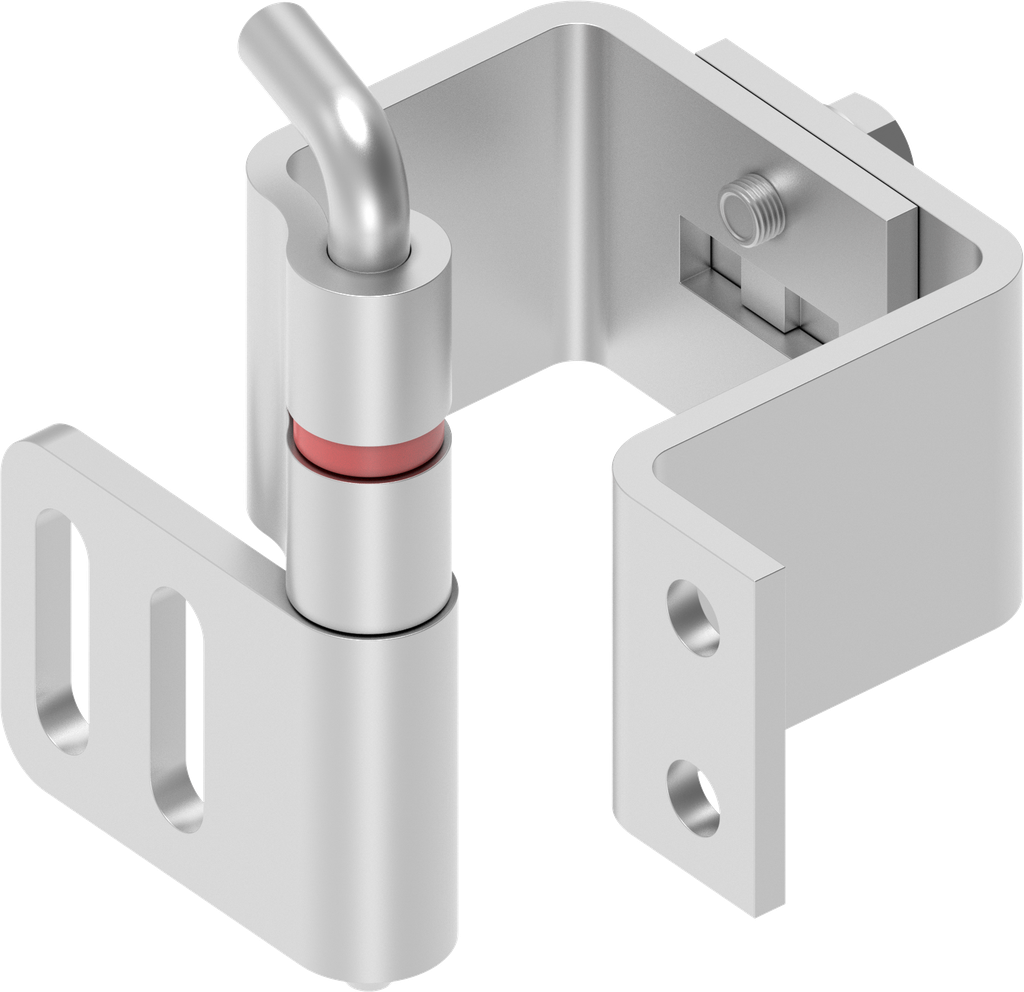

90° Concealed hinge, Stainless steel AISI 304; 1006-SU7-PC

https://www.emka.com/products/1006-su7-pc https://www.emka.com/web/image/product.template/207164/image_1920?unique=7edcc5d

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right
    Contact Us
    Internal Reference: 1006-SU7-PC
    Product Type: Hinge
    Program: 1006
    Material of the module : Stainless steel AISI 304
    Detachable: without tools
    Adjustable : Height adjustment
    Max. opening angle due to installation: Yes
    Max Opening Angle: 90°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Door position: concealed
    Door Version : Left,Right
    Captive pen: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Product data sheet
    CAD file | 1006-SU7-PC_igs
    CAD file | 1006-SU7-PC_stp
