Swinghandles inside the sealing

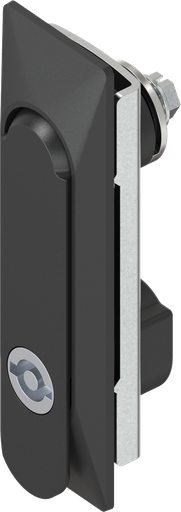

Swinghandle 1150 with insert double bit 3, Polyamide and zinc die black powder-coated; 1150-U25-03

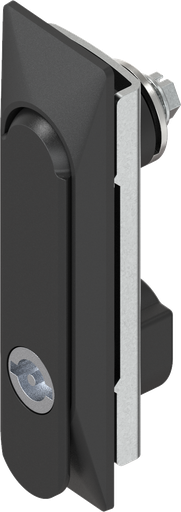

Swinghandle 1150 with insert double bit 5, Polyamide and zinc die black powder-coated; 1150-U26-03

Swinghandle 1150 with insert triangular 6.5 CNOMO, Polyamide GF black; 1150-U31-02

Swinghandle 1151 for locking set, Zinc die black powder-coated; 1151-U3

for rod control

Cap with lateral bulging, Stainless steel AISI 316; 1154-05-PH

for swinghandle 1154 with RC2 for profile half cylinder 40 mm (A = 30 mm)

Swinghandle 1154 for profile half cylinder 45 mm (A = 35 mm), Zinc die black powder-coated; 1154-U3

Swinghandle 1154 with RC2 for profile half cylinder 40 mm (A = 30 mm), Stainless steel AISI 316; 1154-U5

Swinghandle 1154 with electromagnetic release and emergency opening, keyed EH 333, Zinc die black powder-coated; 1154-U6

Swinghandle 1154 with electromagnetic release and emergency opening, keyed different, Zinc die black powder-coated; 1154-U6-2V

Swinghandle 1154 with electromagnetic release and emergency opening, keyed different, Zinc die black powder-coated; 1154-U6-3V

Swinghandle 1154 with electromagnetic release and emergency opening, keyed different, Zinc die black powder-coated; 1154-U6-5V

Swinghandle with rods, keyed different, Polyamide and zinc die black powder-coated; 1160-U2

Swinghandle with rods with insert double bit 3, Polyamide and zinc die black powder-coated; 1160-U14

Swinghandle with rods with insert double bit 3, Zinc die black powder-coated; 1160-U25

Swinghandle with rods with insert double bit 5, Zinc die black powder-coated; 1160-U26

Swinghandle with rods with push button, Polyamide and zinc die black powder-coated; 1160-U35

Swinghandle with rods with push button, Zinc die black powder-coated; 1160-U36

Swinghandle for rod control, keyed EK 333, Polyamide and zinc die black powder-coated; 1160-U201

Swinghandle for rod control, keyed different, Polyamide and zinc die black powder-coated; 1160-U202

Swinghandle for rod control, keyed EK 333, Zinc die black powder-coated; 1160-U203
