Blind plug, Zinc die black powder-coated
Blind plug, Zinc die black powder-coated
Blind plug, Polyamide black
Blind plug, Polyamide black

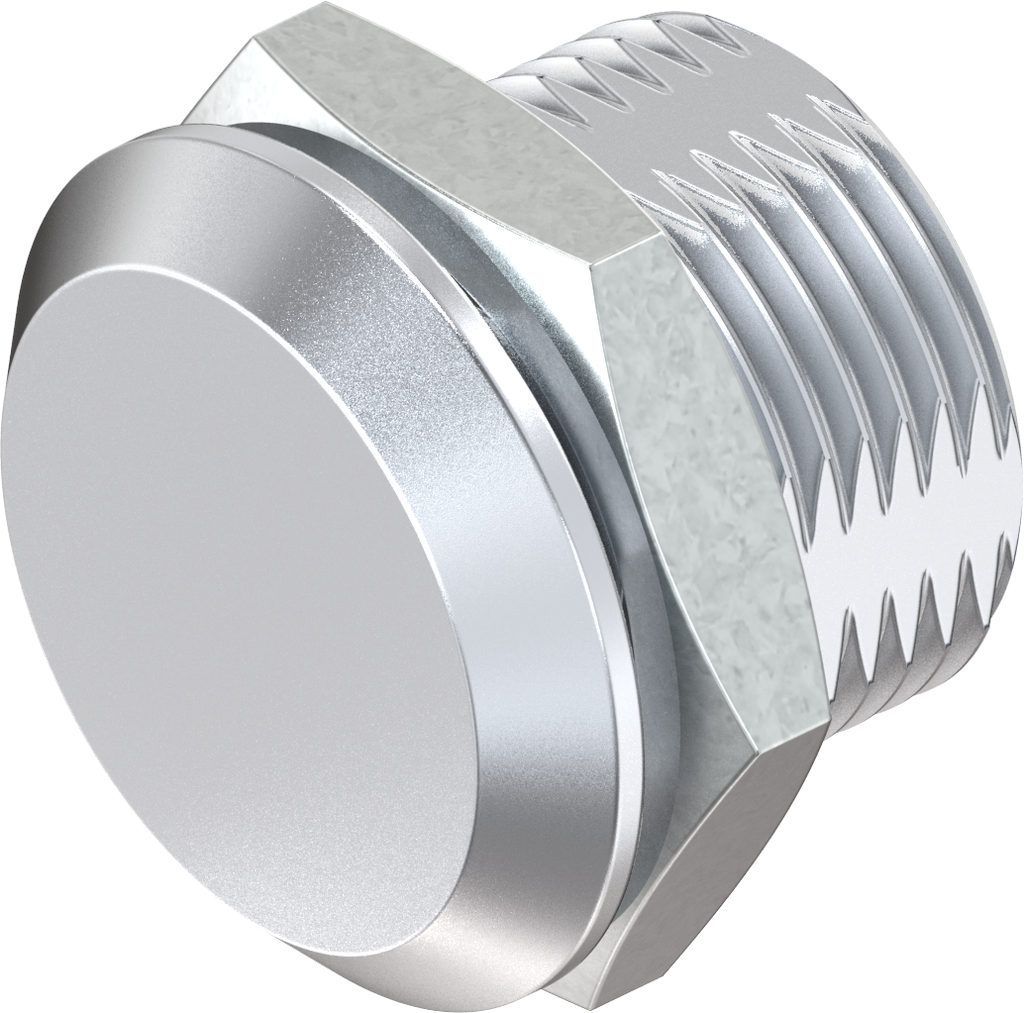

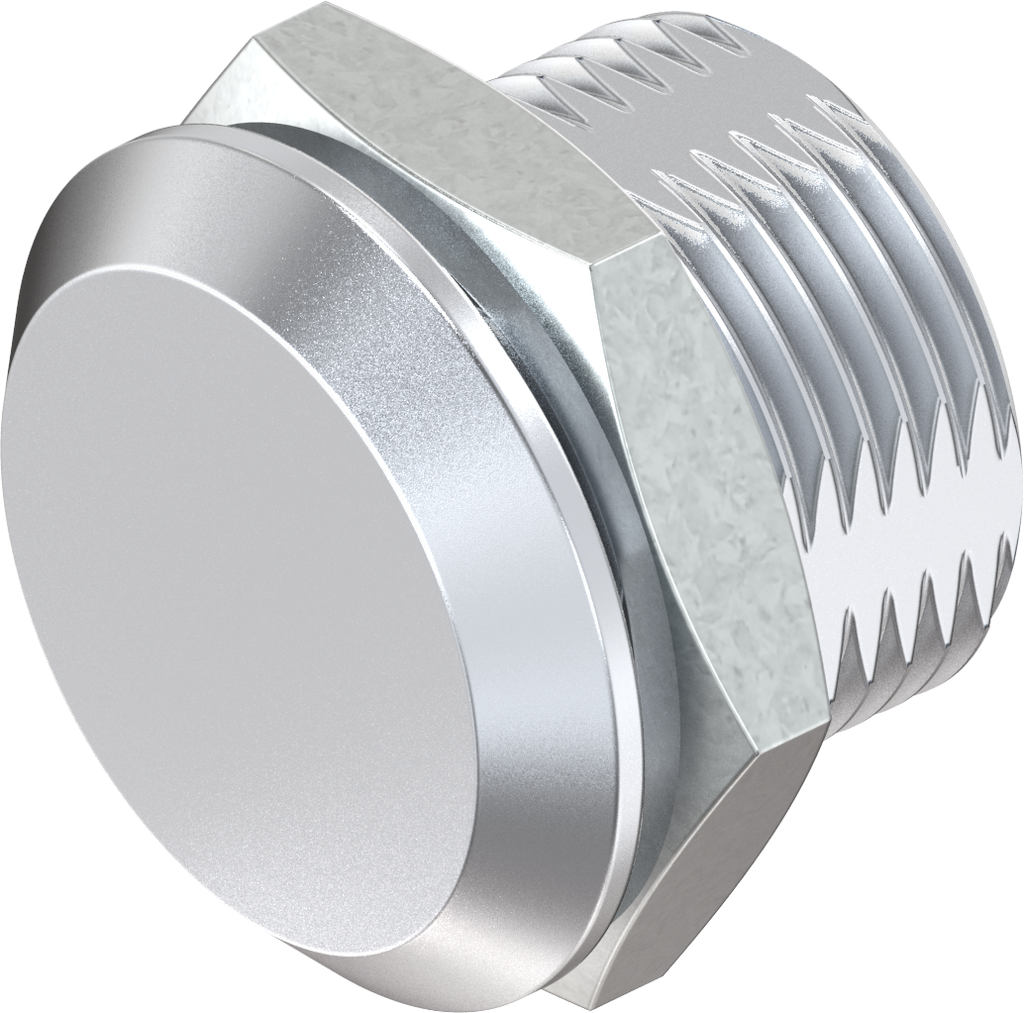

Blind plug, Zinc die chrome-plated; 1000-U934

https://www.emka.com/products/1000-u934 https://www.emka.com/web/image/product.template/205970/image_1920?unique=49f81f5

screw-on

    This combination does not exist.

    Protection class IP 50
    Contact Us
    Internal Reference: 1000-U934
    Product Type: Housing
    Program: 1000
    Catalog sheet: 1B-940
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Fixing type of housing : nut fixing
    Housing Head Shape: Round

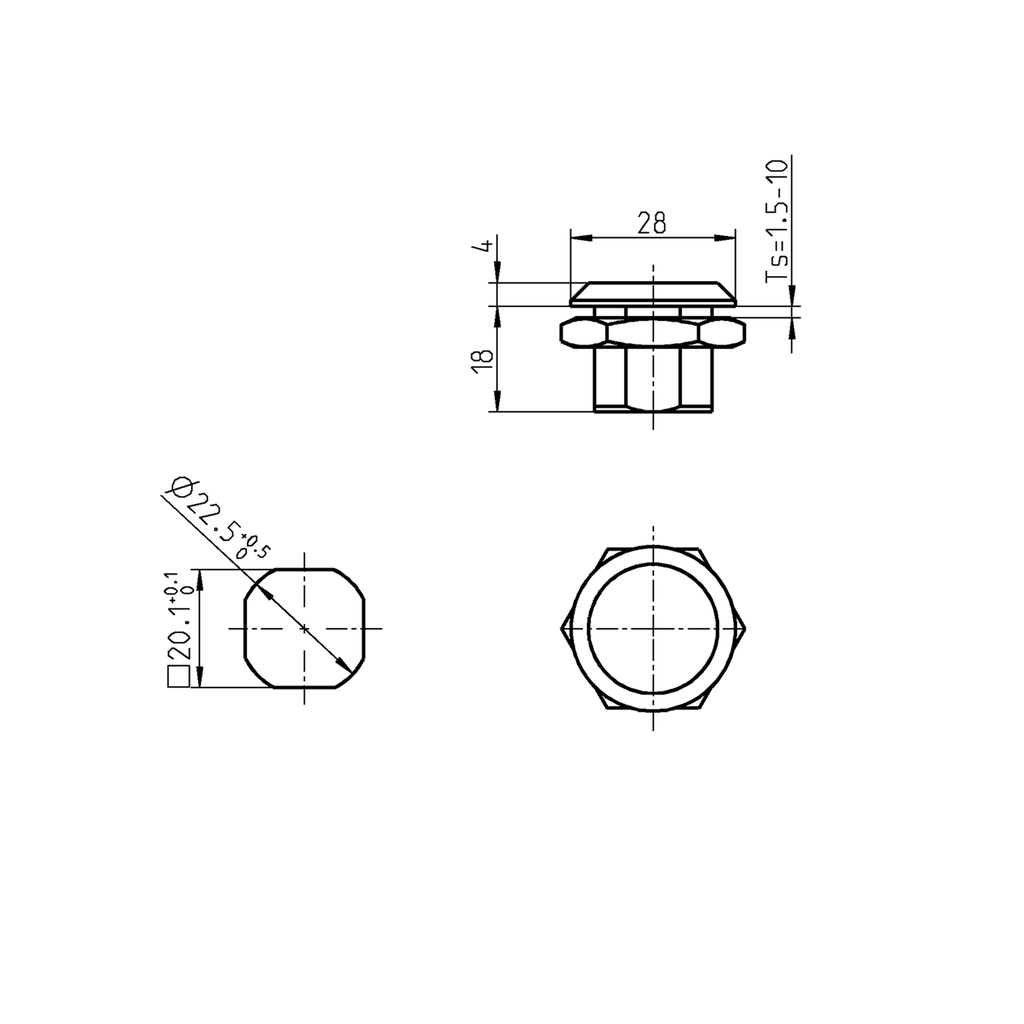

    Housing Head Size: 28 x 4 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 10 mm
    Quarter turn types: Blind plug
    No Specifications
    View All Products
    O-ring and flat seal
    Here you can find the product data sheets and CAD files of this product
