Cylinder quarter turn, right hand version with 2 keys, Brass and zinc die chrome-plated
Cylinder quarter turn, right hand version with 2 keys, Brass and zinc die chrome-plated
Cylinder quarter turn, right hand version with 2 keys, Zinc die chrome-plated
Cylinder quarter turn, right hand version with 2 keys, Zinc die chrome-plated

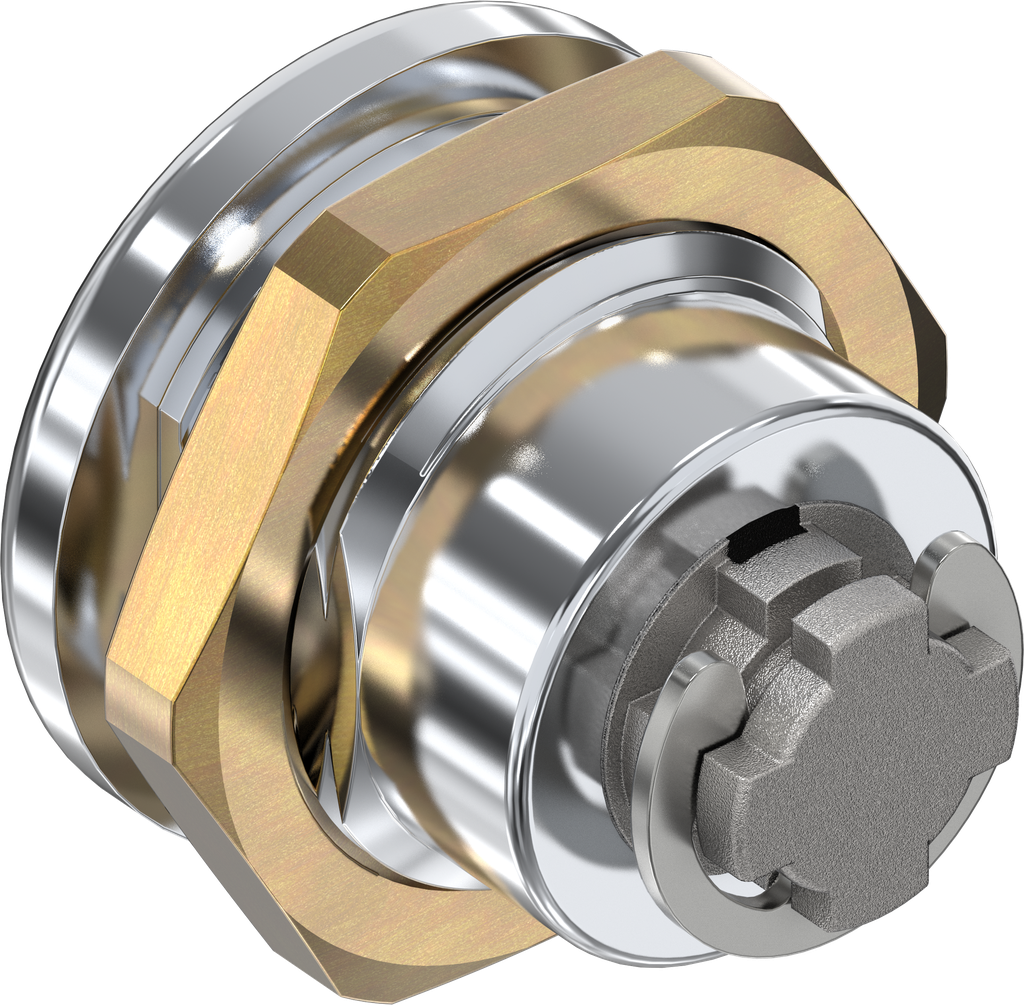

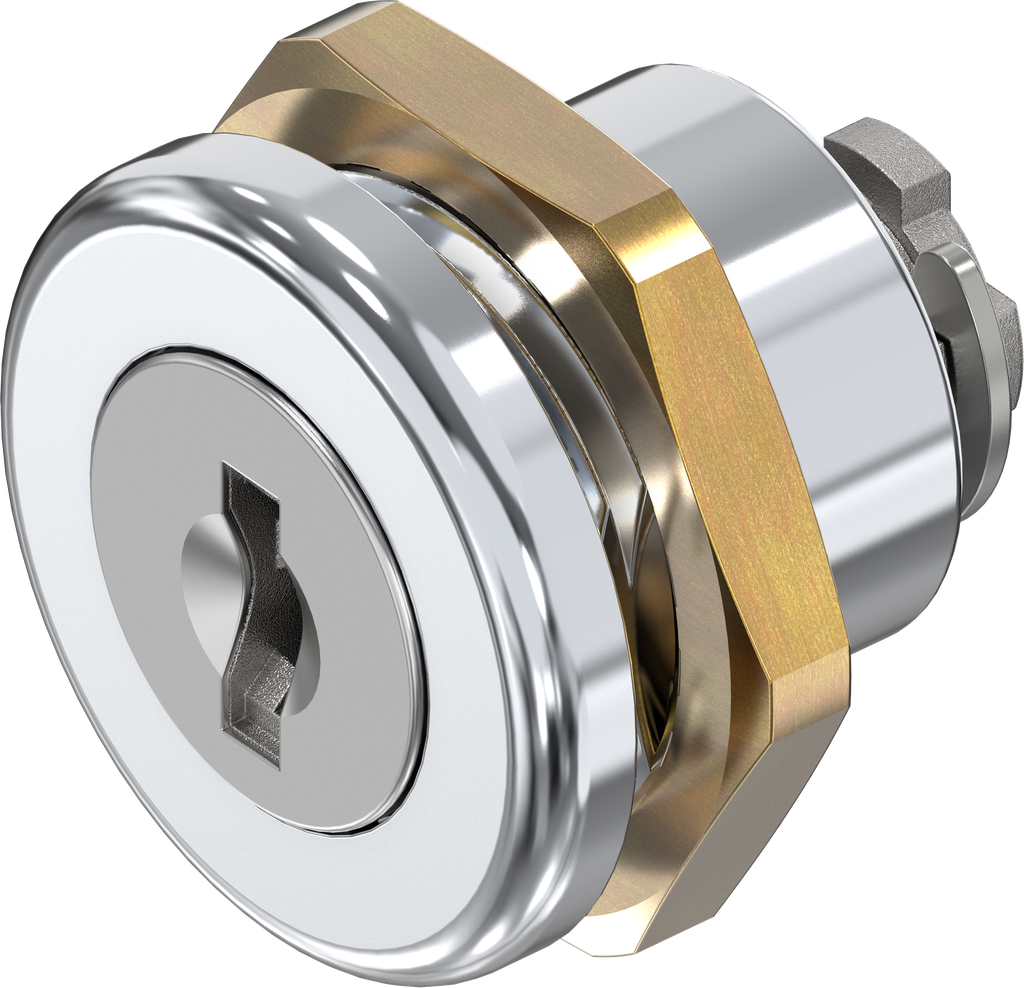

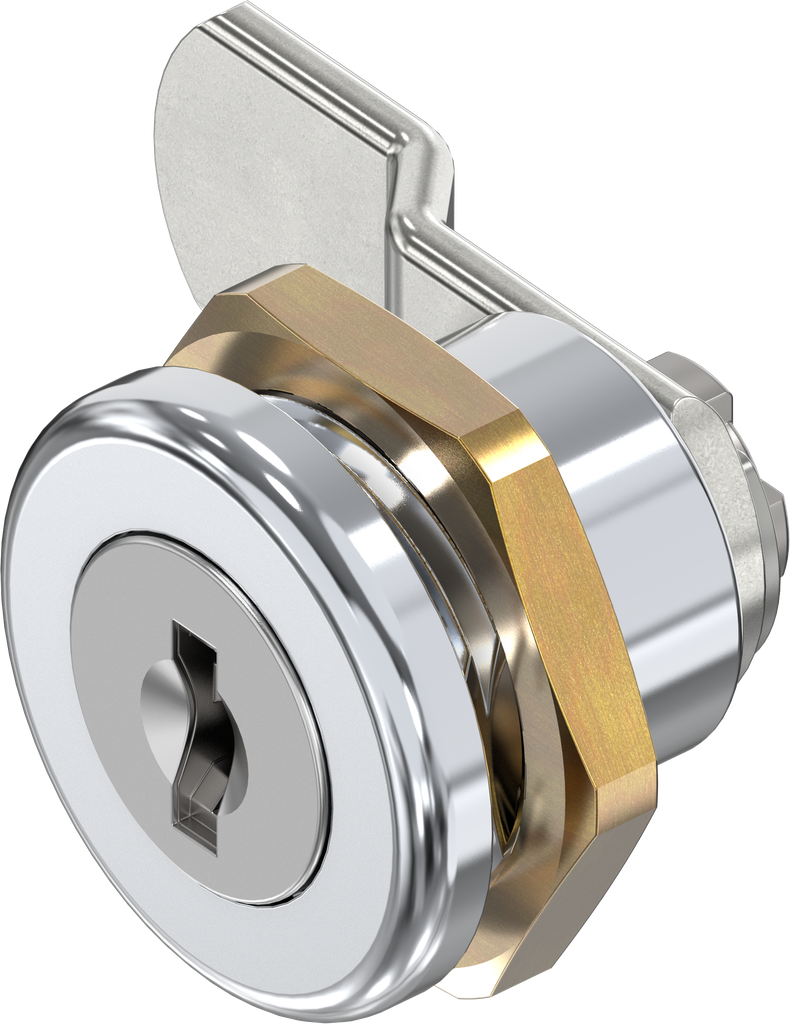

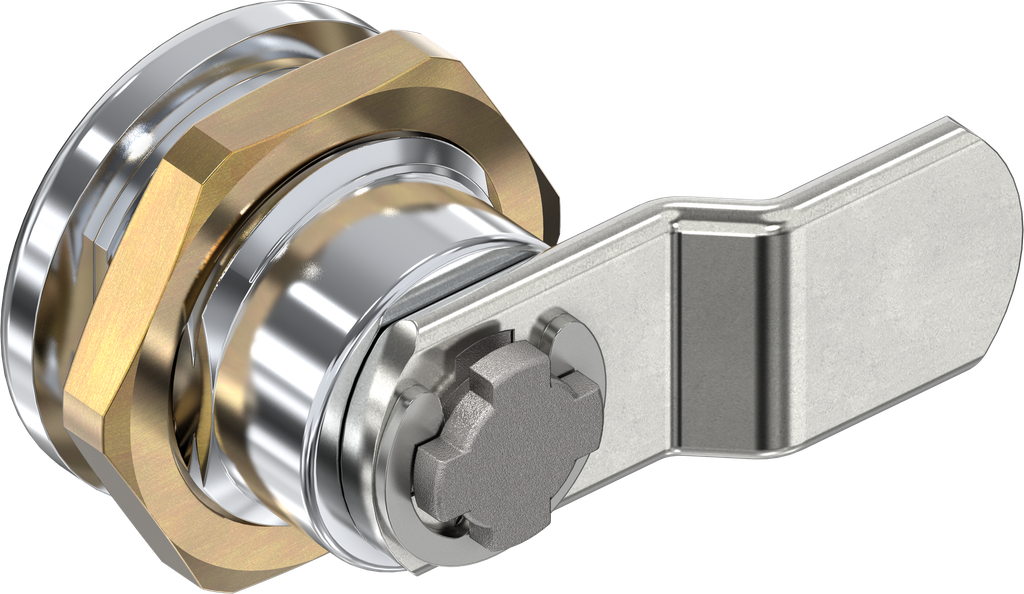

Cylinder quarter turn, right hand version with 2 keys, Brass and zinc die chrome-plated; 7190-A197B-01

https://www.emka.com/products/7190-a197b-01 https://www.emka.com/web/image/product.template/357373/image_1920?unique=a22ddeb

with nut

    This combination does not exist.

    Inside the sealing Right
    Internal Reference: 7190-A197B-01
    Barcode: 7190-A0197B-0000001
    Product Type: Quarter turn
    Material of the module : Brass and zinc die
    Surface of the module: chrome-plated
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 22 x 3 mm
    GH Mass: 13.50 mm
    Locking set: Round cylinder
    Door Version : Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert
