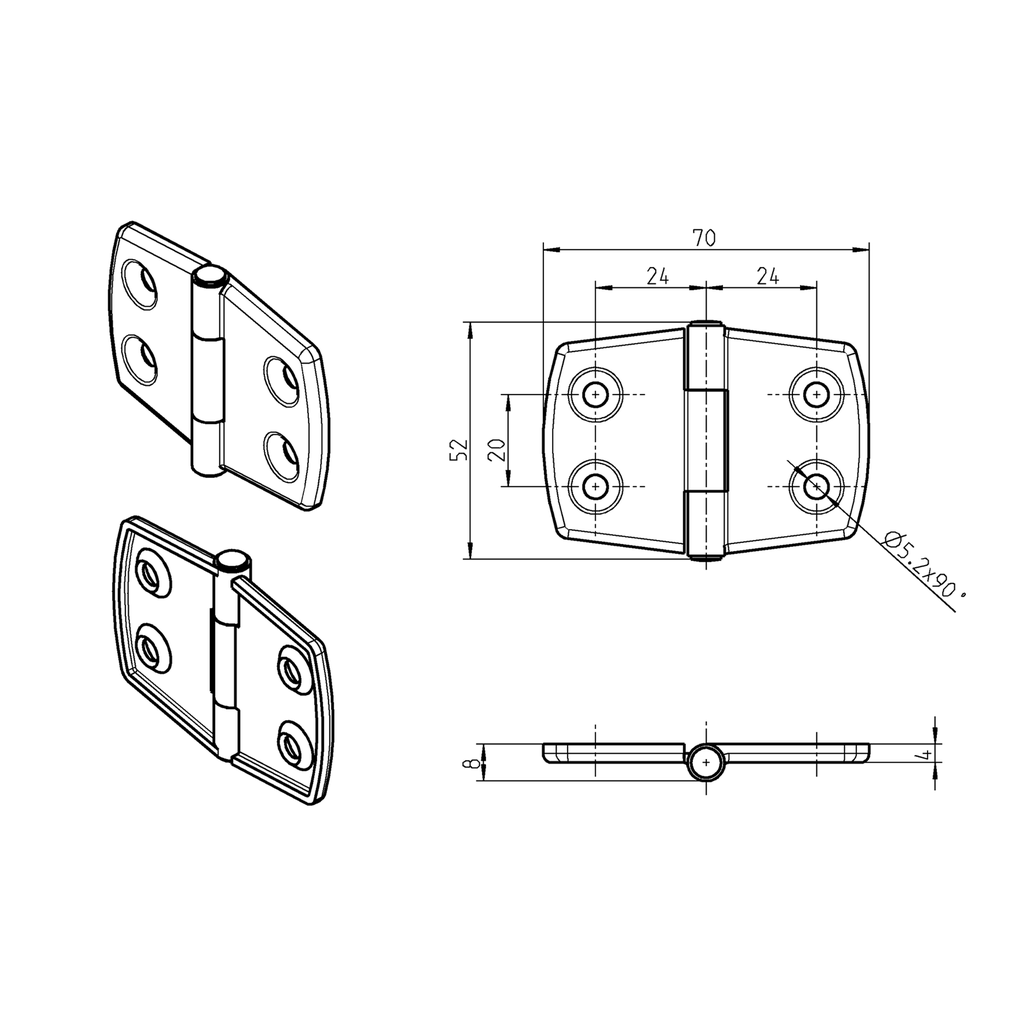

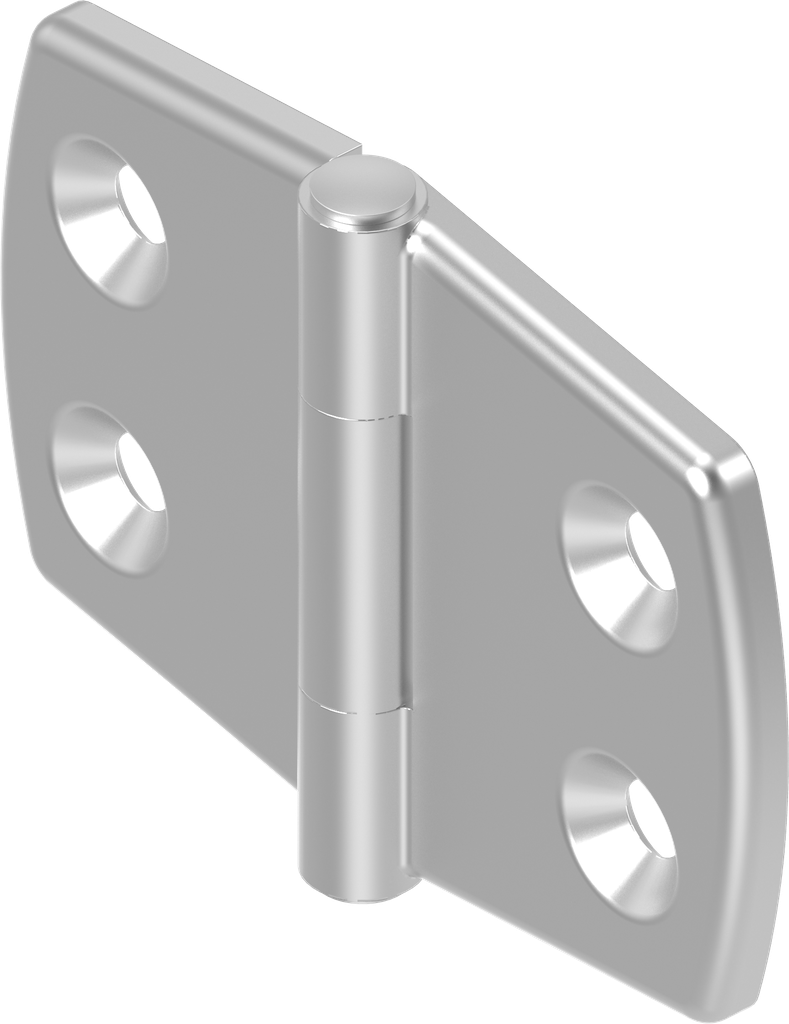

180° Hinge, Stainless steel AISI 316 polished; 6020-U1098-PP

https://www.emka.com/products/6020-u1098-pp https://www.emka.com/web/image/product.template/65892/image_1920?unique=5ef0ea8

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right
    Contact Us
    Internal Reference: 6020-U1098-PP
    Product Type: Hinge
    Program: 6020
    Catalog sheet: 4B-220
    Material of the module : Stainless steel AISI 316
    Surface of the module: polished
    Door return variable: Yes
    Type of attachment to the frame: screw-on from outside
    Type of fastening on the door: screw-on from outside
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Countersinking for standard countersunk screws: Countersink for countersunk screw M5x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Door position: concealed
    Door Version : Left,Right
    Captive pen: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 4B-220
    Product data sheet
    CAD file | 6020-U1098-PP_igs
    CAD file | 6020-U1098-PP_stp
