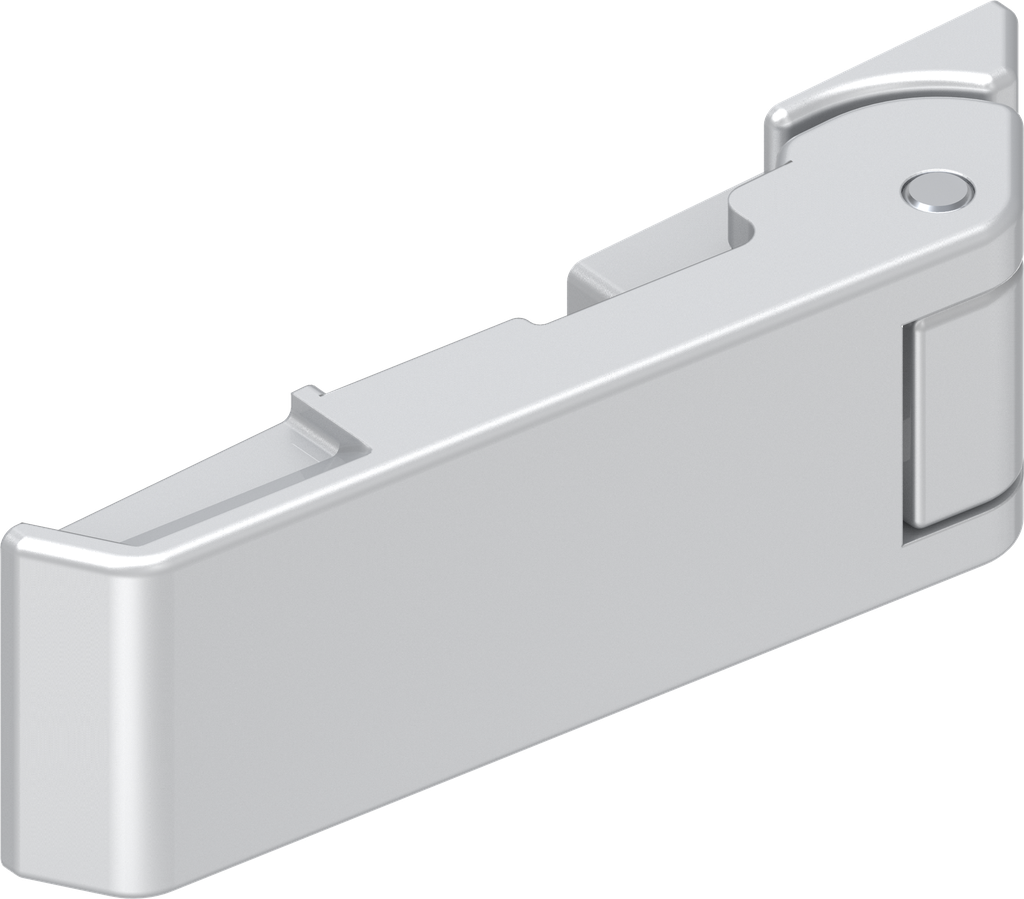

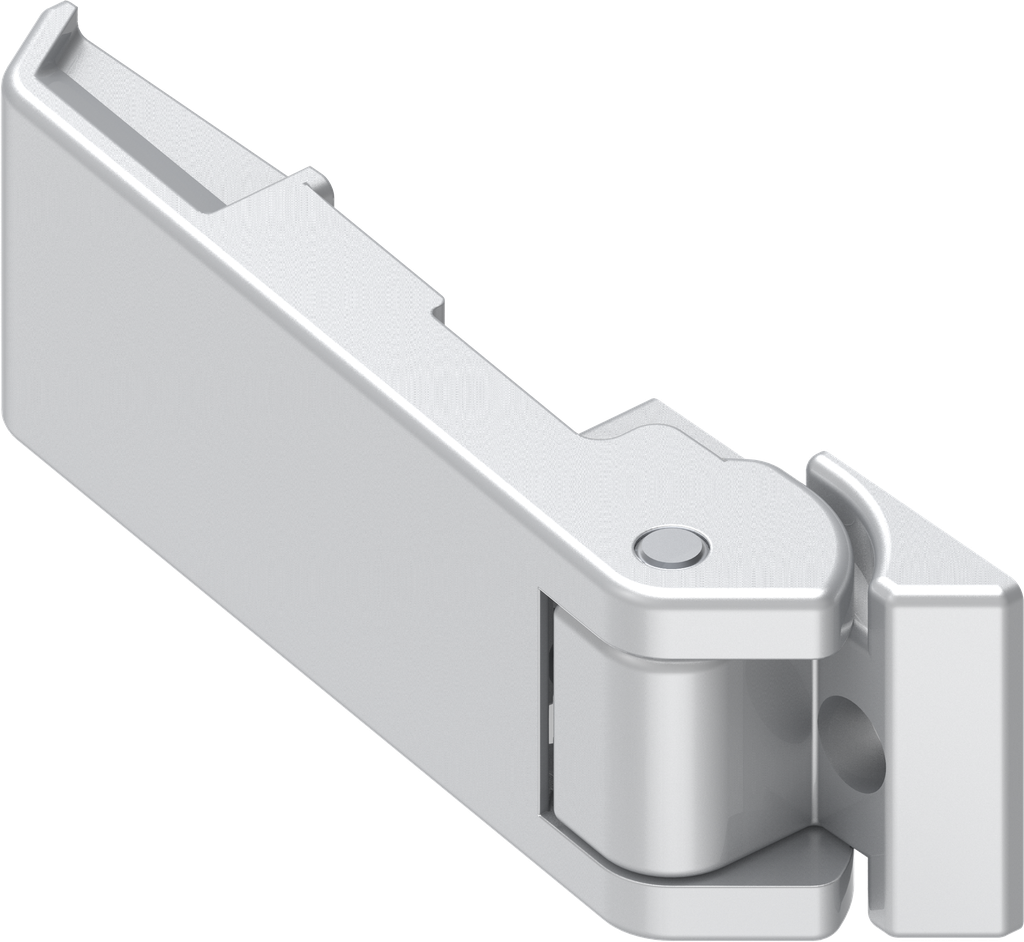

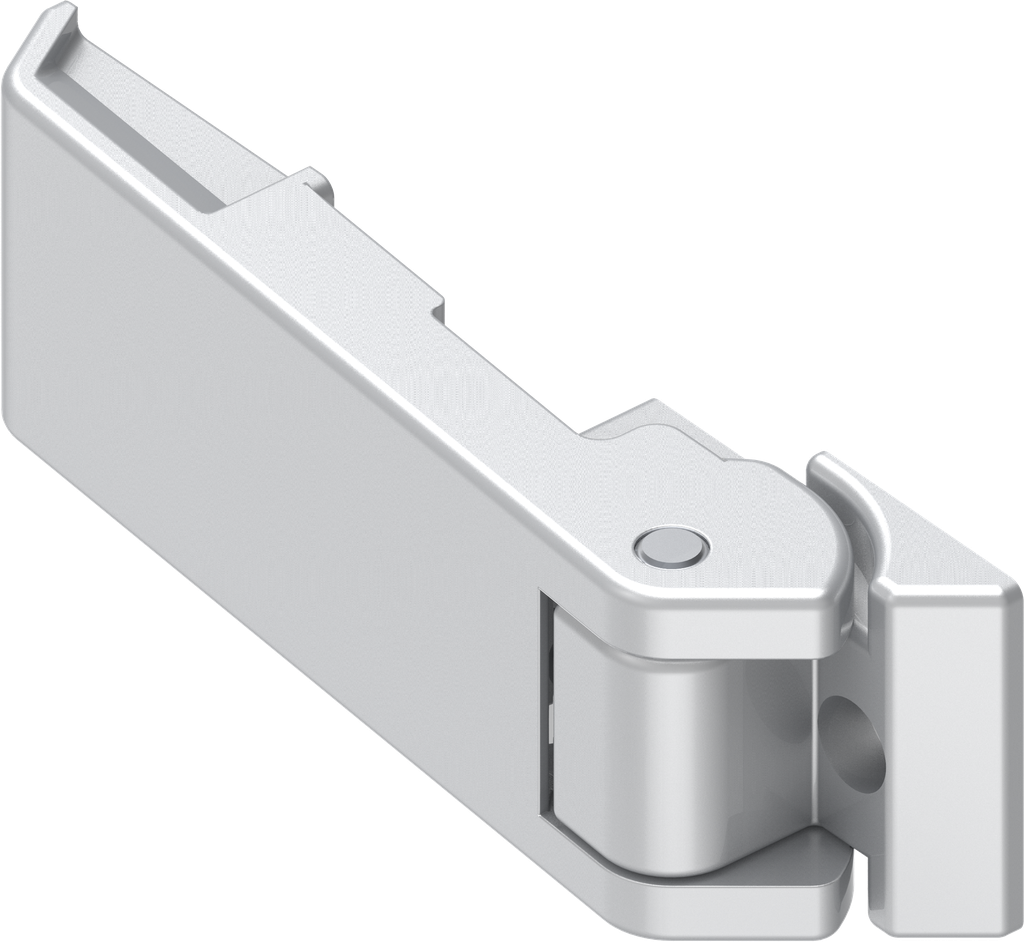

Hinge, Zinc die white aluminium powder-coated; 3060-U380-BK
Internal Reference:
3060-U380-BK
Product Type:
Hinge
Program:
3060
Surface:
white aluminium
Material of the module :
Zinc die
Surface of the module:
white aluminium powder-coated
Door return variable:
Yes
Type of attachment to the frame:
screw-on
Type of fastening on the door:
screw-on
Hole pattern required in the door:
Bore holes in the door
Max. opening angle due to installation:
Yes
Cabinet type :
Single cabinets,In-line cabinets with single door
Door position:
concealed
Door Version :
Left,Right
No Specifications
No Matching Products

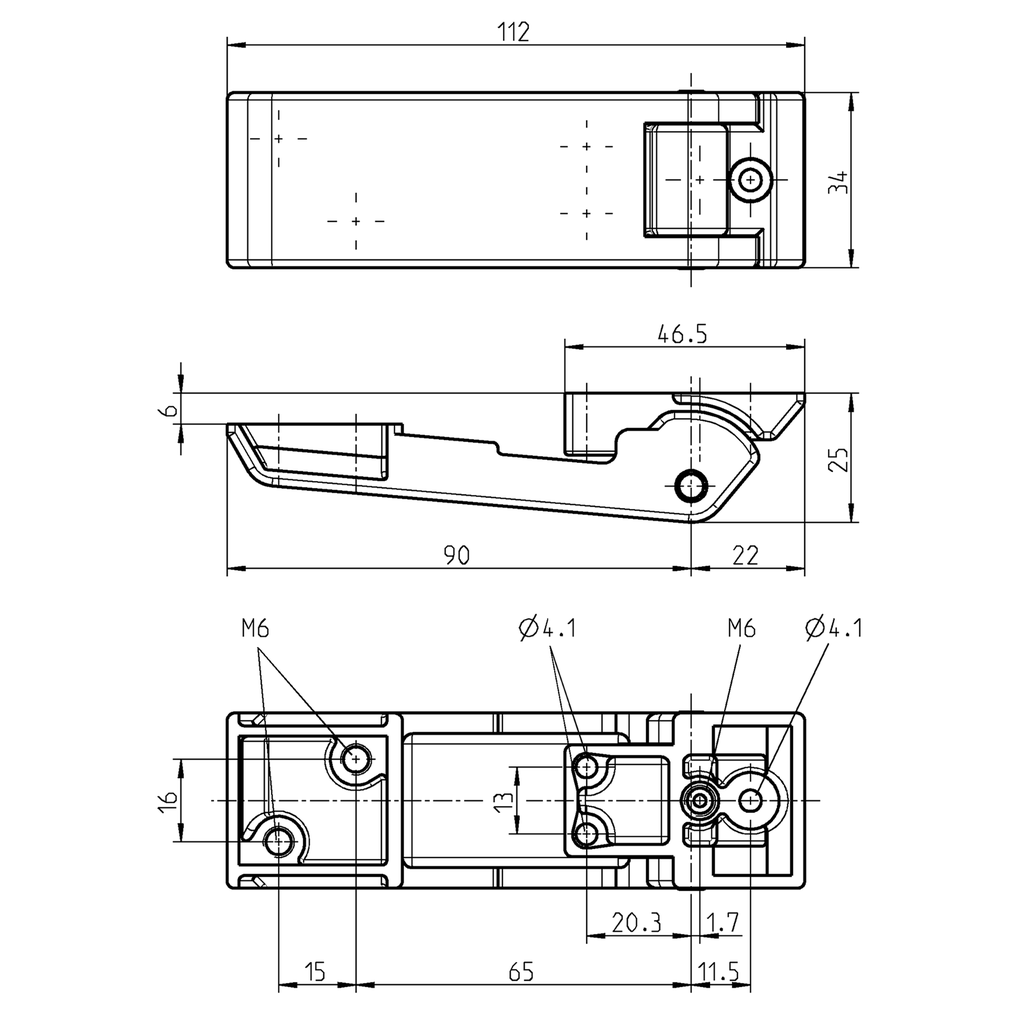

Here you can find the product data sheets and CAD files of this product
