Escutcheon 2153 with wing knob, keyed EK 333, Polyamide black and zinc die black powder-coated

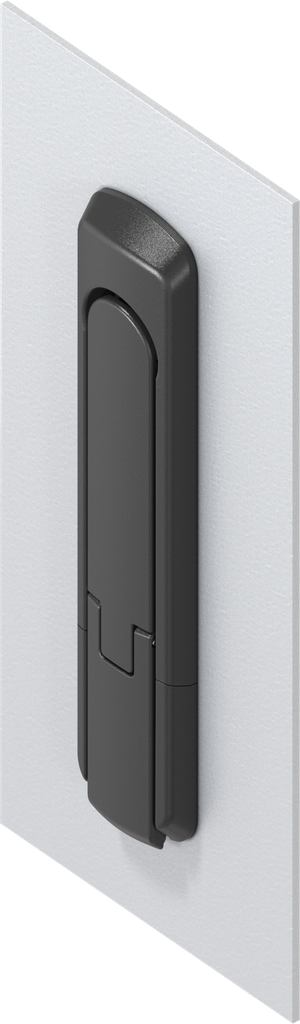

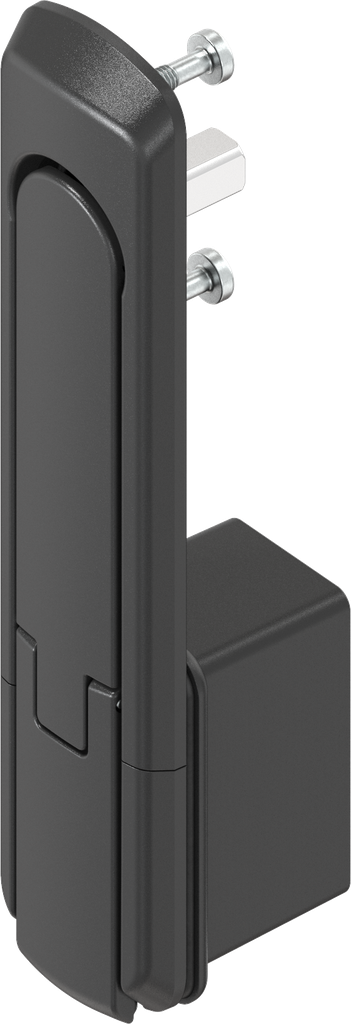

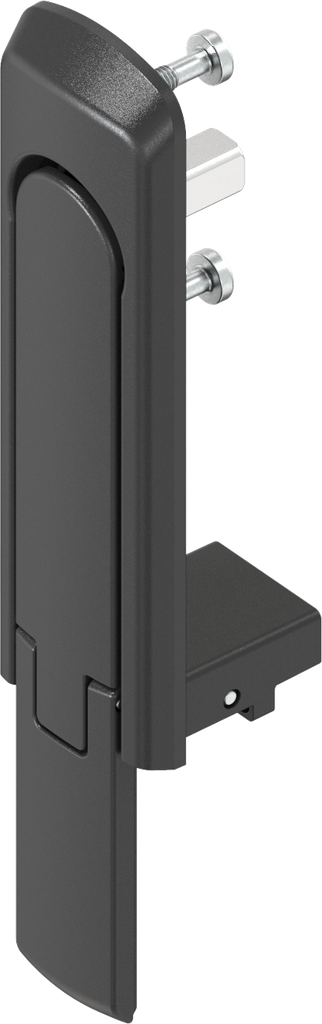

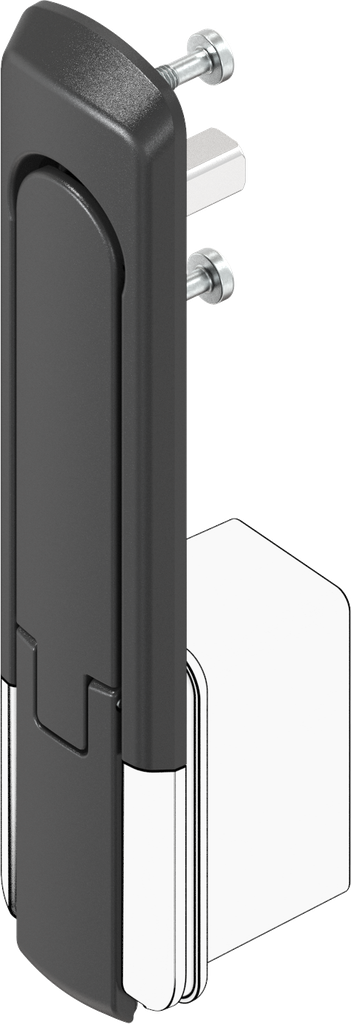

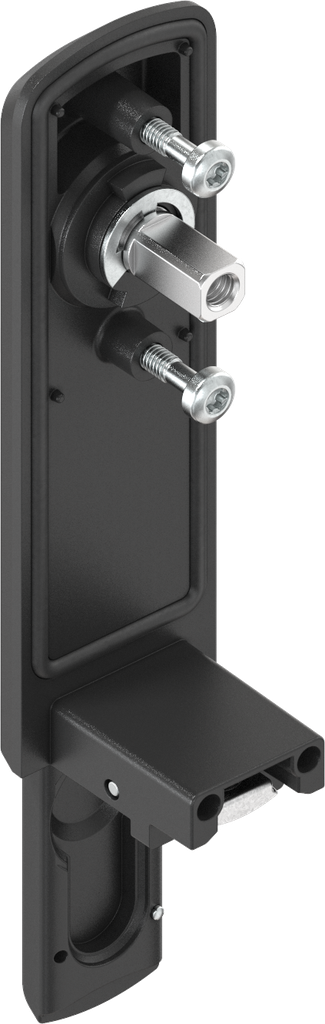

Flat swinghandle for locking set, Zinc die black powder-coated and zinc-plated
Product Benefits:
- Flat design Locking system inserts (locking sets) can be easily changed to the front Suitable for standard cut out Swinghandle and dish pre-assembled Permanent magnet holds the cylinder cover Integrated scratch protection prevents surface damage (handle / dish) Swinghandle, locking sets and adapter for cam made of zinc die Patent pending
- Locking system inserts (locking sets) can be easily changed to the front
- Suitable for standard cut out
- Swinghandle and dish pre-assembled
- Permanent magnet holds the cylinder cover
- Integrated scratch protection prevents surface damage (handle / dish)
- Swinghandle, locking sets and adapter for cam made of zinc die
- Patent pending
Product information:

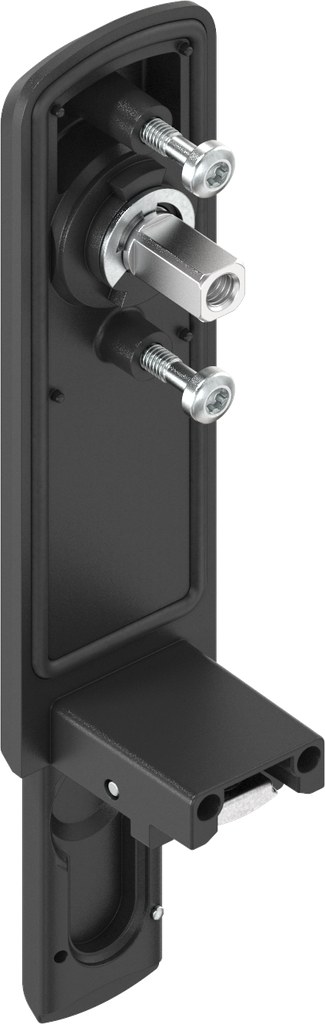

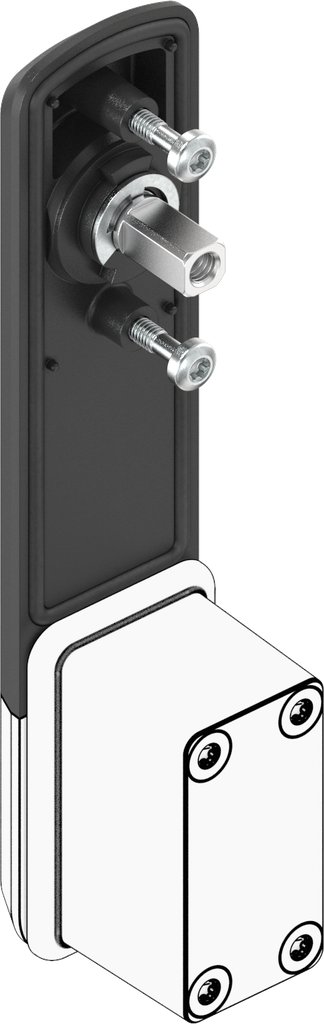

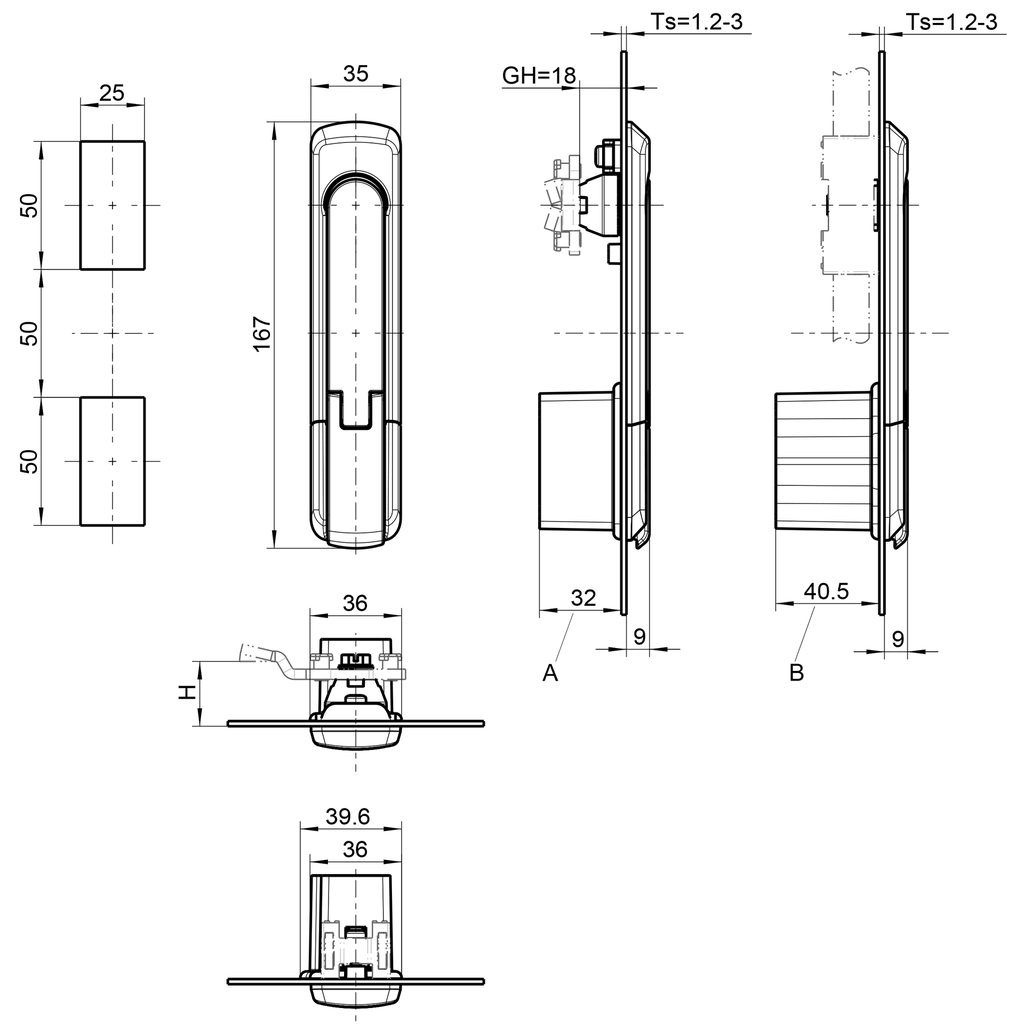

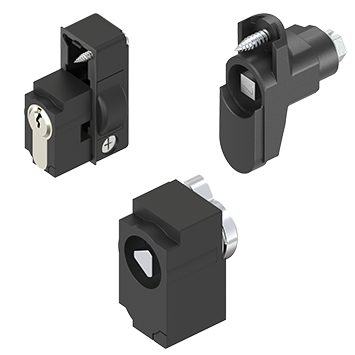

A = Swinghandle with locking set round cylinder or KABA cylinder or insert and with adapter for cam B = Swinghandle with locking set for profile half cylinder and with rot control

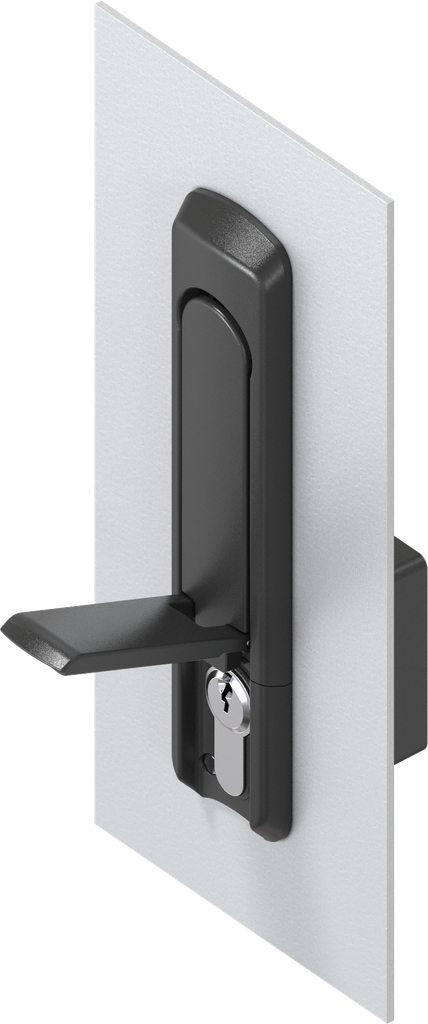

B = Swinghandle with locking set for profile half cylinder and with rot control
Assembly instruction:

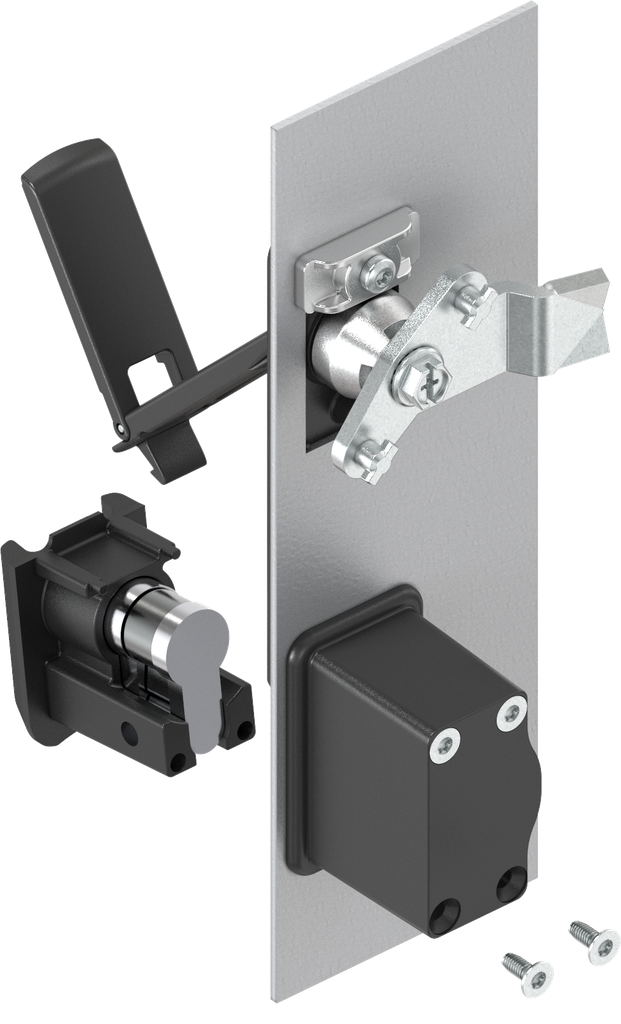

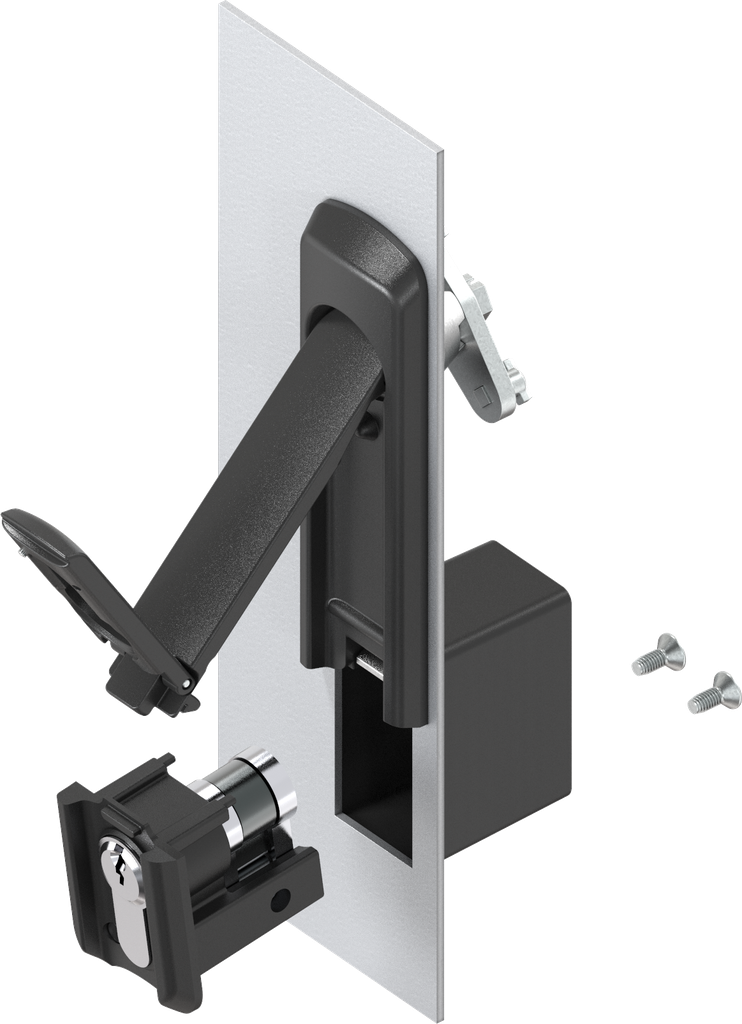

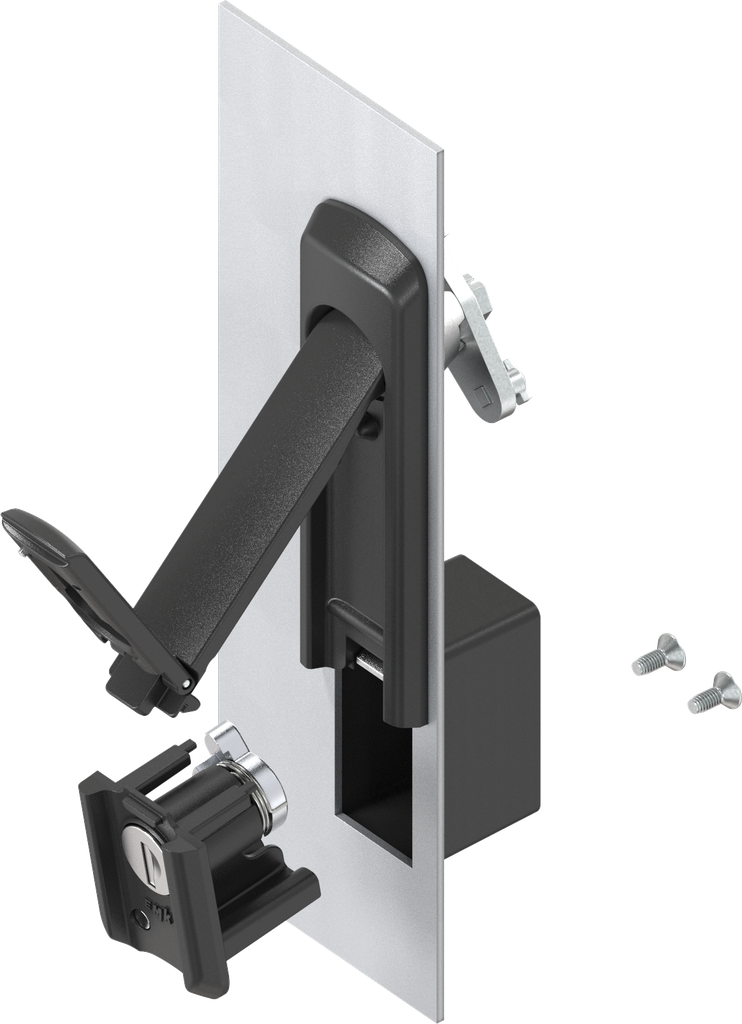

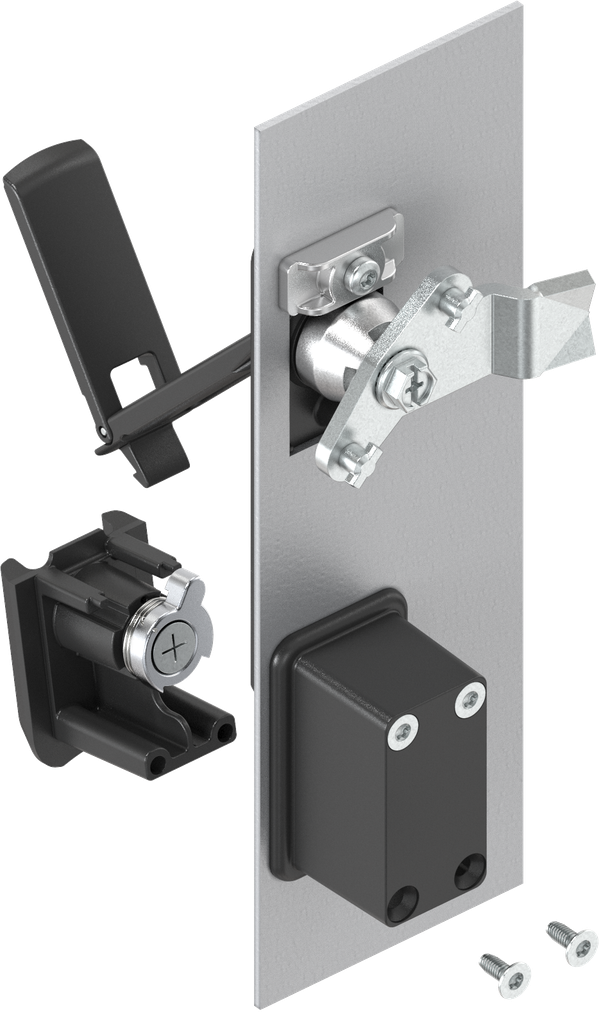

Easy exchange of the locking sets By removing the two lower screws, the locking set can be easily removed to the front.
Internal Reference:
2225-U1
Product Type:
Swinghandle, Lifthandle
Program:
2225
Catalog sheet:
3J-120
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point, 2 points, 3 point
Number of Locking:
One locking set
Article with property rights:
Yes
Attachment of the trough:
Screw-on cap IP 65
Mounting Positions :
Inside the sealing
Foamed gasket:
Yes
Consistent convenient swinging:
Yes
Handle Art(1):
Swinghandle
Integrated scratch protection:
Yes
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
3 mm
Locking set modular technology:
Profile half cylinder with cap, A = 30, mounted at the dish,KABA cylinder with cap, mounted at the dish,Round cylinder with cap, mounted at the dish,Insert with cap, mounted at the dish
locking set cover:
Yes
Shock and vibration testing according to DIN EN 61373:
Yes
Swivel Handle:
9 mm
Pan Handle Length:
167 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:

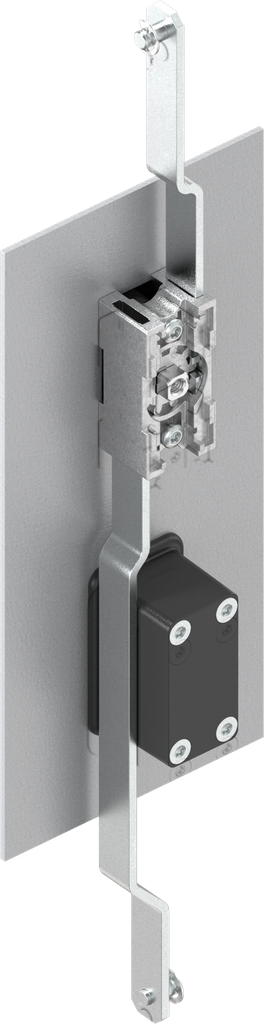

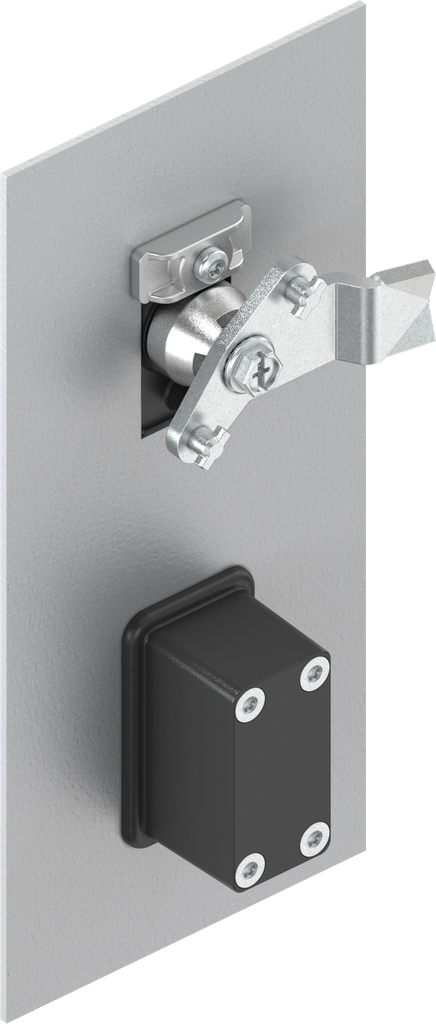

Cam,Rod control
