Rod control for flat rods, Zinc die and steel zinc-plated
Rod control for flat rods, Zinc die and steel zinc-plated
Escutcheon 2153 with L-handle, keyed EK 333, Polyamide black and zinc die black powder-coated
Escutcheon 2153 with L-handle, keyed EK 333, Polyamide black and zinc die black powder-coated

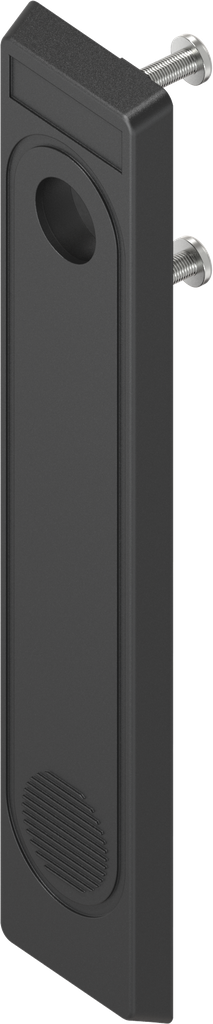

Escutcheon for insert square, triangular, Daimler Benz and slot, Polyamide GF black; 2150-U1

https://www.emka.com/products/2150-u1 https://www.emka.com/web/image/product.template/65517/image_1920?unique=da7e223

    This combination does not exist.

    Inside the sealing Outside the sealing Foamed seal Protection class IP 54
    Contact Us

    Product information:

    Logo recess: 27 x 8 x 0.5 Multicolour pad print possible
    Internal Reference: 2150-U1
    Product Type: Escutcheon
    Program: 2150
    Catalog sheet: 3H-120
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Mounting Positions : Inside the sealing,Outside the sealing
    Foamed gasket: Yes
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Locking means key tag: Insert square, triangular, Daimler Benz, slot, etc.
    Locking components: Rod control,Bearing bush with cam
    No Specifications
    View All Products

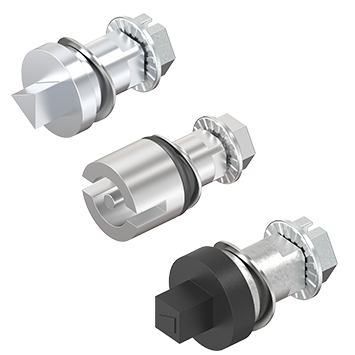

    Insert
    Bearing bush
    Rod control
    Here you can find the product data sheets and CAD files of this product
