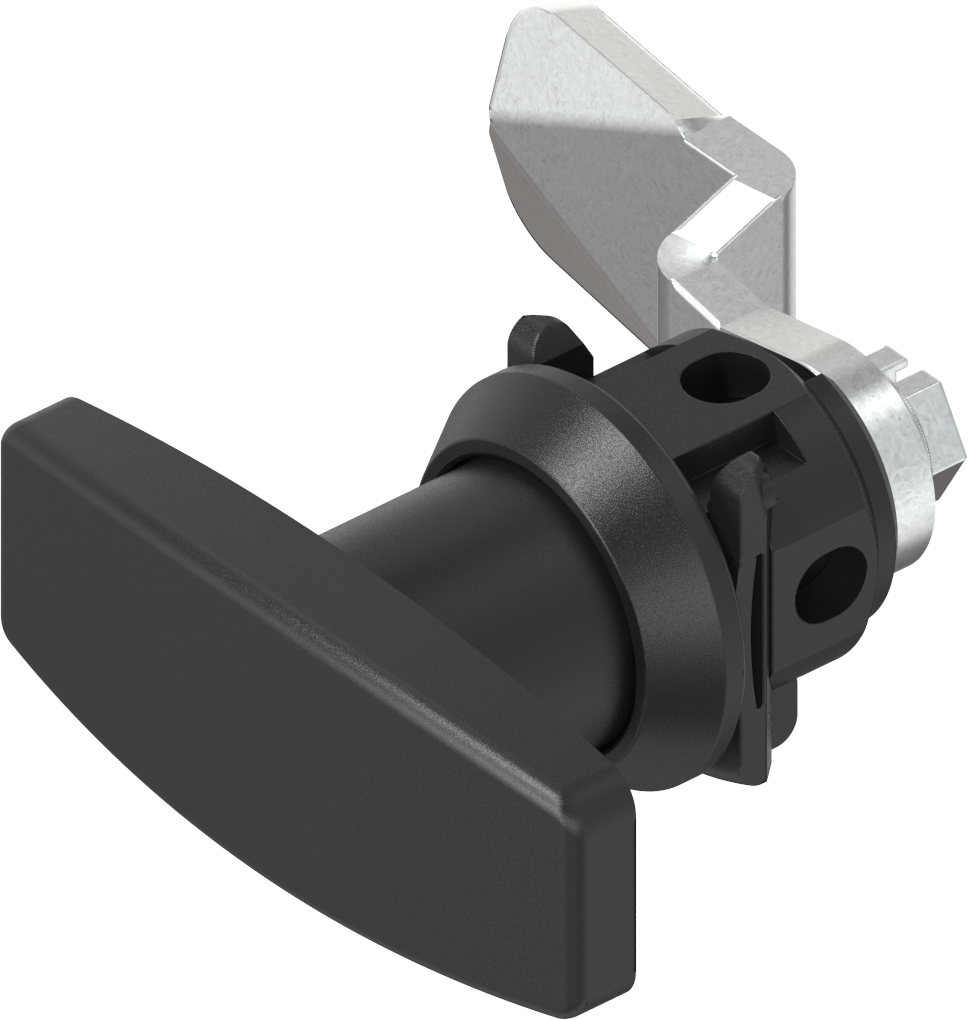

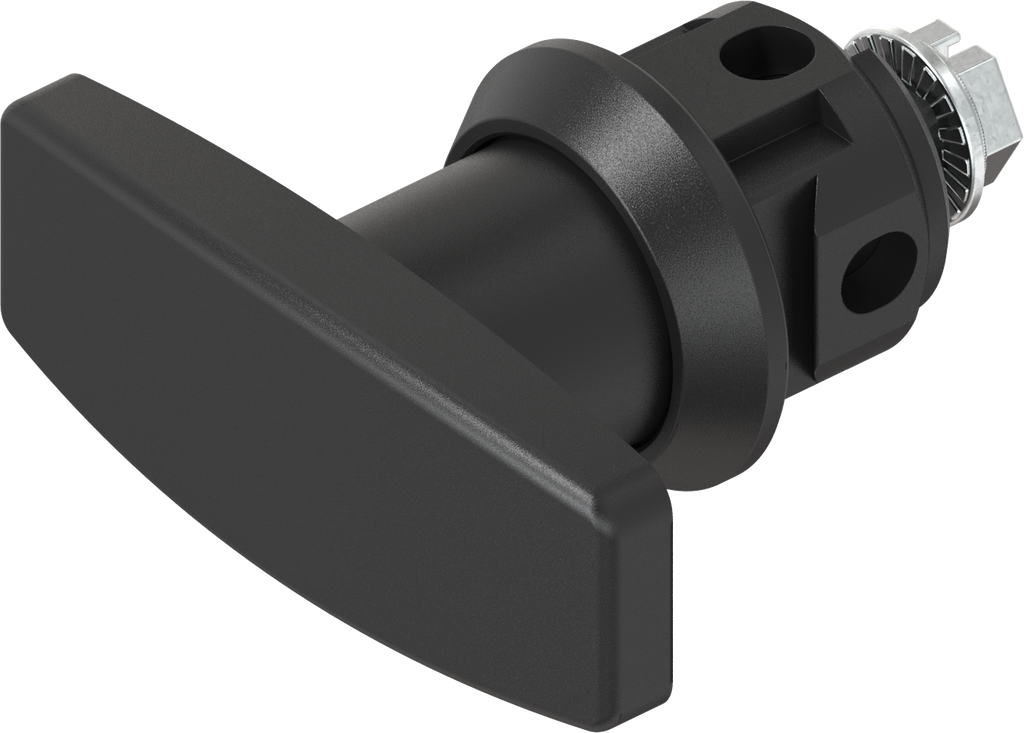

T-handle quarter turn small, clip fix, non-keyed, Polyamide GF black; 1500-U775

https://www.emka.com/products/1500-u775 https://www.emka.com/web/image/product.template/65349/image_1920?unique=e8209a7


    This combination does not exist.

    clamp-on / clip fix Inside the sealing Foamed seal Protection class IP 40 Left Right


    Akeneo Note:

    The door thickness depends on the locking clip, which must be selected and ordered separately.

    Internal Reference: 1500-U775
    Product Type: Quarter turn
    Program: 1500
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point
    Article with property rights: Yes
    Fixing type of housing : clamp-on / clip fix
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Foamed gasket: Yes
    GH Mass: 18 mm
    Handle Art: T-handle, small
    Locking set: No locking set, blind
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with handle
    No Specifications
    View All Products
    Cam
    Assembly
    Rod control
    Locking clip
    Here you can find the product data sheets and CAD files of this product
