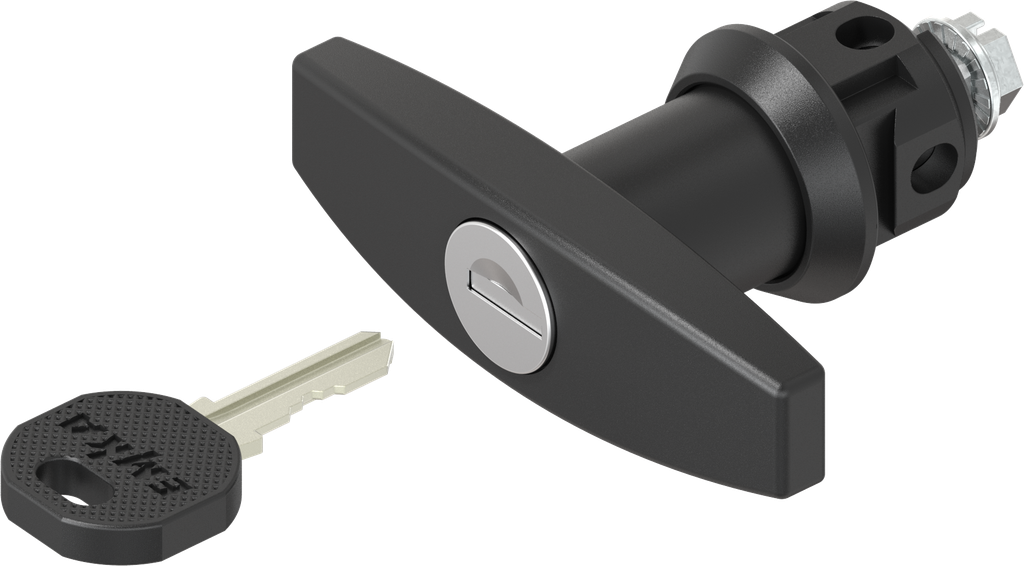

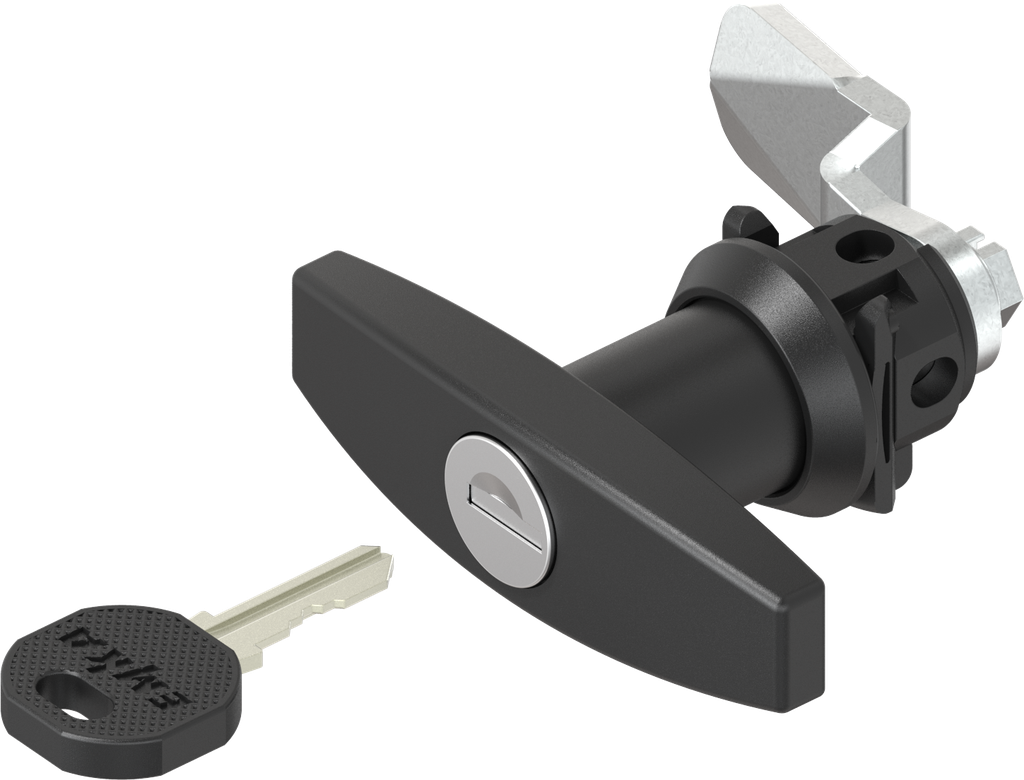

T-handle quarter turn, clip fix, keyed EK 333, Polyamide GF black
L-handle quarter turn clip fix, keyed different, Polyamide GF black
Product information:
Key removable in both positions.
Akeneo Note:
The door thickness depends on the locking clip, which must be selected and ordered separately.
Internal Reference:
1500-U550
Product Type:
Quarter turn
Program:
1500
Catalog sheet:
1D-220
Material of the module :
Polyamide GF
Surface of the module:
black
Number of Possible Locking Points:
1 point
Article with property rights:
Yes
Fixing type of housing :
clamp-on / clip fix
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:
30 x 6 mm
Foamed gasket:
Yes
GH Mass:
18 mm
Handle Art:
T-handle
Round Cylinder Type:
EMKA EK, differently keyed
Locking set:
Round cylinder
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Quarter turn with handle,Quarter turn with cylinder
No Specifications
