Wing knob quarter turn clip fix, non-keyed, Polyamide GF black
Wing knob quarter turn clip fix, non-keyed, Polyamide GF black
Wing knob quarter turn clip fix, keyed different, Polyamide GF black
Wing knob quarter turn clip fix, keyed different, Polyamide GF black

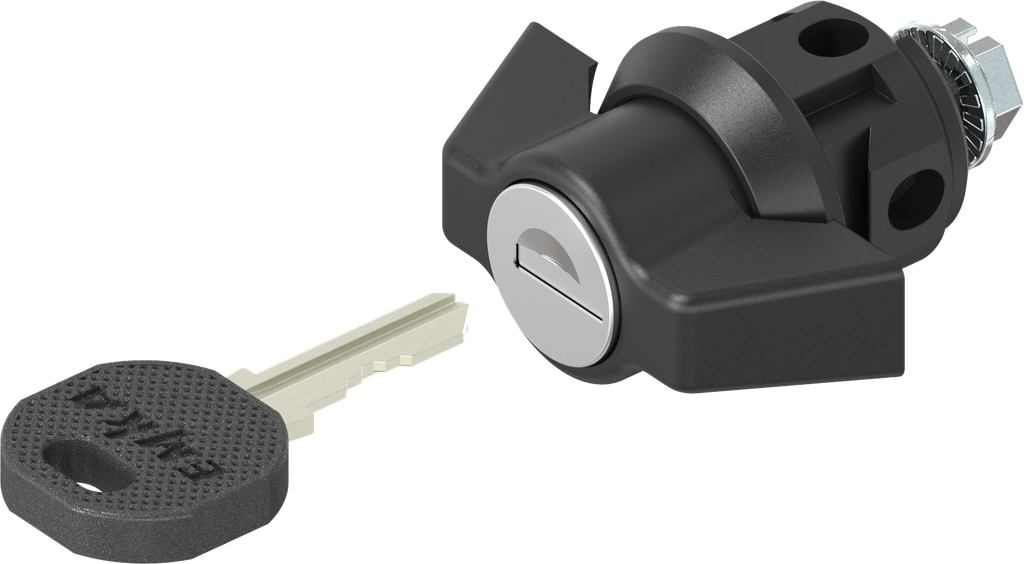

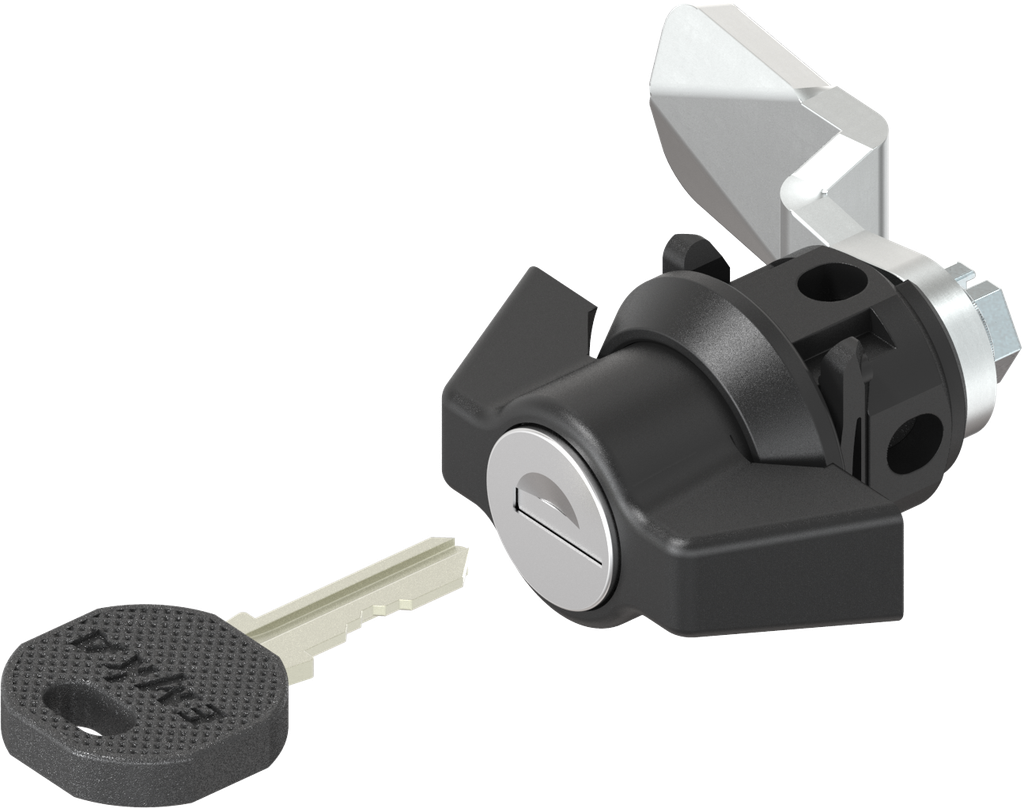

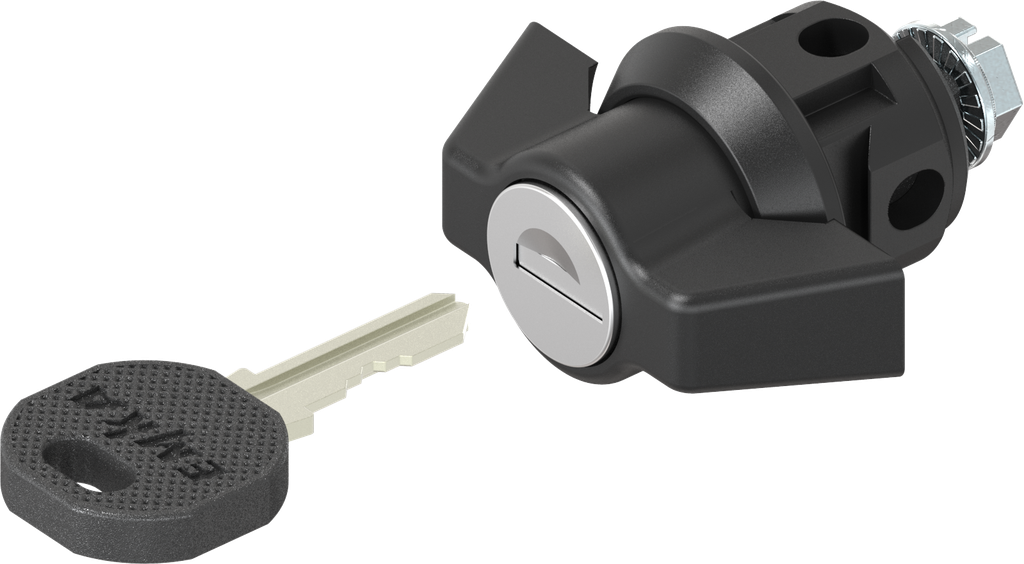

Wing knob quarter turn clip fix, keyed EK 333, Polyamide GF black; 1500-U345

https://www.emka.com/products/1500-u345 https://www.emka.com/web/image/product.template/65343/image_1920?unique=593e43e

    This combination does not exist.

    clamp-on / clip fix Inside the sealing Foamed seal Protection class IP 65 Left Right
    Contact Us

    Product information:

    Key removable in both positions.

    Akeneo Note:

    The door thickness depends on the locking clip, which must be selected and ordered separately.
    Internal Reference: 1500-U345
    Product Type: Quarter turn
    Program: 1500
    Catalog sheet: 1D-220
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point
    Article with property rights: Yes
    Fixing type of housing : clamp-on / clip fix
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 30 x 6 mm
    Foamed gasket: Yes
    GH Mass: 18 mm
    Handle Art: Wing knob
    Round Cylinder Type: EMKA EK, keyed EK 333
    Locking set: Round cylinder
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with handle,Quarter turn with cylinder
    No Specifications
    View All Products
    Cam
    Assembly
    Rod control
    Keys
    Locking clip

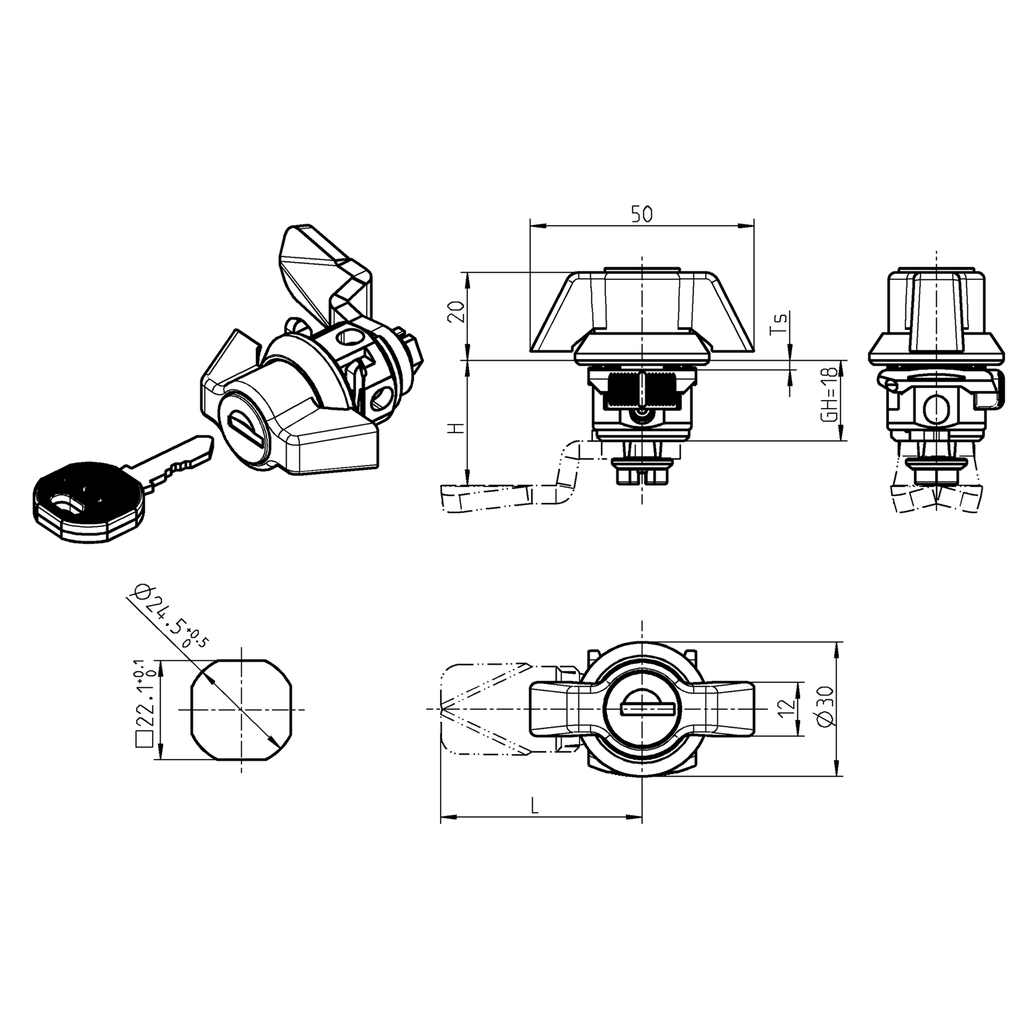

    Here you can find the product data sheets and CAD files of this product
