Insert with cam, slot 2 x 4, with O-ring, Polyamide GF black
Insert with cam, slot 2 x 4, with O-ring, Polyamide GF black
Wing knob quarter turn clip fix, non-keyed, Polyamide GF black
Wing knob quarter turn clip fix, non-keyed, Polyamide GF black

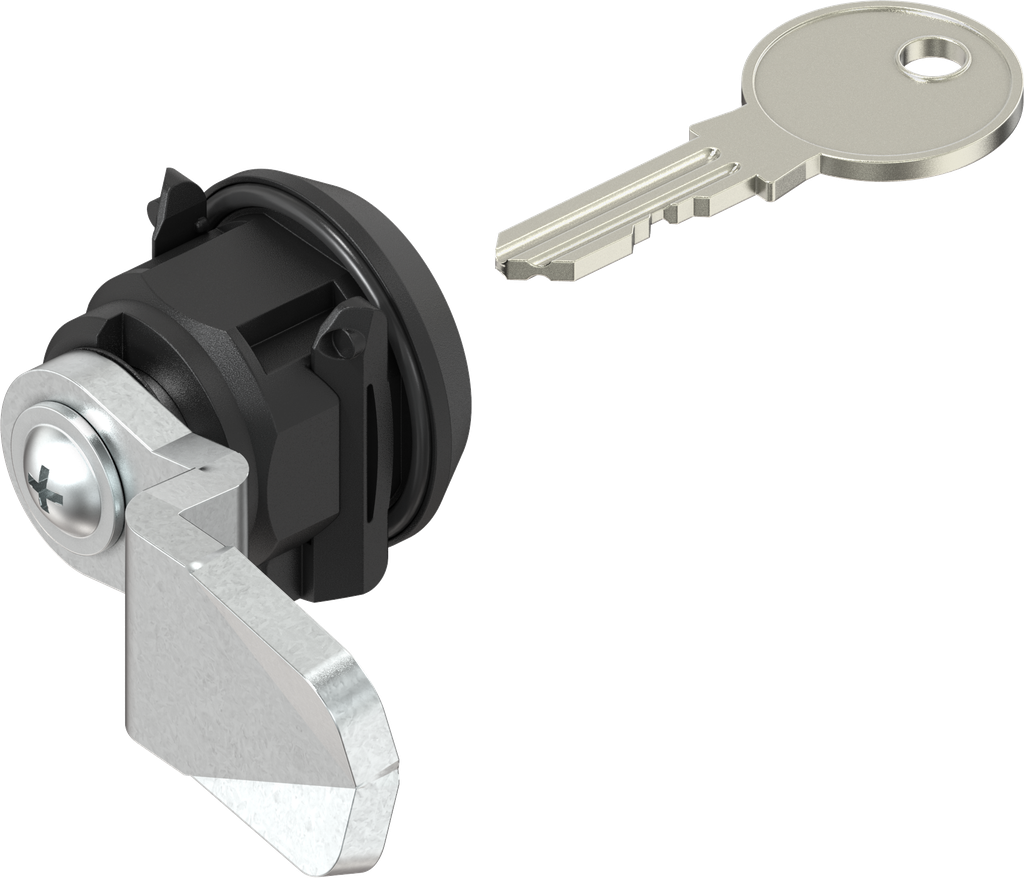

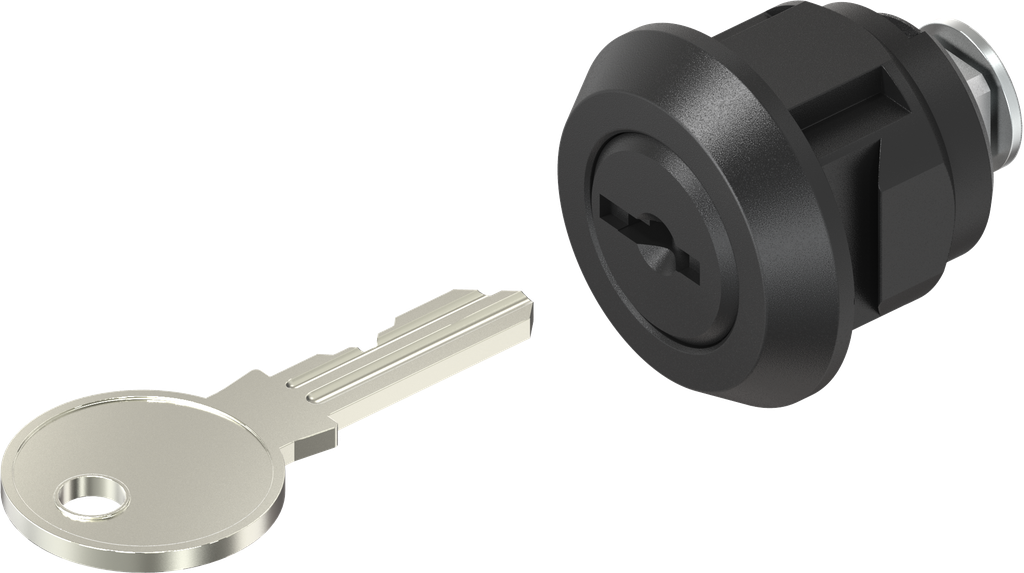

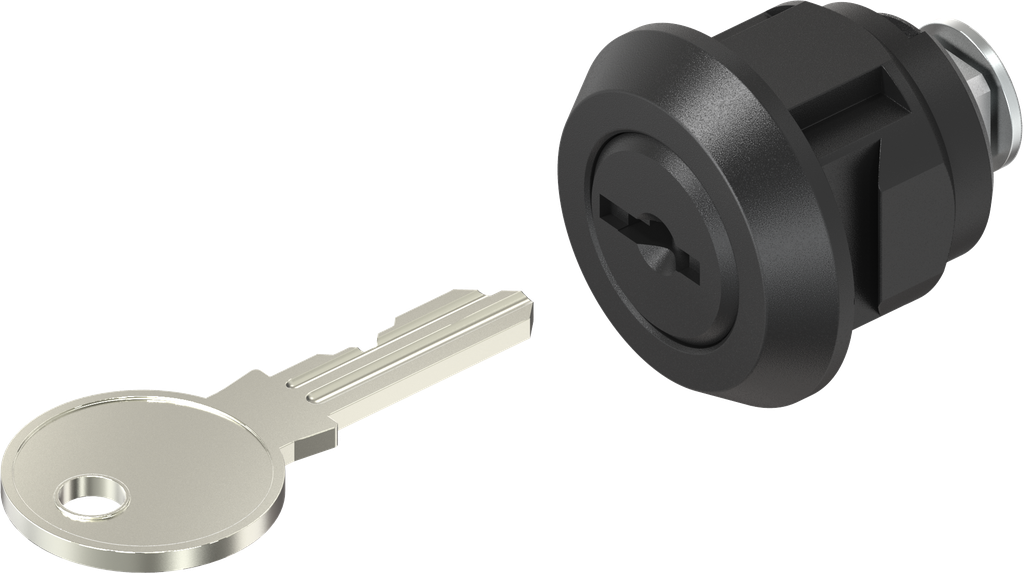

Cylinder quarter turn, clip fix, keyed EK 333, Polyamide GF black; 1500-U18

https://www.emka.com/products/1500-u18 https://www.emka.com/web/image/product.template/65341/image_1920?unique=e8209a7

    This combination does not exist.

    clamp-on / clip fix Inside the sealing Foamed seal Left Right
    Contact Us

    Product information:

    Key removable in both positions.

    Akeneo Note:

    The door thickness depends on the locking clip, which must be selected and ordered separately.
    Internal Reference: 1500-U18
    Product Type: Quarter turn
    Program: 1500
    Catalog sheet: 1D-240
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point
    Article with property rights: Yes
    Fixing type of housing : clamp-on / clip fix
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 30 x 6 mm
    Foamed gasket: Yes
    GH Mass: 18 mm
    Round Cylinder Type: EMKA EK, keyed EK 333
    Locking set: Round cylinder
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with cylinder
    No Specifications
    View All Products
    Cam
    Assembly
    Keys
    Locking clip
    Here you can find the product data sheets and CAD files of this product
