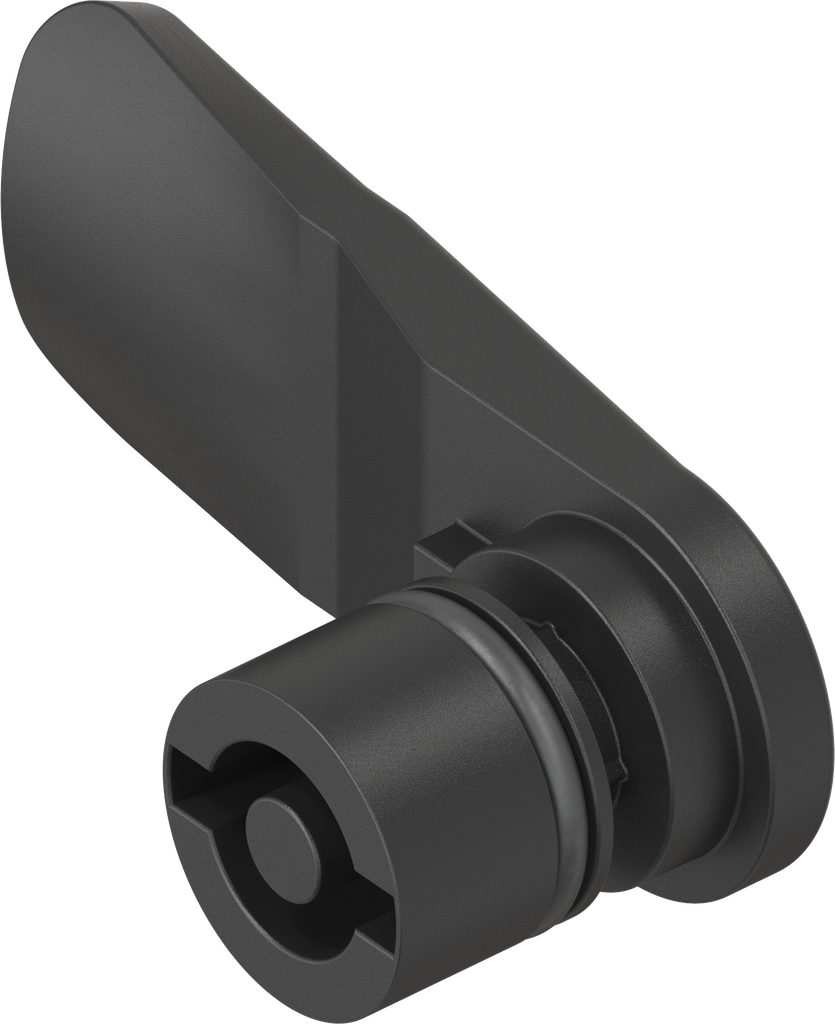

Insert cam double bit 3 with O-ring, Polyamide GF black
Insert with cam, slot 2 x 4, with O-ring, Polyamide GF black
Product information:
Further insert cams with other inserts or other H- and L-dimensions on request.
Internal Reference:
1500-B160-H18
Product Type:
Insert cam
Material:
Polyamide GF
Program:
1500
Surface:
black
Number of Possible Locking Points:
1 point
Type of actuation:
Double bit 5
For GH measure:
15 mm
Compression Value :
3 mm
Offset:
positive
offset of cam:
3 mm
Dimension L:
45 mm
O-ring position:
Slot
Locking set:
Insert
No Specifications
