Insert cam square 8, Polyamide GF black

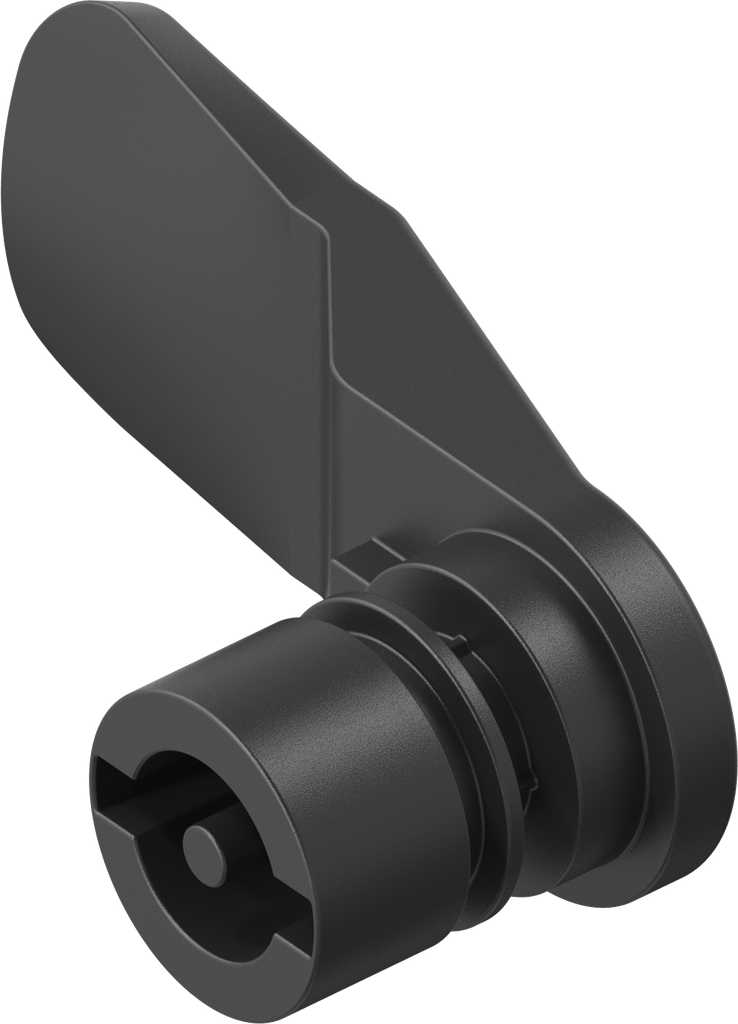

Insert cam double bit 5, Polyamide GF black
Internal Reference:
1500-156-H22
Product Type:
Insert cam
Material:
Polyamide GF
Program:
1500
Surface:
black
Catalog sheet:
1D-140
Number of Possible Locking Points:
1 point
Type of actuation:
Double bit 3
For GH measure:
15 mm
Compression Value :
3 mm
Offset:
positive
offset of cam:
7 mm
Dimension L:
45 mm
O-ring position:
Slot
Locking set:
Insert
No Specifications
