Locking clip for housing with insert cam, Polyamide GF pebble grey
Locking clip for housing with insert cam, Polyamide GF pebble grey
Locking clip for housing with round cylinder or handle, Polyamide GF pebble grey
Locking clip for housing with round cylinder or handle, Polyamide GF pebble grey

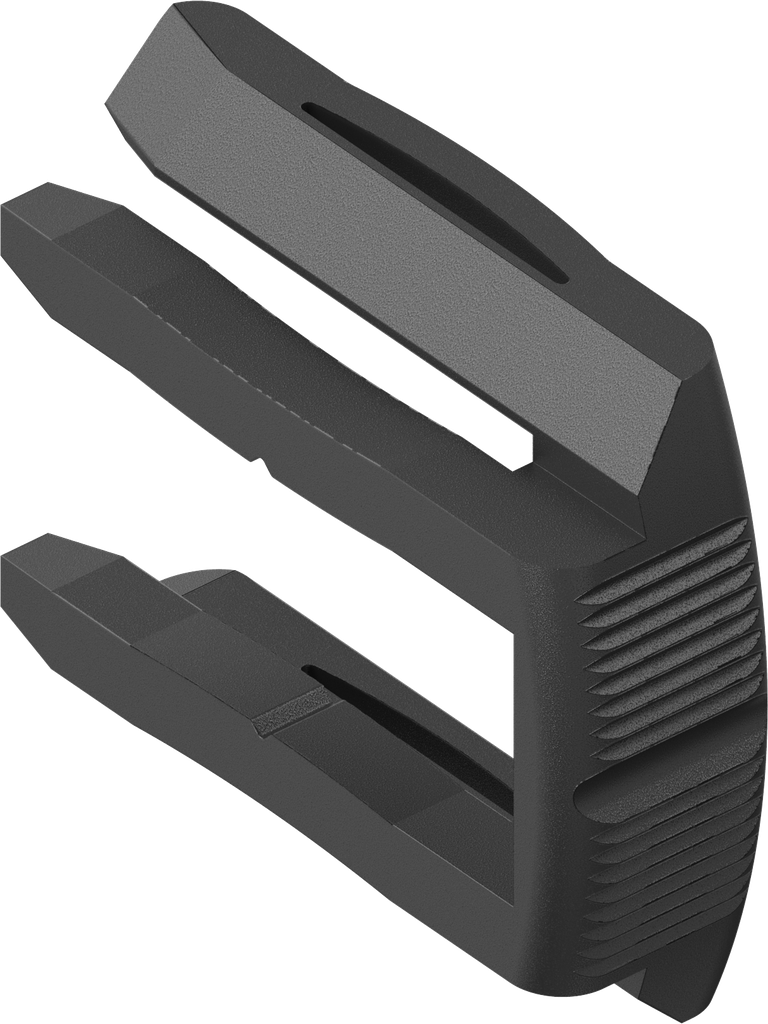

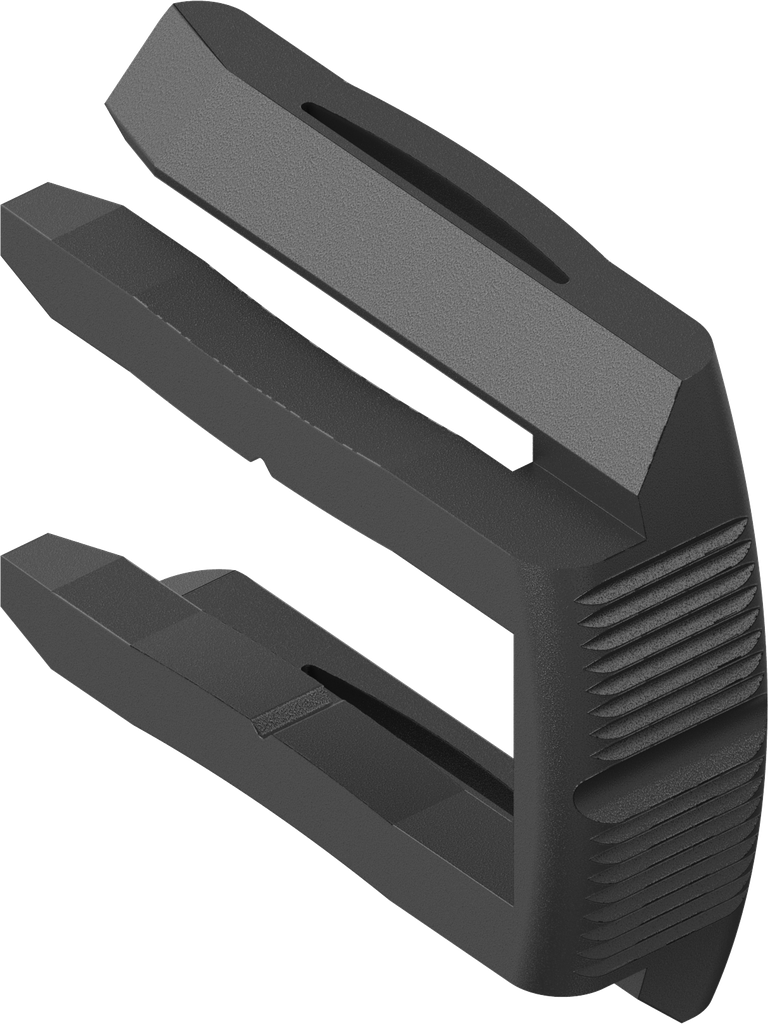

Locking clip for housing with insert cam, Polyamide GF black; 1500-02-15

https://www.emka.com/products/1500-02-15 https://www.emka.com/web/image/product.template/65318/image_1920?unique=f103bbb

for Ts = 1.5 - 2.0 mm

    This combination does not exist.

    Contact Us

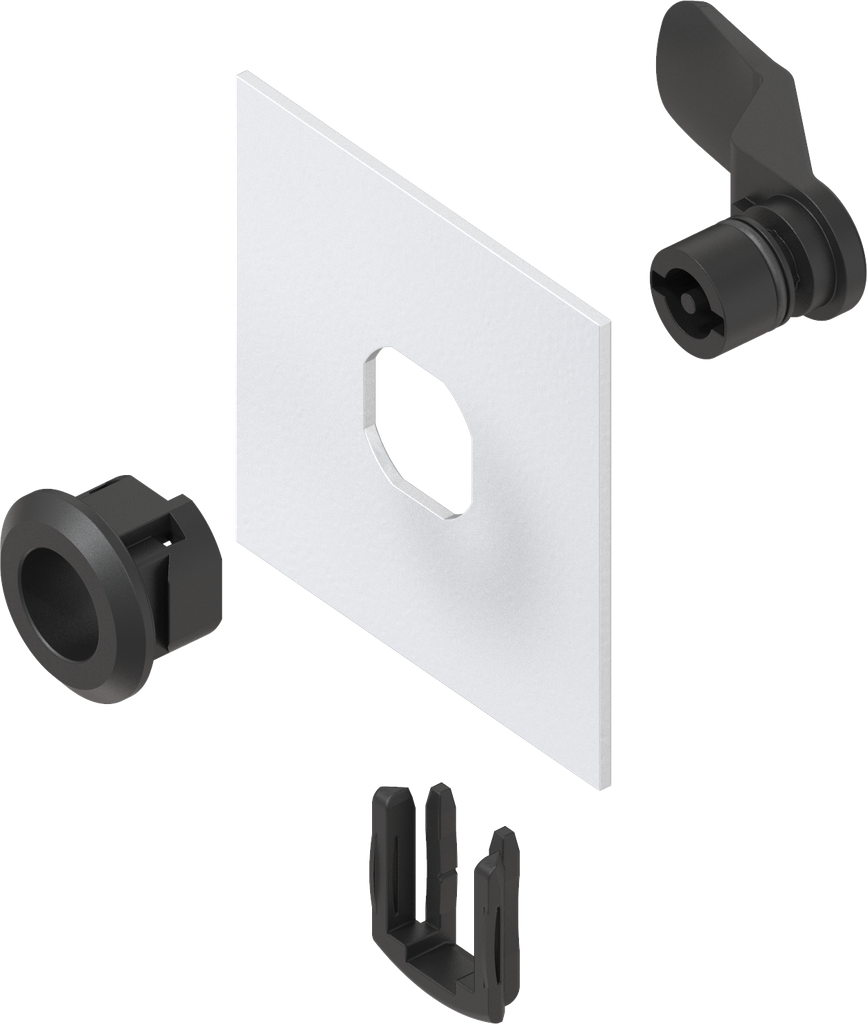

    Assembly instruction:

    Ts = 1.5 - 2.0 mm incl. surface coating
    Internal Reference: 1500-02-15
    Product Type: Locking clip
    Material: Polyamide GF
    Program: 1500
    Surface: black
    Catalog sheet: 1D-140
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    No Specifications
    View All Products
    Housing
    Insert cam
    Here you can find the product data sheets and CAD files of this product
