RFID transponder card Legic®;
RFID transponder card Legic®;
Housing foamed for insert, Polyamide GF black
Housing foamed for insert, Polyamide GF black

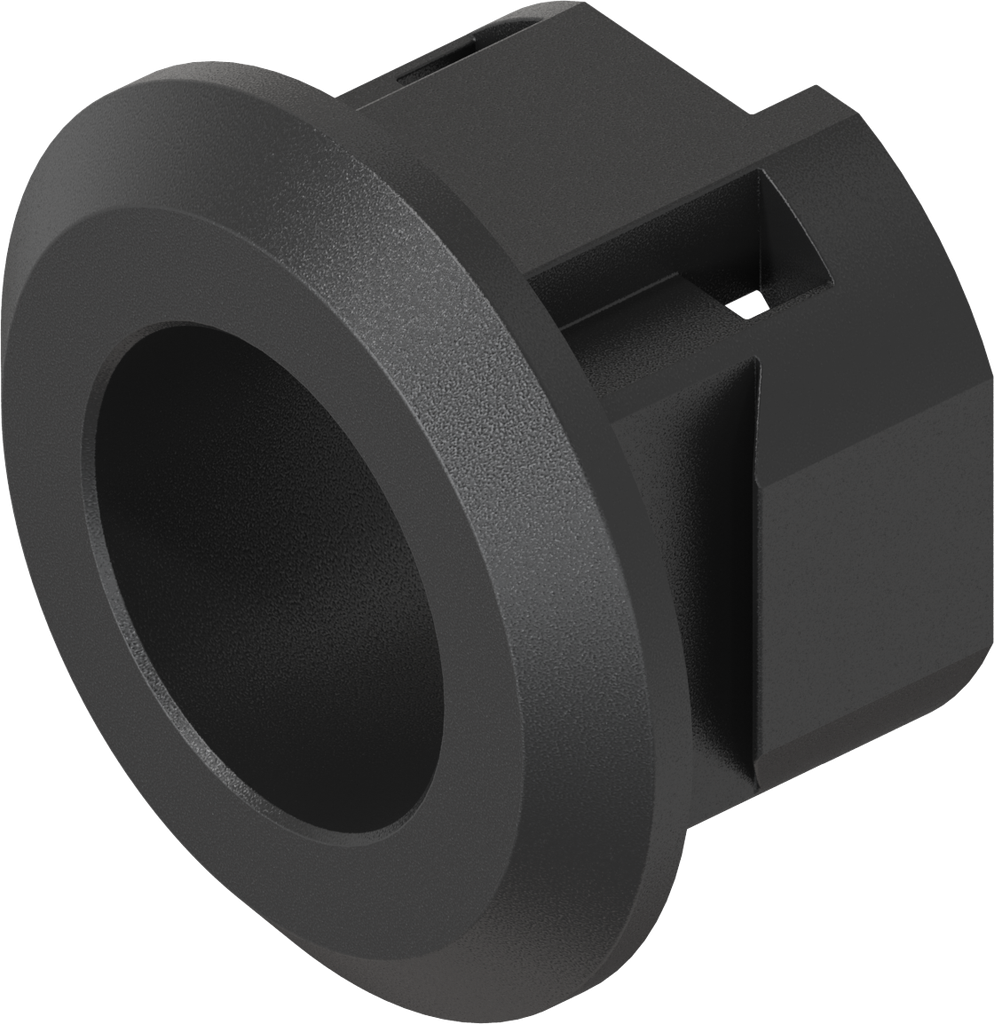

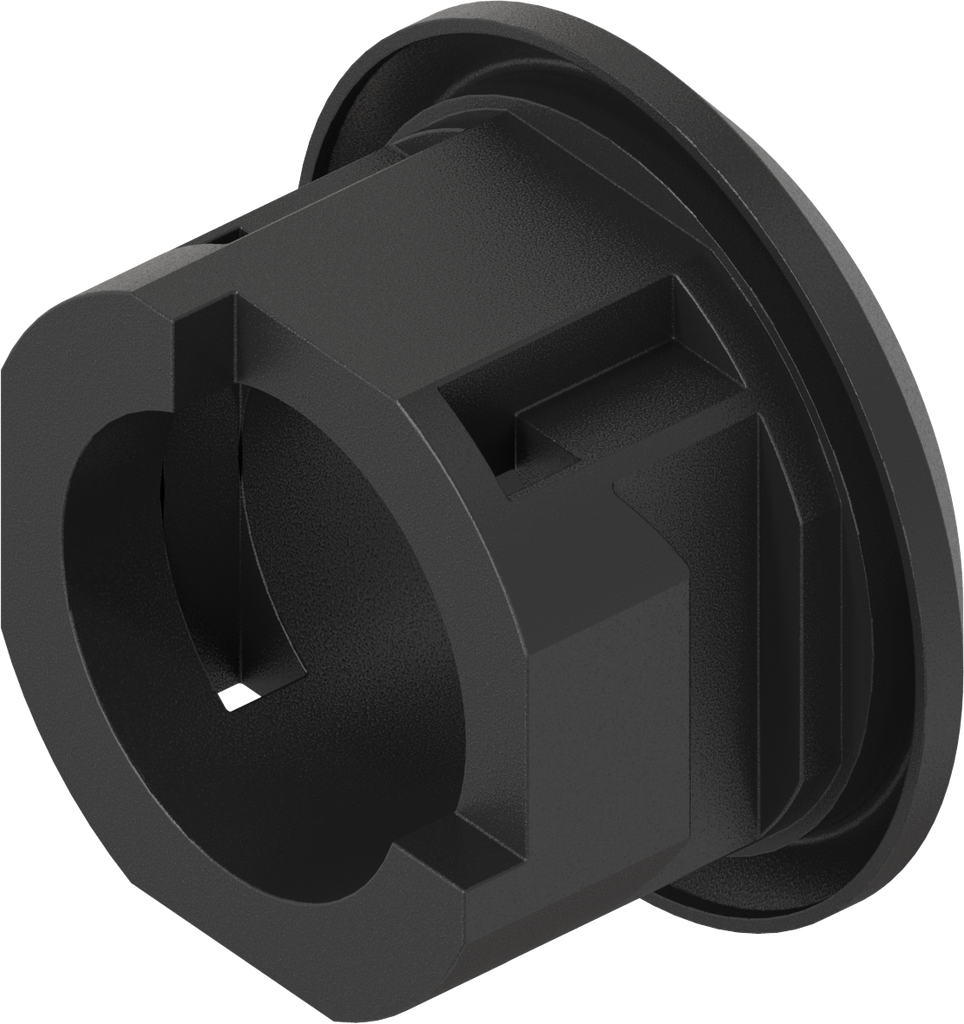

Housing unfoamed for insert, Polyamide GF black; 1500-01

https://www.emka.com/products/1500-01 https://www.emka.com/web/image/product.template/65315/image_1920?unique=4ea6eec

Length of housing (GH) = 15 mm

    This combination does not exist.

    clamp-on / clip fix Inside the sealing Left Right
    Contact Us

    Akeneo Note:

    The door thickness depends on the locking clip, which must be selected and ordered separately.
    Internal Reference: 1500-01
    Product Type: Housing
    Material: Polyamide GF
    Program: 1500
    Surface: black
    Catalog sheet: 1D-140
    Number of Possible Locking Points: 1 point
    Fixing type of housing : clamp-on / clip fix
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 30 x 4 mm
    GH Mass: 15 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Cam Body Style: Housing for insert with quick mounting
    Quarter turn types: Quarter turn with simple insert,Quarter turn for assembly without tools
    No Specifications
    View All Products
    Locking clip
    Insert cam
    Here you can find the product data sheets and CAD files of this product
