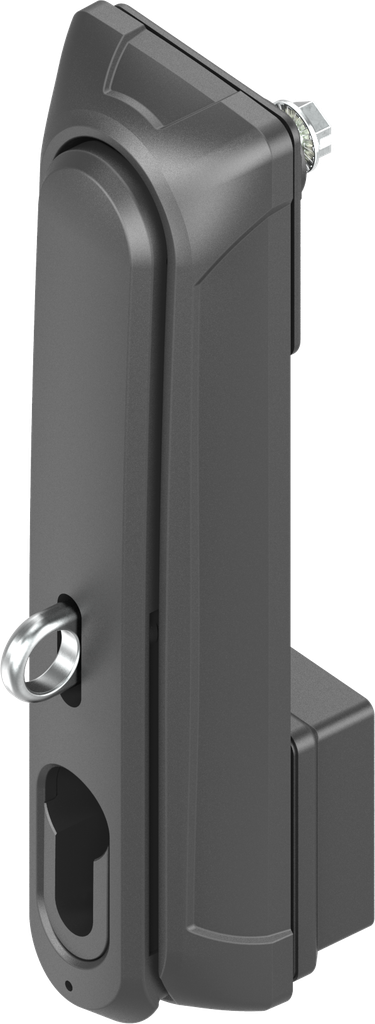

Swinghandle "long" for padlock with locking set for profile half cylinder 40 mm (A = 30 mm), Polyamide GF black; 1317-U426-01
for cam
No stock item, please ask for availability
Product Benefits:
- Ergonomic surface feel
- Variable locking options
- Integrated scratch prevents surface damage (handle / dish)
Product information:

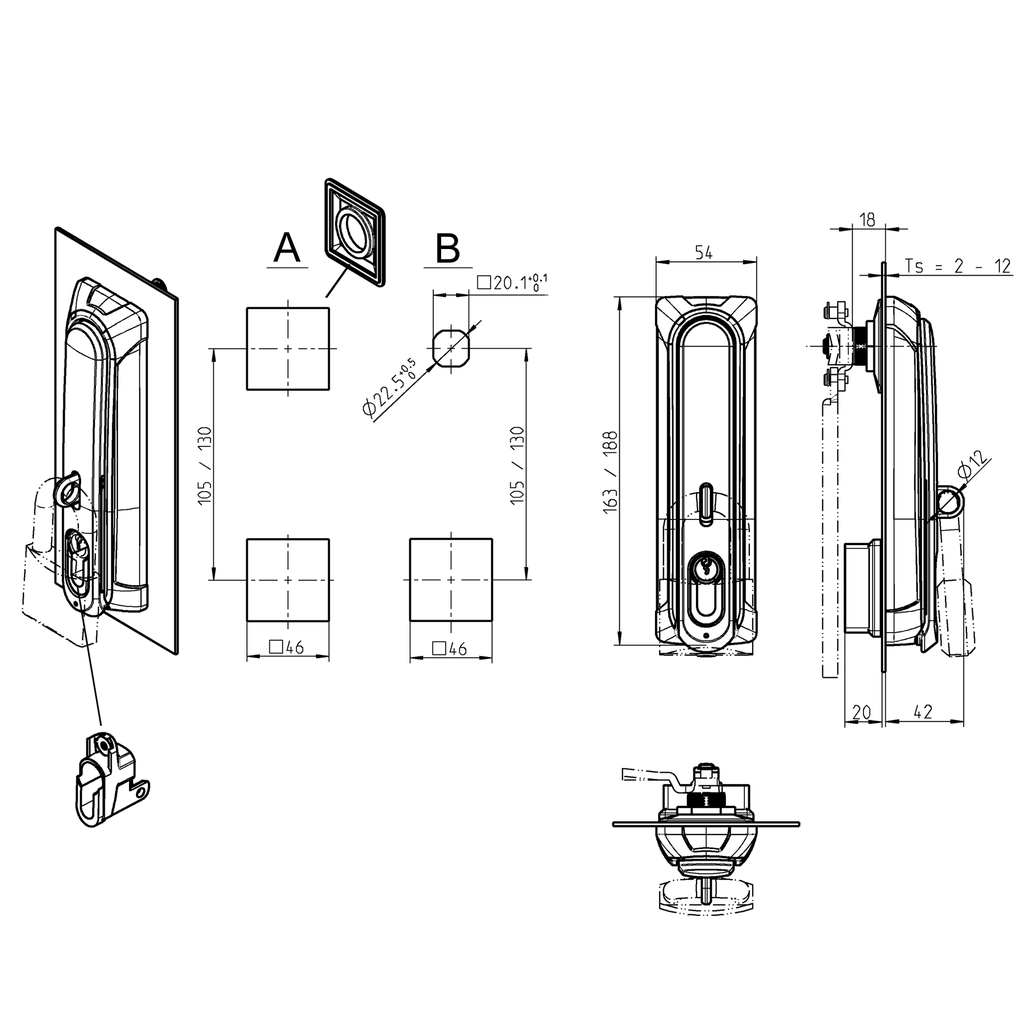

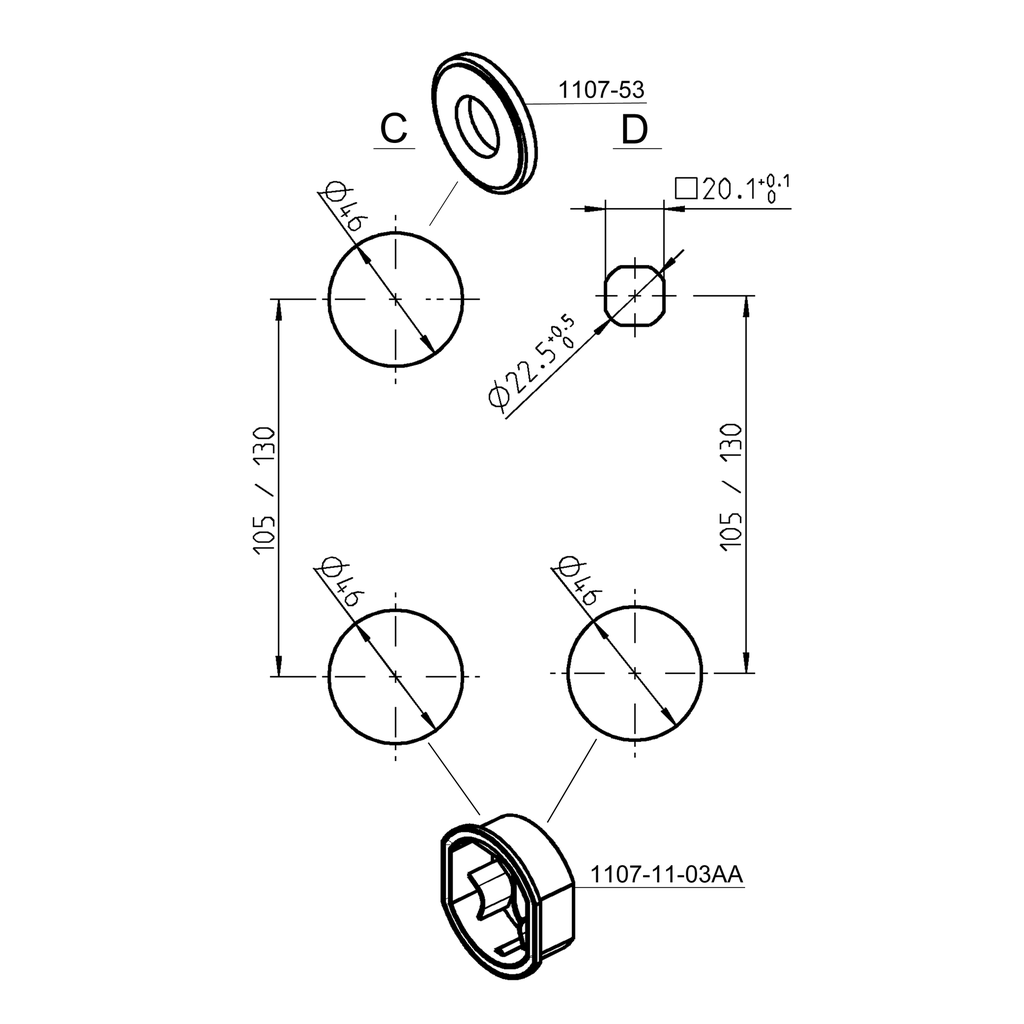

When using the adapter plate or the adapter ring the max. door gauge (Ts) will be 6 mm (for cut out variant A and C).Note:
When using door gauge (Ts) > 4 mm standard round rods cannot be used!
Order screw set 1107-U170 for Ts = 4 - 12 mm separately
Akeneo Note:
Sealable: Yes, bore hole in dish necessary
Internal Reference:
1317-U426-01
Barcode:
1317-U00426-0000001
Product Type:
Swinghandle, Lifthandle
Program:
1317
Catalog sheet:
3AB-140
Material of the module :
Polyamide GF
Surface of the module:
black
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point
Number of Locking:
One locking set and for padlock
Article with property rights:
Yes
Attachment of the trough:
Screw-on cap IP 65
Mounting Positions :
Inside the sealing
Foamed gasket:
Yes
Handle Art(1):
Swinghandle
Integrated scratch protection:
Yes
Suitable for door thickness from:
2 mm
Suitable for door thicknesses up to:
12 mm
Locking set:
Profile half cylinder A = 30,Padlock
Key Removable:
Key can be withdrawn in any handle position
Swivel Handle:
42 mm
Pan Handle Length:
188 mm
Door Version :
Left,Right
Padlock Art:
Padlock with shackle dimension Ø 12
No Specifications
