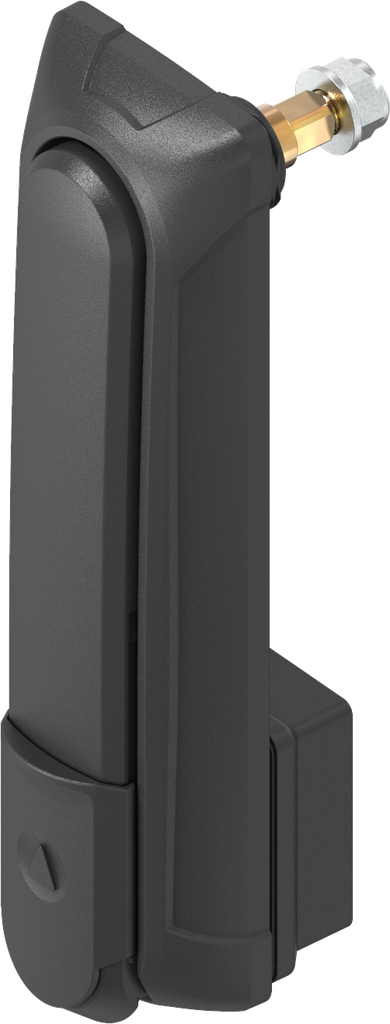

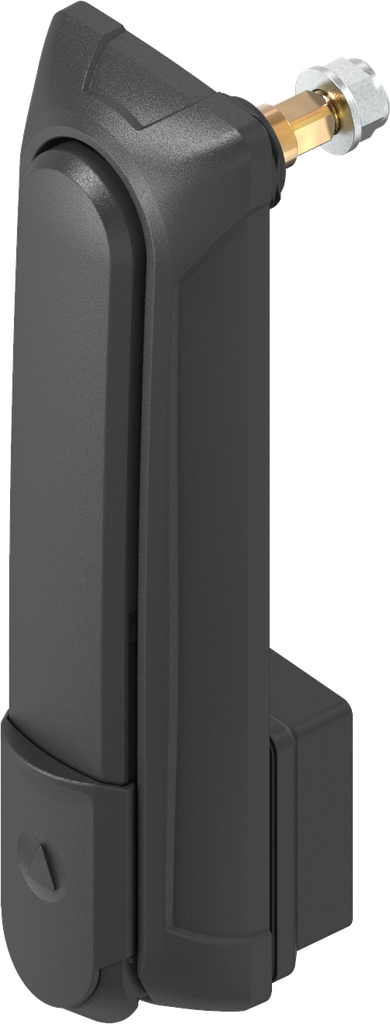

Swinghandle "long" with locking set for profile half cylinder 40 mm (A = 30 mm), Polyamide GF black
Swinghandle "long" with locking set for profile half cylinder 45 mm (A = 35 mm), Polyamide GF black

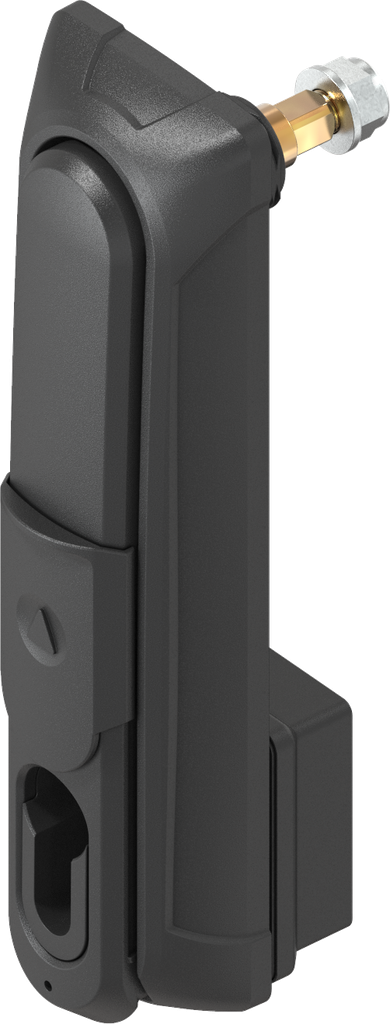

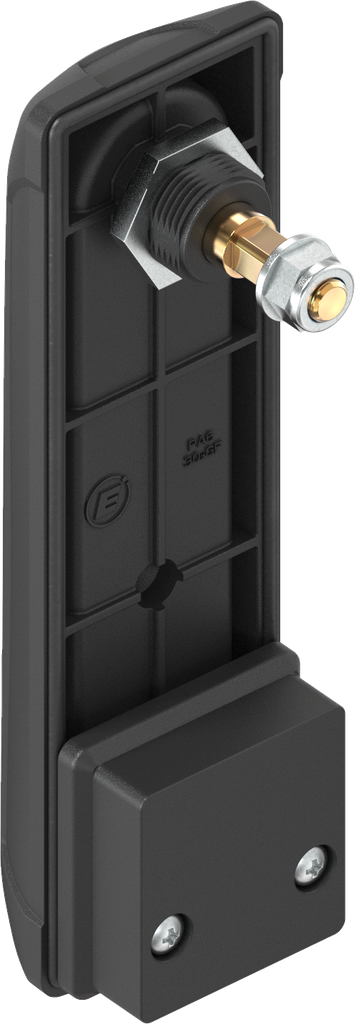

Swinghandle "long" with locking set for profile half cylinder 40 mm (A = 30 mm), Polyamide GF black; 1317-U421-02

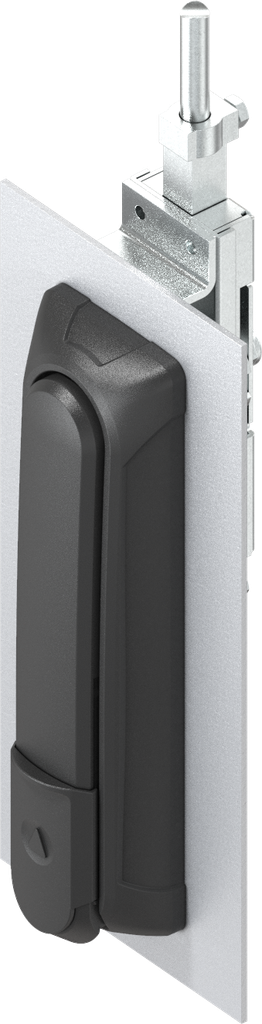

for rod control
Product Benefits:
- Ergonomic surface feel
- Variable locking options
- Integrated scratch prevents surface damage (handle / dish)
Akeneo Note:
Sealable: Yes, bore hole in dish necessary
Internal Reference:
1317-U421-02
Product Type:
Swinghandle, Lifthandle
Program:
1317
Catalog sheet:
3AB-220
Material of the module :
Polyamide GF
Surface of the module:
black
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point
Number of Locking:
One locking set
Article with property rights:
Yes
Attachment of the trough:
Screw-on cap IP 65
Mounting Positions :
Inside the sealing
Foamed gasket:
Yes
Handle Art(1):
Swinghandle
Integrated scratch protection:
Yes
Without locking set:
Profily half cylinder blind plug with spring-loaded ball
Suitable for door thickness from:
2 mm
Suitable for door thicknesses up to:
3 mm
Sealable:
Yes
Locking set:
Profile half cylinder A = 30
locking set cover:
Yes
Key Removable:
Key can be withdrawn in any handle position

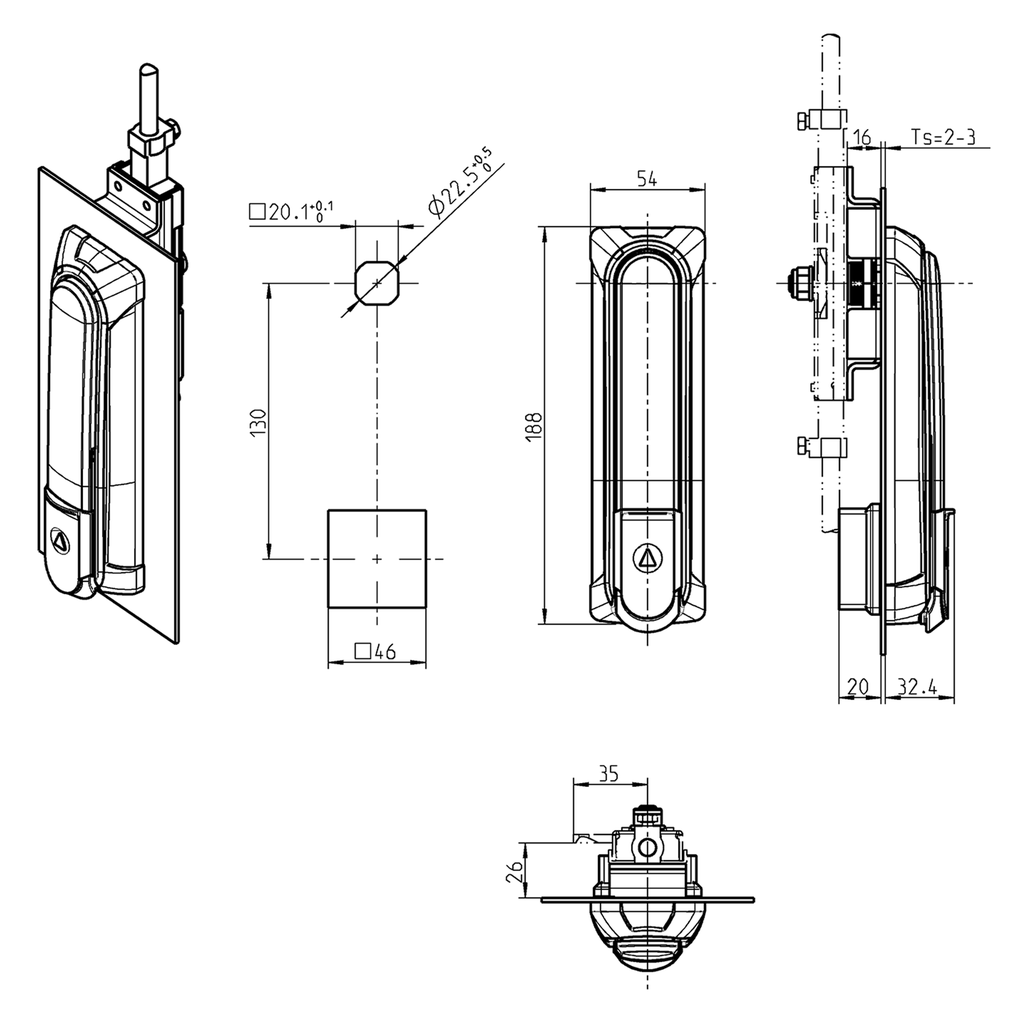

Swivel Handle:
32.4 mm
Pan Handle Length:
188 mm
Door Version :
Left,Right

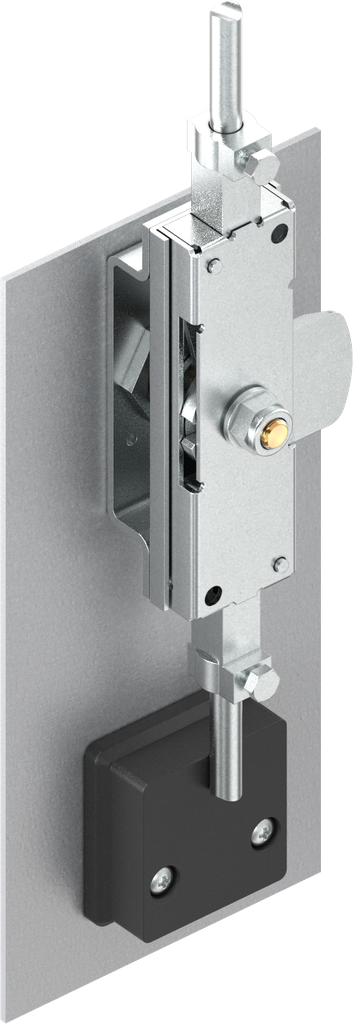

Locking components:
Rod control
