Swinghandle "short" for padlock with locking set for profile half cylinder 40 mm (A = 30 mm), Polyamide GF black
Swinghandle "long" with locking set for profile half cylinder 40 mm (A = 30 mm), Polyamide GF black

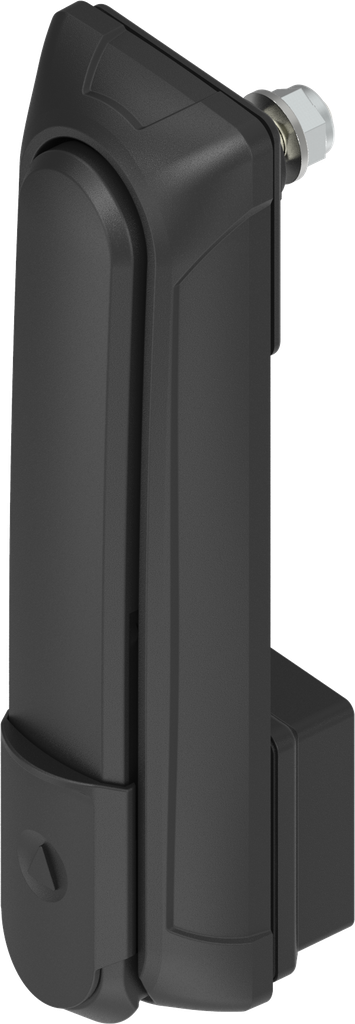

Swinghandle "long" with locking set for profile half cylinder 40 mm (A = 30 mm), Polyamide GF black; 1317-U421-01
for cam
Product Benefits:
- Ergonomic surface feel
- Variable locking options
- Integrated scratch prevents surface damage (handle / dish)
Product information:

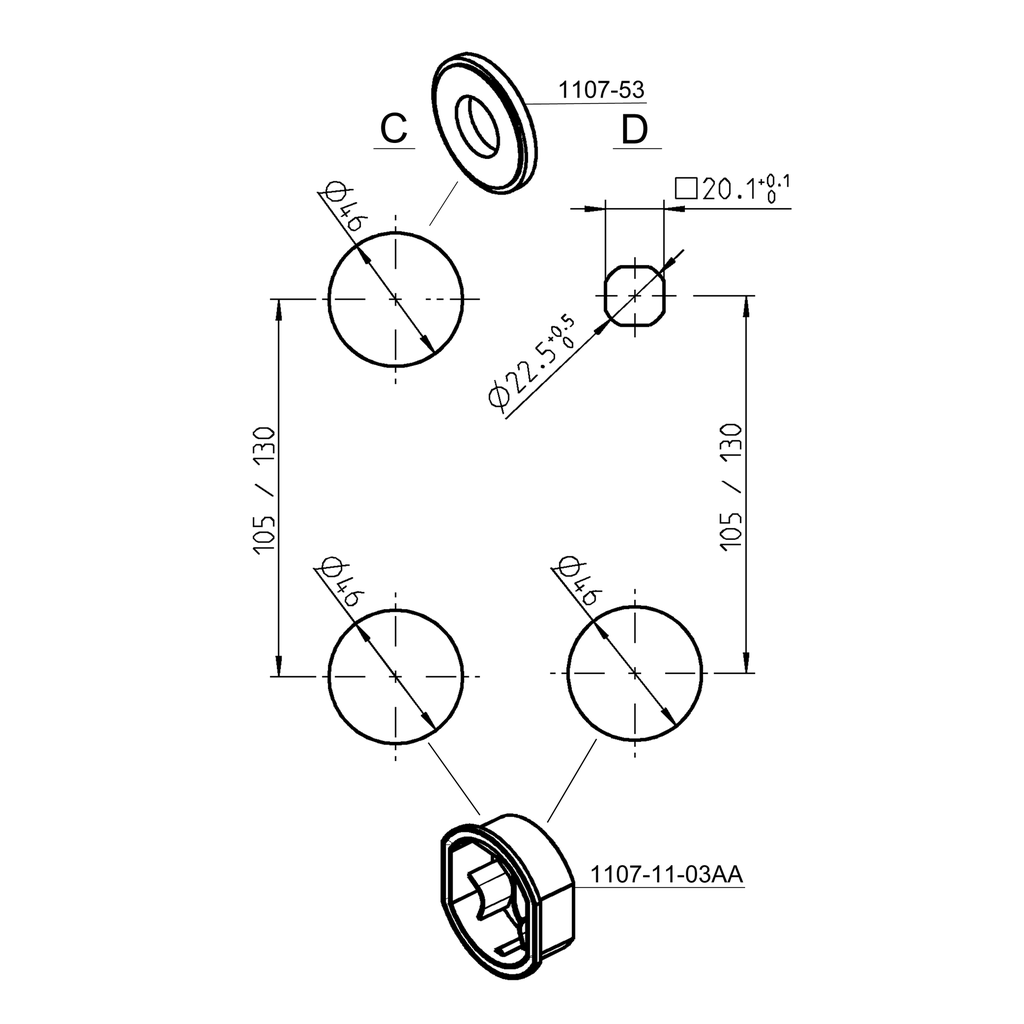

When using the adapter plate or the adapter ring the max. door gauge (Ts) will be 6 mm (for cut out variant A and C).
Note:
When using door gauge (Ts) > 4 mm standard round rods cannot be used!
Order screw set 1107-U170 for Ts = 4 - 12 mm separately
Akeneo Note:
Sealable: Yes, bore hole in dish necessary
Internal Reference:
1317-U421-01
Product Type:
Swinghandle, Lifthandle
Program:
1317
Catalog sheet:
3AB-140
Material of the module :
Polyamide GF
Surface of the module:
black
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point
Number of Locking:
One locking set
Article with property rights:
Yes
Mounting Positions :
Inside the sealing
Foamed gasket:
Yes
Handle Art(1):
Swinghandle
Integrated scratch protection:
Yes

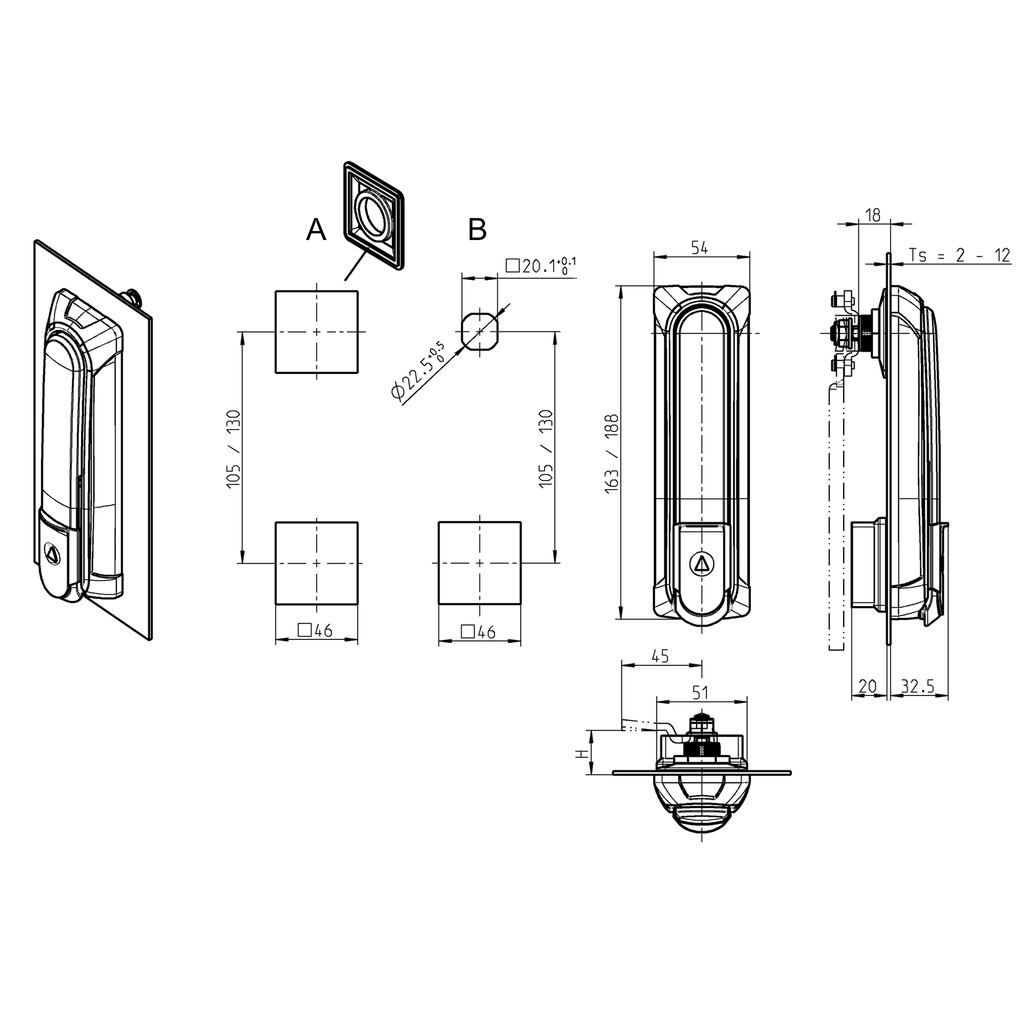

Suitable for door thickness from:
2 mm
Suitable for door thicknesses up to:
12 mm
Sealable:
Yes
Locking set:
Profile half cylinder A = 30
Swivel Handle:
32.5 mm
Pan Handle Length:
188 mm
Door Version :
Left,Right
Locking components:
Cam
