Double cylinder swinghandle "short" for profile half cylinder 40 mm and 45 mm (A = 30 mm and 35 mm), Polyamide GF black
Double cylinder swinghandle "long" for profile half cylinder 40 mm and 45 mm (A = 30 mm and 35 mm), Polyamide GF black

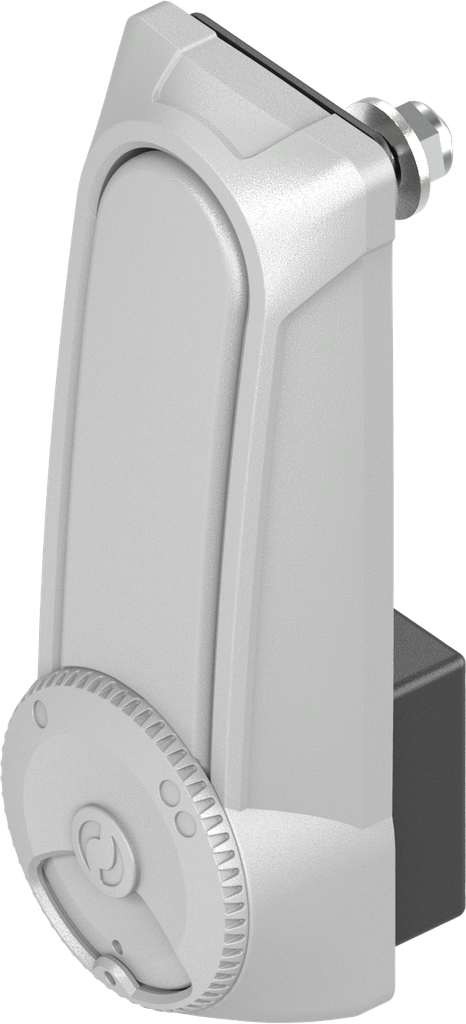

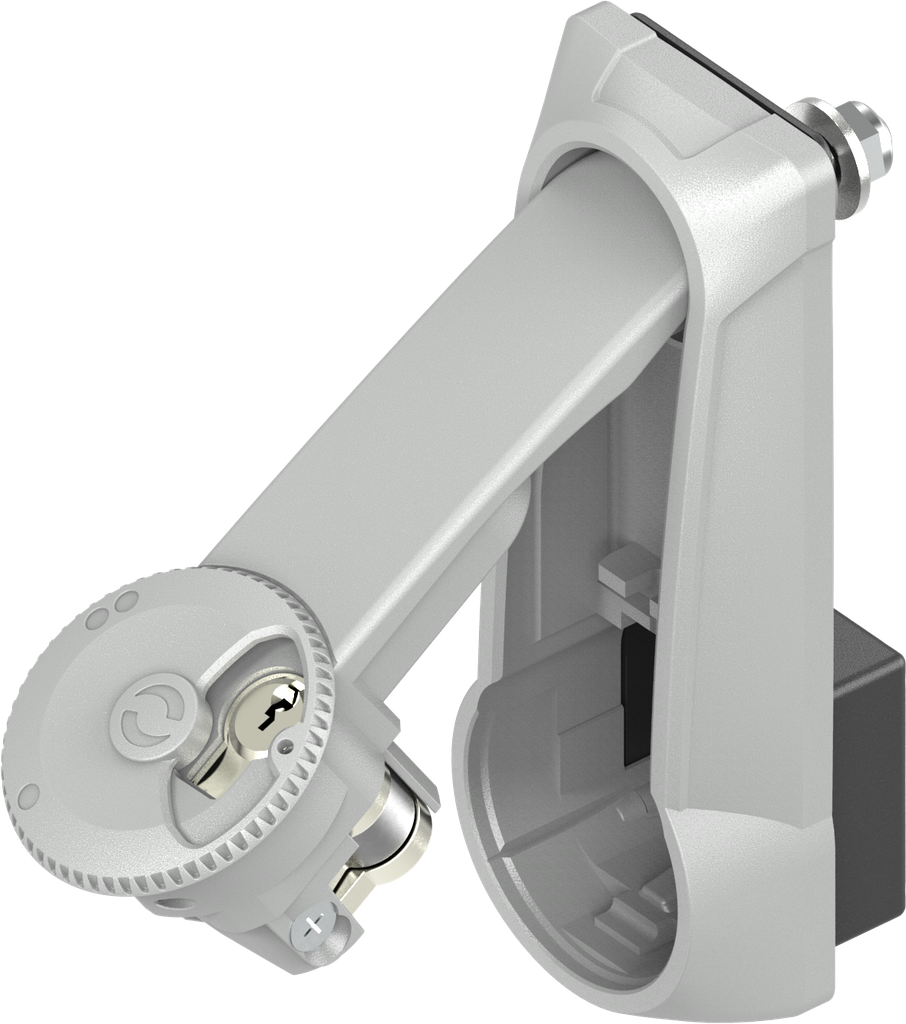

Double cylinder swinghandle "short" for profile half cylinder 40 mm and 45 mm (A = 30 mm and 35 mm), Polyamide GF grey RAL 7038; 1317-U301-BO
for cam
Product information:
For door gauge (Ts) > 6 mm standard round rods cannot be used!
Attention: when using the adapter ring the max. door gauge (Ts) will be 6 mm
Profile half cylinder not in scope of deliveryAkeneo Note:
Ts > 6 - 12 mm on request
Internal Reference:
1317-U301-BO
Product Type:
Swinghandle, Lifthandle
Program:
1317
Catalog sheet:
3AB-160
Material of the module :
Polyamide GF
Surface of the module:
grey RAL 7038
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point
Number of Locking:
Two locking sets, 1-key-operation
Article with property rights:
Yes
Attachment of the trough:
Screw-on cap IP 65
Mounting Positions :
Inside the sealing
Foamed gasket:
Yes
Handle Art(1):
Swinghandle
Integrated scratch protection:
Yes
Without locking set:
Profile half cylinder, blind plug without spring-loaded ball
Suitable for door thickness from:
2 mm
Suitable for door thicknesses up to:
12 mm
Sealable:
Yes
Locking set:
Profile half cylinder A = 30,Profile half cylinder A = 35
locking set cover:
Yes
Key Removable:
Key can be withdrawn in any handle position
Swivel Handle:
36 mm
Pan Handle Length:
165 mm
Door Version :
Left,Right
Locking components:
Cam
