Swinghandle with round cylinder, keyed EK 333, Polyamide GF black
Swinghandle with round cylinder, keyed EK 333, Polyamide GF black
Clip-in viewing window with seal, Polycarbonate crystal clear
Clip-in viewing window with seal, Polycarbonate crystal clear

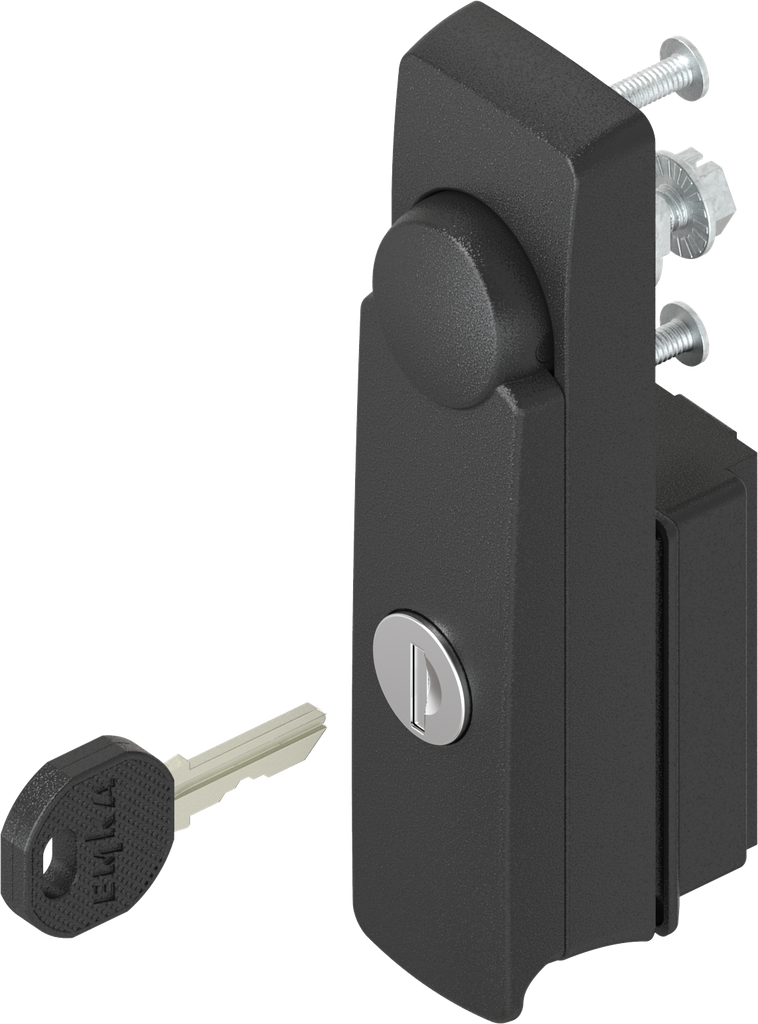

Swinghandle, small version, with round cylinder, keyed EK 333, Polyamide GF black; 1240-U1

https://www.emka.com/products/1240-u1 https://www.emka.com/web/image/product.template/65174/image_1920?unique=218daa2

    This combination does not exist.

    Inside the sealing Grounding possible Foamed seal Protection class IP 65 Left Right
    Contact Us
    Internal Reference: 1240-U1
    Product Type: Swinghandle, Lifthandle
    Program: 1240
    Catalog sheet: 3G-520
    Material of the module : Polyamide GF
    Surface of the module: black
    Door return variable: Yes
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Number of Locking: One locking set
    Attachment of the trough: Screw-on cap IP 65
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    Handle Art(1): Swinghandle
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Round Cylinder Type: EMKA EK, keyed EK 333
    Locking set: Round cylinder
    Swivel Handle: 22 mm
    Pan Handle Length: 120 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Locking components: Rod control,Bearing bush with cam
    No Specifications
    View All Products
    Keys

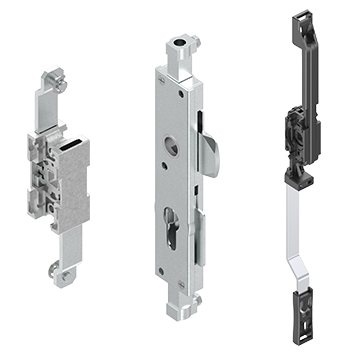

    Rod control
    Bearing bush
    Here you can find the product data sheets and CAD files of this product
