Escutcheon short with L-handle, keyed EK 333, Polyamide black and zinc die black powder-coated
Escutcheon short with L-handle, keyed EK 333, Polyamide black and zinc die black powder-coated
Escutcheon long with T-handle, non-keyed, Polyamide black and zinc die black powder-coated
Escutcheon long with T-handle, non-keyed, Polyamide black and zinc die black powder-coated

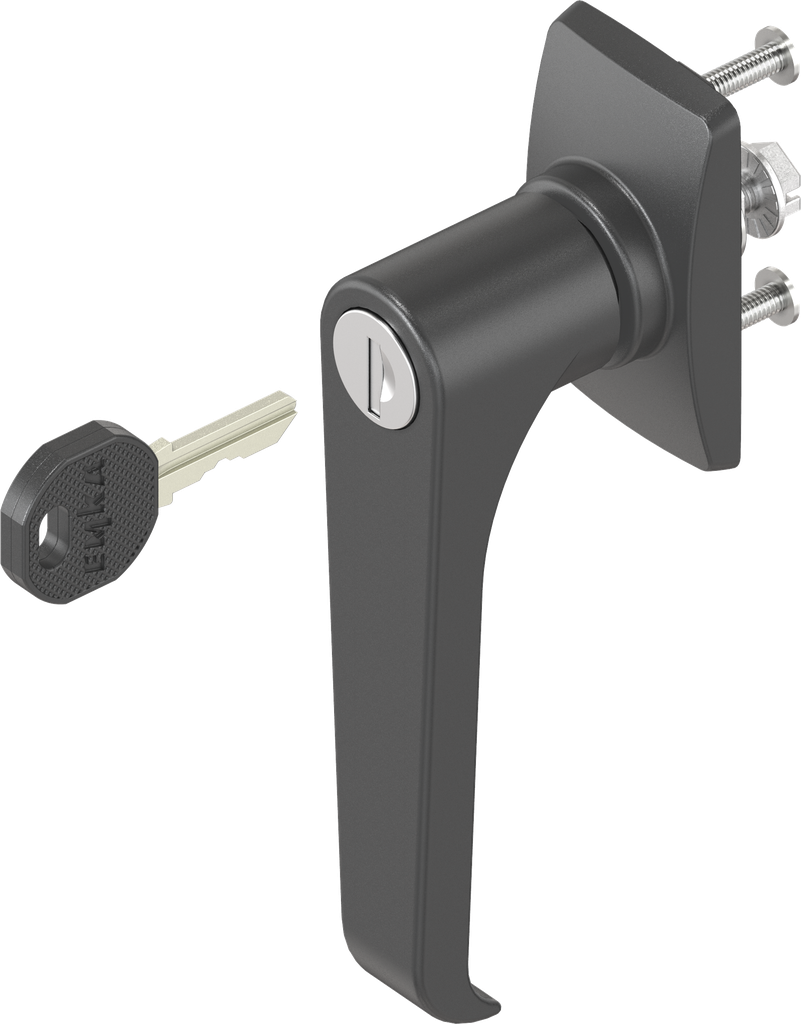

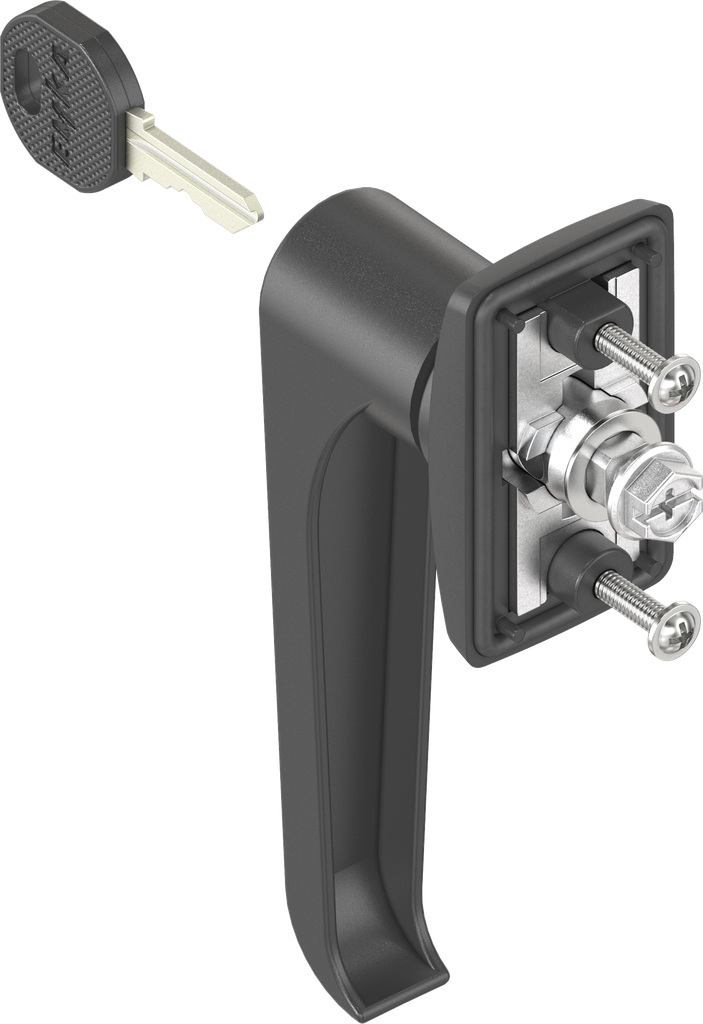

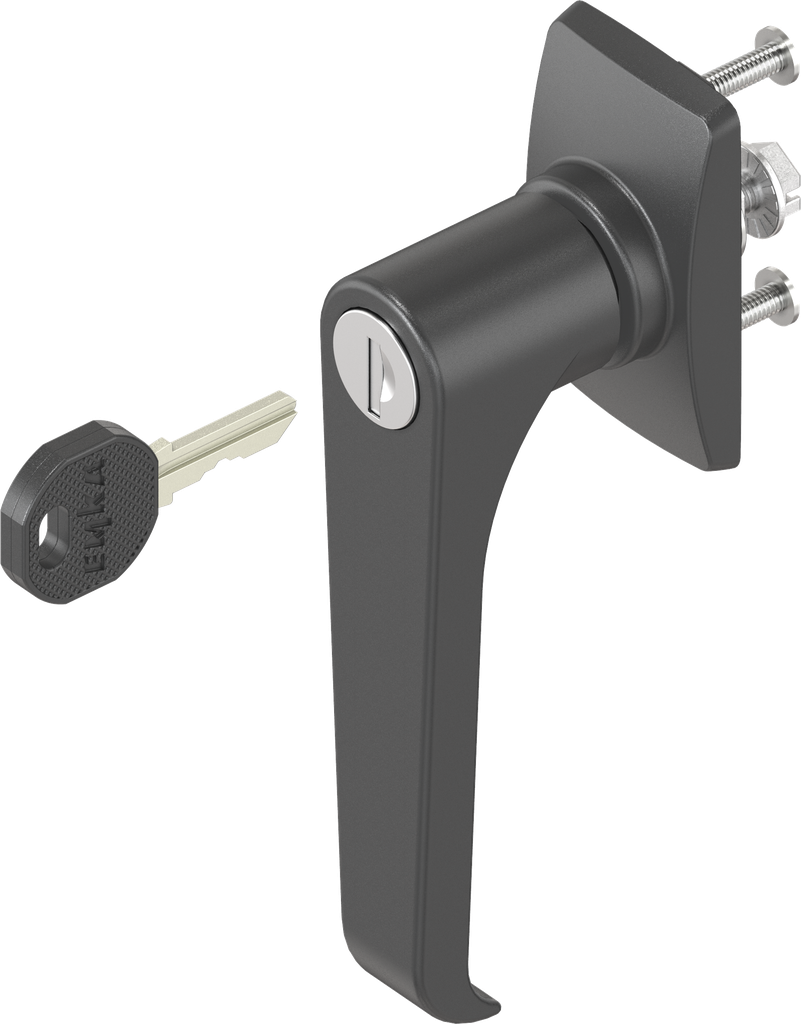

Escutcheon short with L-handle, keyed different, Polyamide black and zinc die black powder-coated; 1223-U18

https://www.emka.com/products/1223-u18 https://www.emka.com/web/image/product.template/229649/image_1920?unique=20e02dd

    This combination does not exist.

    Inside the sealing Grounding possible Foamed seal Protection class IP 65
    Contact Us
    Internal Reference: 1223-U18
    Product Type: Escutcheon
    Program: 1223
    Catalog sheet: 3G-180
    Material of the module : Polyamide black and zinc die
    Surface of the module: black powder-coated
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    Handle Art: L-handle
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Round Cylinder Type: EMKA EK, differently keyed
    Locking means key tag: L-handle keyed different
    Key Tag Size: short
    Locking components: Rod control,Bearing bush with cam
    No Specifications
    View All Products
    Keys
    Rod control
    Bearing bush

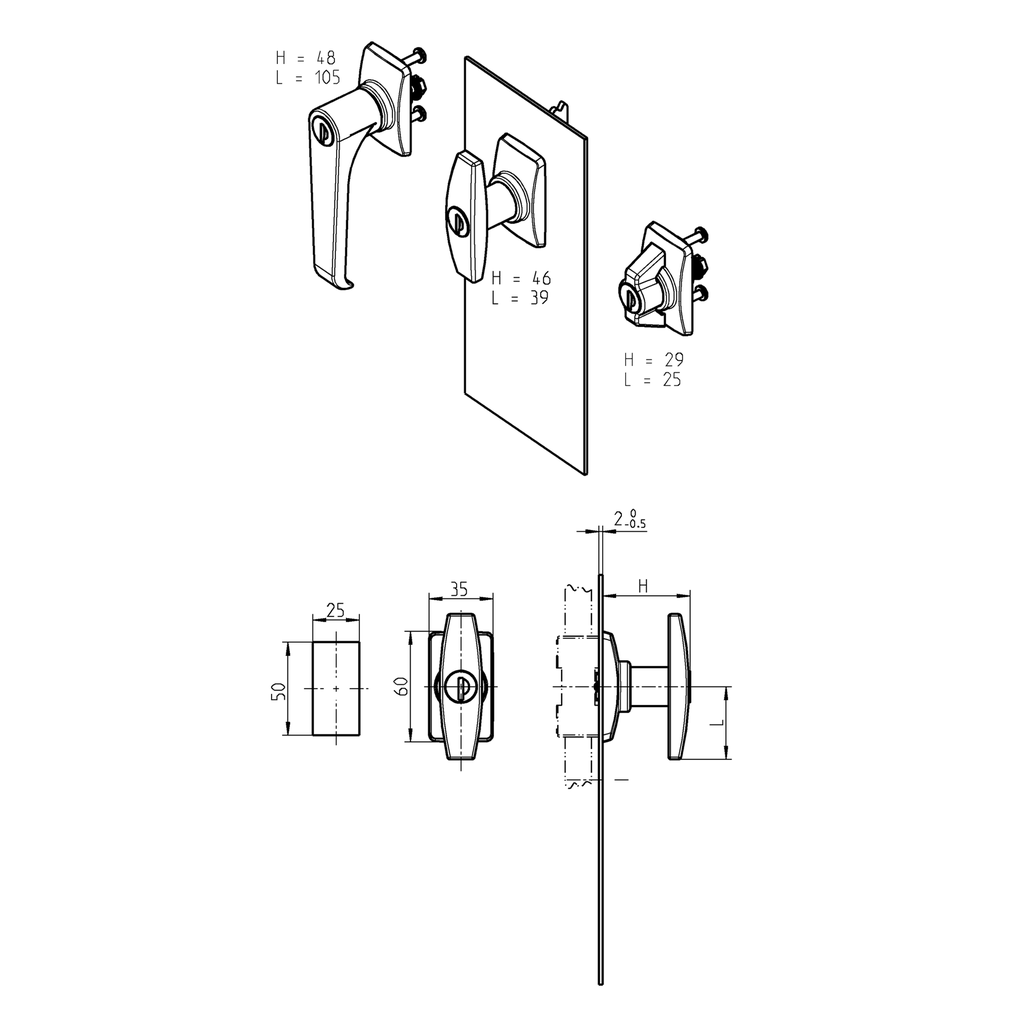

    Here you can find the product data sheets and CAD files of this product
