Escutcheon short for insert square, triangular, Daimler Benz and slot, Polyamide GF black
Escutcheon short for insert square, triangular, Daimler Benz and slot, Polyamide GF black
Escutcheon long for insert square, triangular, Daimler Benz and slot, Polyamide GF black
Escutcheon long for insert square, triangular, Daimler Benz and slot, Polyamide GF black

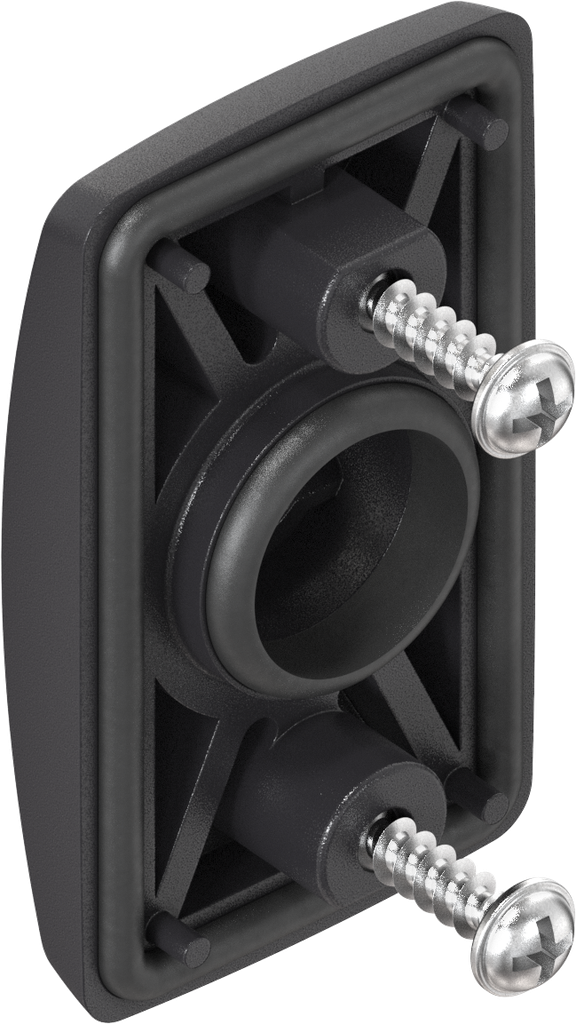

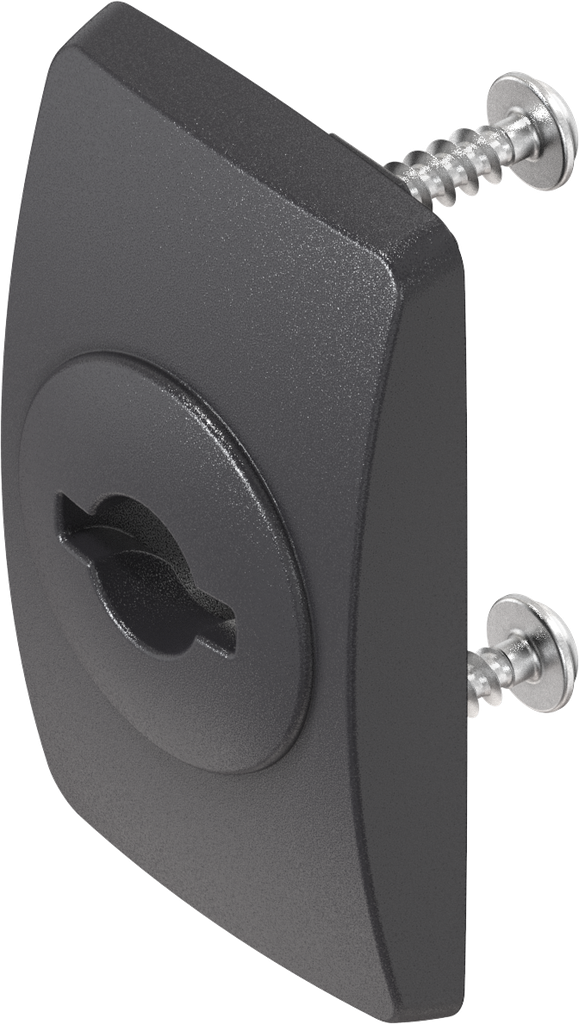

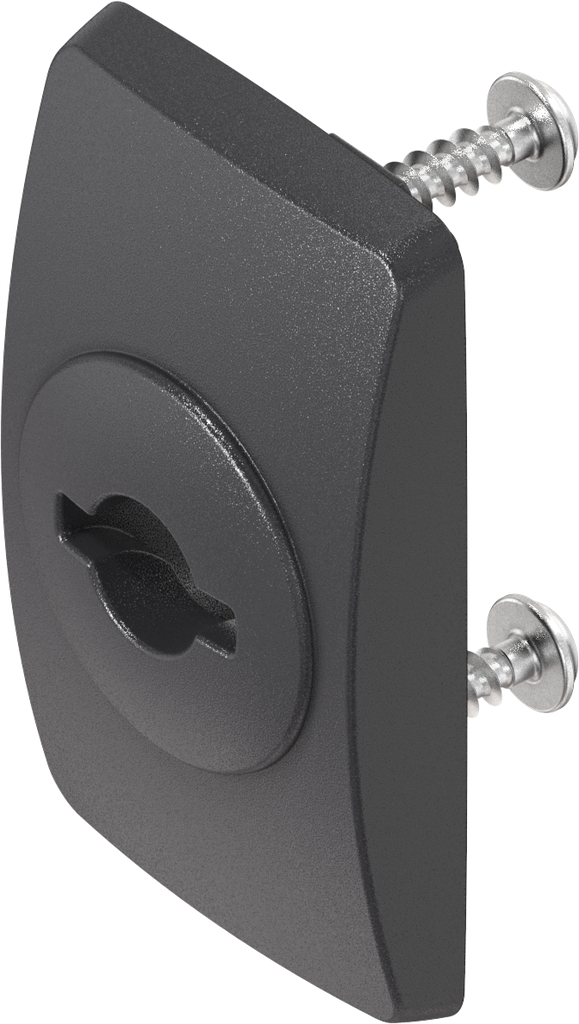

Escutcheon short for insert double bit, Polyamide GF black; 1221-U23

https://www.emka.com/products/1221-u23 https://www.emka.com/web/image/product.template/65127/image_1920?unique=3b51444

    This combination does not exist.

    Inside the sealing Grounding possible Foamed seal Protection class IP 65
    Contact Us
    Internal Reference: 1221-U23
    Product Type: Escutcheon
    Program: 1221
    Catalog sheet: 3G-120
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes

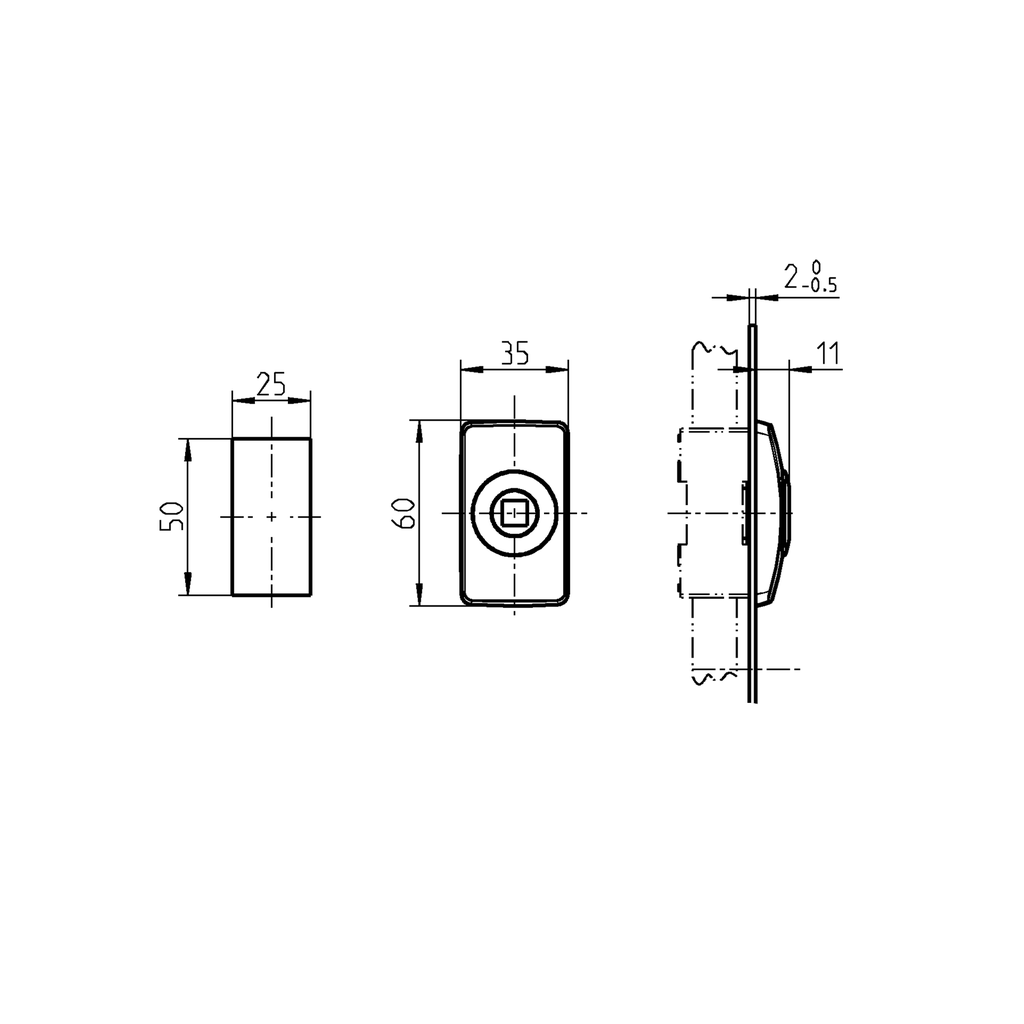

    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 2 mm
    Locking means key tag: Insert double bit
    Key Tag Size: short
    Locking components: Rod control,Bearing bush with cam
    No Specifications
    View All Products
    Rod control
    Insert
    Bearing bush
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3G-120
    Product data sheet
    CAD file | 1221-U23_igs
    CAD file | 1221-U23_stp
