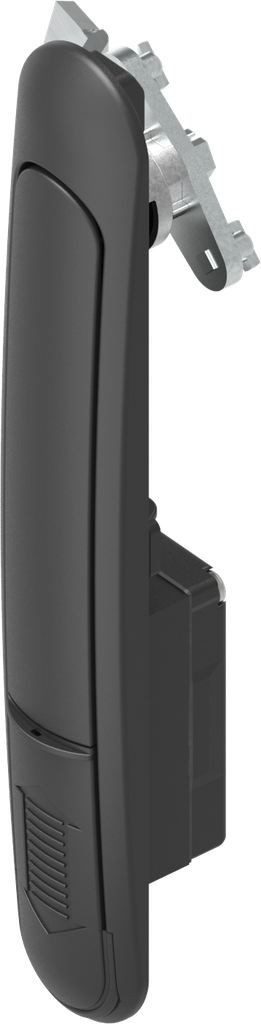

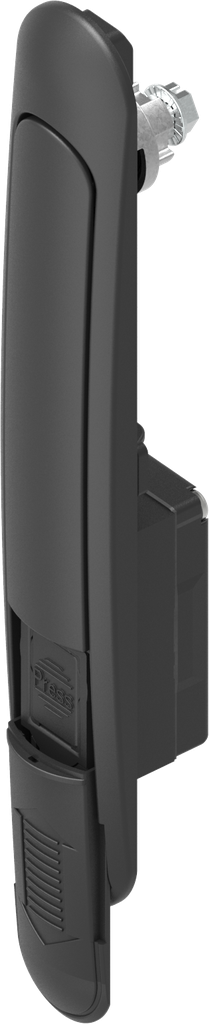

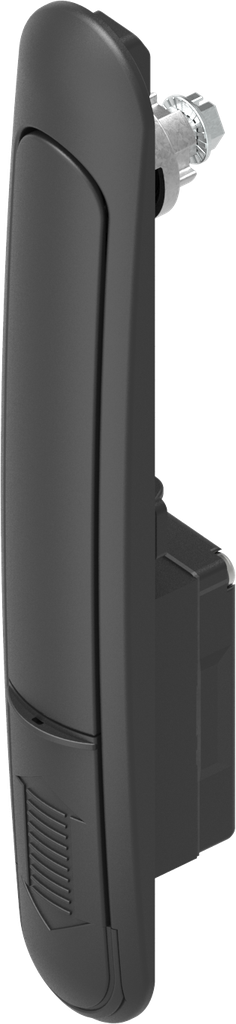

Swinghandle 1185 for rod control, Polyamide GF black
Product information:

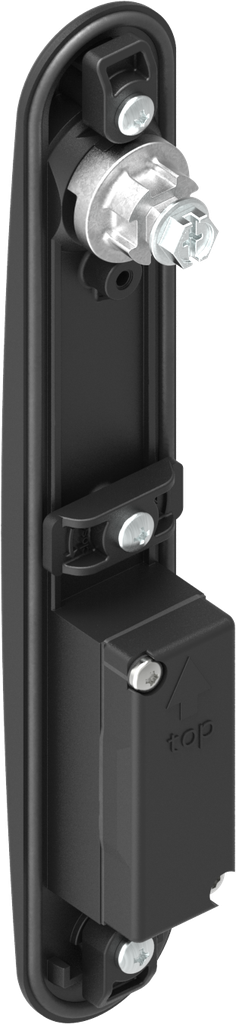

Swinghandle without locking set
Assembly instruction:

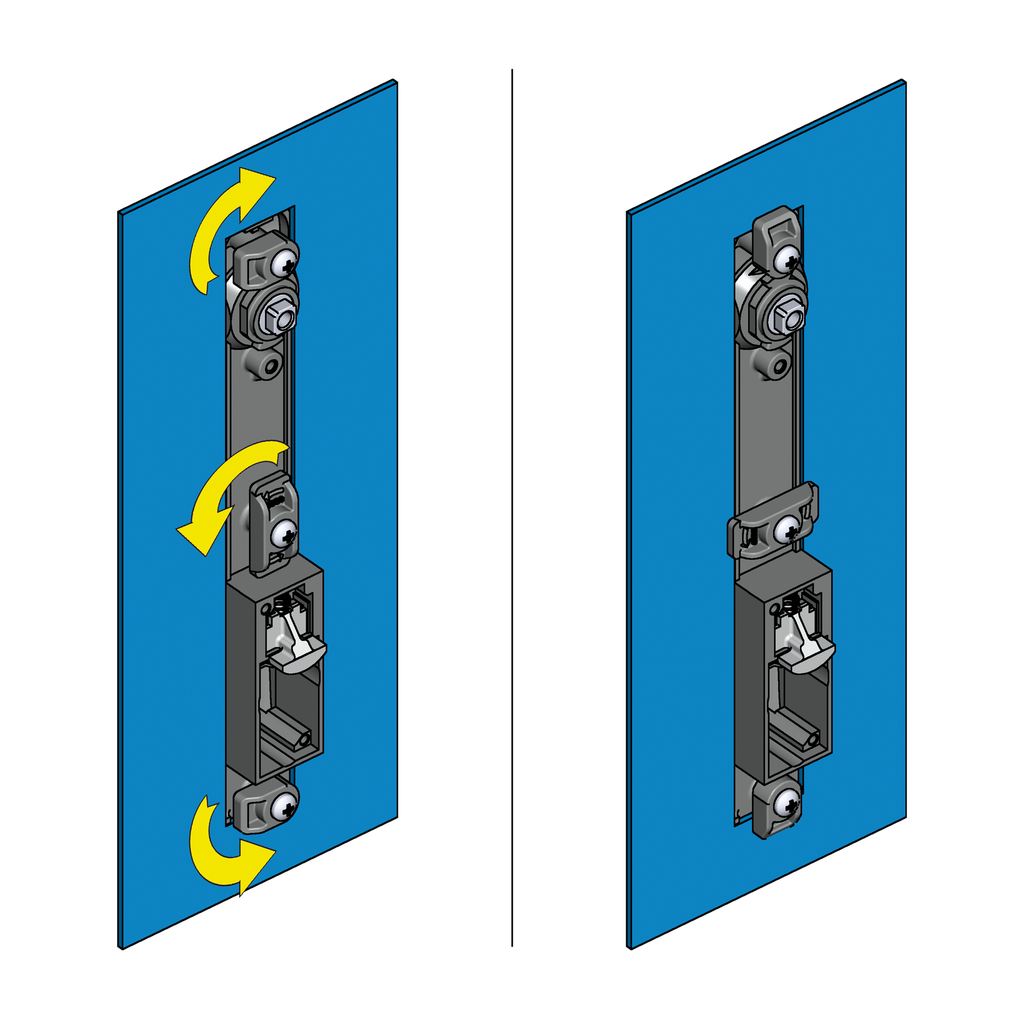

Turn pre-assembled fixing bridges by 90° and tighten
Internal Reference:
1185-U1
Product Type:
Swinghandle, Lifthandle
Program:
1185
Catalog sheet:
3E-520
Material of the module :
Polyamide GF
Surface of the module:
black
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point
Number of Locking:
One locking set
Mounting Positions :
Inside the sealing
Foamed gasket:
Yes

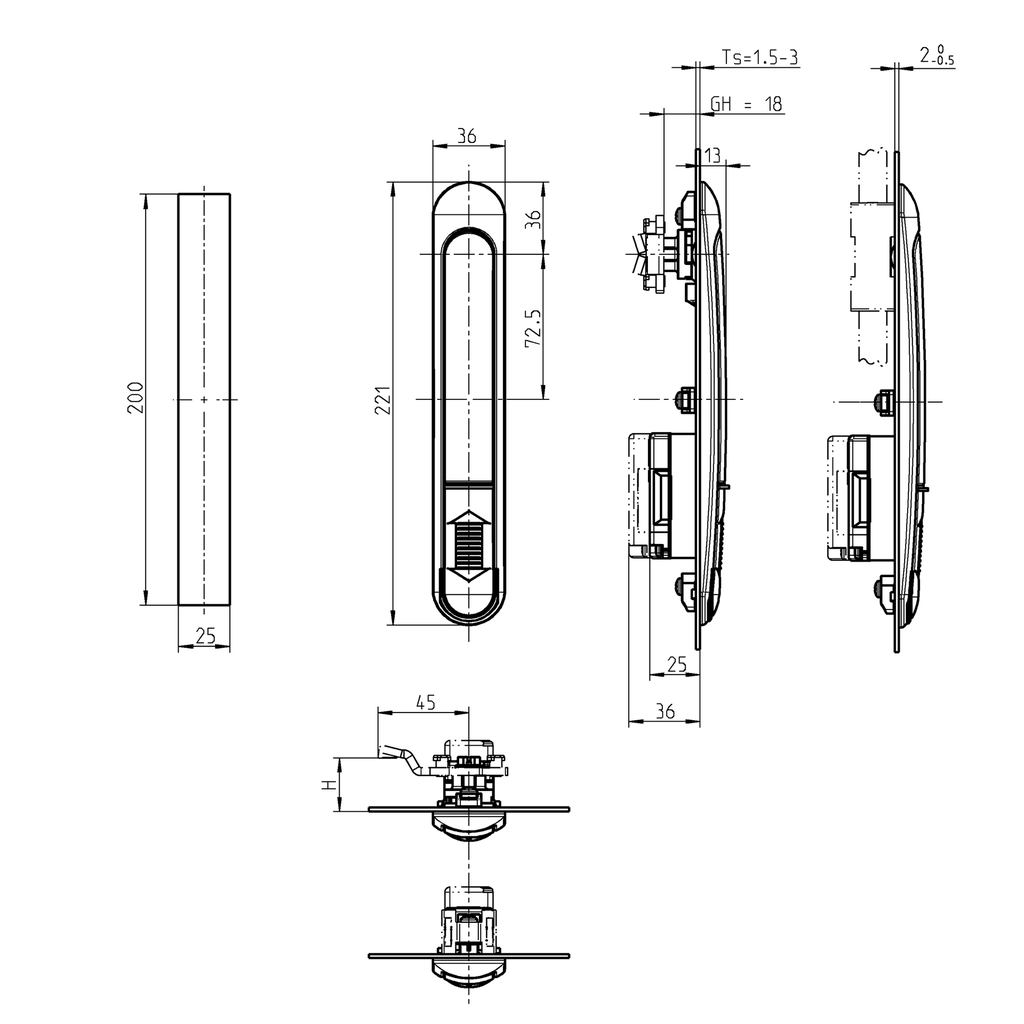

GH Mass:
18 mm
Handle Art(1):
Swinghandle
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
3 mm

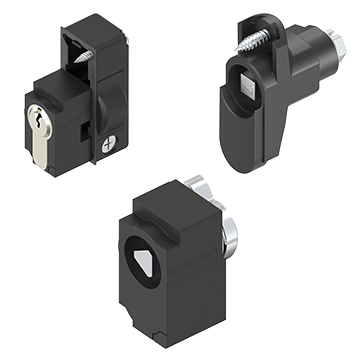

Locking set modular technology:
Profile half cylinder with cap, A = 30, mounted at the dish,ASSA cylinder with cap, mounted at the dish,KABA cylinder with cap, mounted at the dish,Round cylinder with cap, mounted at the dish,Insert with cap, mounted at the dish,Push button with cap, mounted at the dish
locking set cover:
Yes
Swivel Handle:
13 mm
Pan Handle Length:
221 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Cam
