Swinghandle 1154 for profile half cylinder 40 mm (A = 30 mm), Zinc die black powder-coated
Swinghandle 1154 for profile half cylinder 40 mm (A = 30 mm), Zinc die black powder-coated

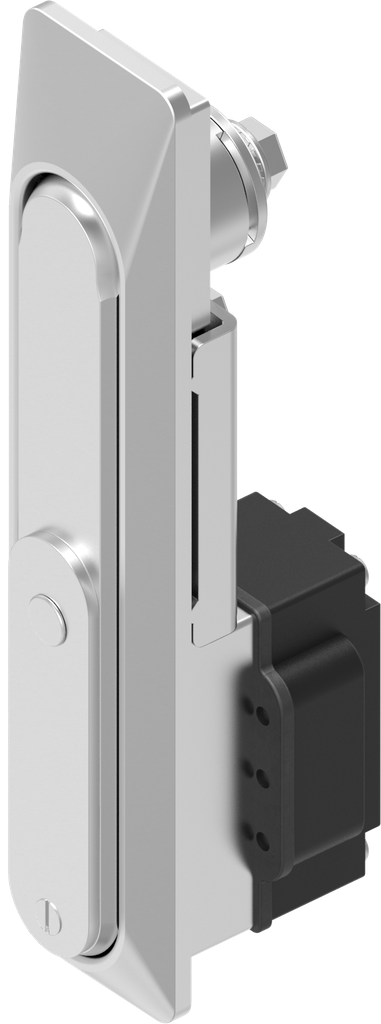

Swinghandle 1154 with RC2 for profile half cylinder 40 mm (A = 30 mm), Stainless steel AISI 316
Swinghandle 1154 with RC2 for profile half cylinder 40 mm (A = 30 mm), Stainless steel AISI 316

Swinghandle 1154 with RC2 for profile half cylinder 40 mm (A = 30 mm), Stainless steel AISI 316; 1154-U2

https://www.emka.com/products/1154-u2 https://www.emka.com/web/image/product.template/64996/image_1920?unique=dd5ae5c


    This combination does not exist.

    Inside the sealing Grounding possible Foamed seal Protection class IP 65 DIN EN 1630 class RC2 / WK2 (resistivity) Left Right


    Product information:

    Swinghandle suitable against vandalism

    DIN EN 45545-3 class E60 (fire protection) will be achieved with the
    cap made of stainless steel AISI 316 1154-05-PH.

    Internal Reference: 1154-U2
    Product Type: Swinghandle, Lifthandle
    Program: 1154
    Catalog sheet: 3C-220
    Material of the module : Stainless steel AISI 316
    Door return variable: Yes
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Number of Locking: One locking set
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes

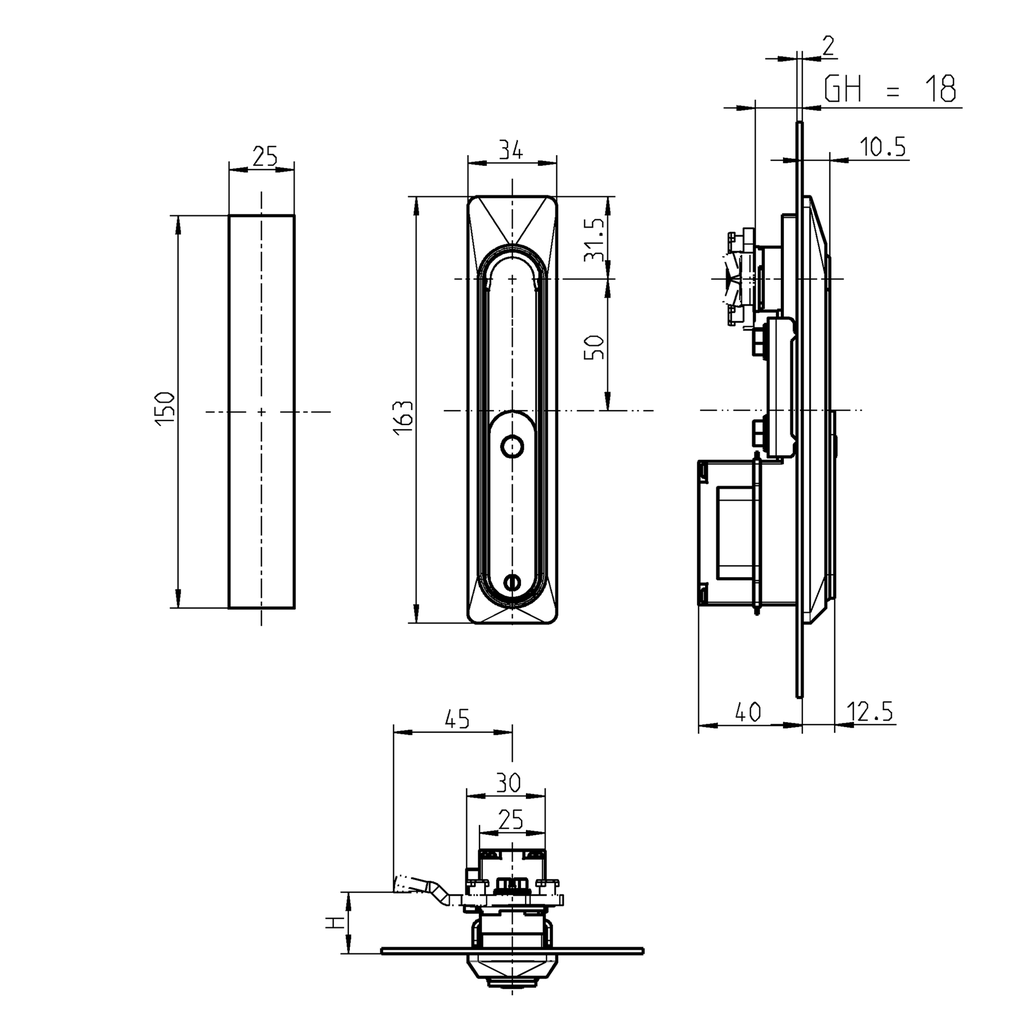

    GH Mass: 18 mm
    Handle Art(1): Swinghandle
    Without locking set: Profile half cylinder, blind plug without spring-loaded ball,Profily half cylinder blind plug with spring-loaded ball
    Test according to RC2 DIN EN 1630 (WK2 DIN V ENV 1630): Yes
    Locking set: Profile half cylinder A = 30
    locking set cover: Yes
    Swivel Handle: 12.5 mm
    Pan Handle Length: 163 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Door thickness: 2 mm
    Locking components: Cam
    No Specifications
    View All Products
    Cam
    Rod control
    Profile half cylinder

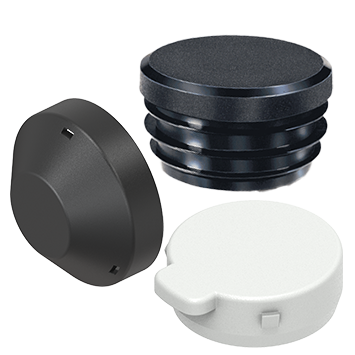

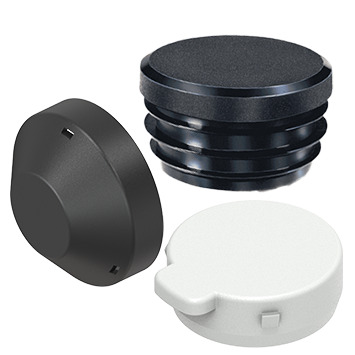

    Cap
    Here you can find the product data sheets and CAD files of this product
