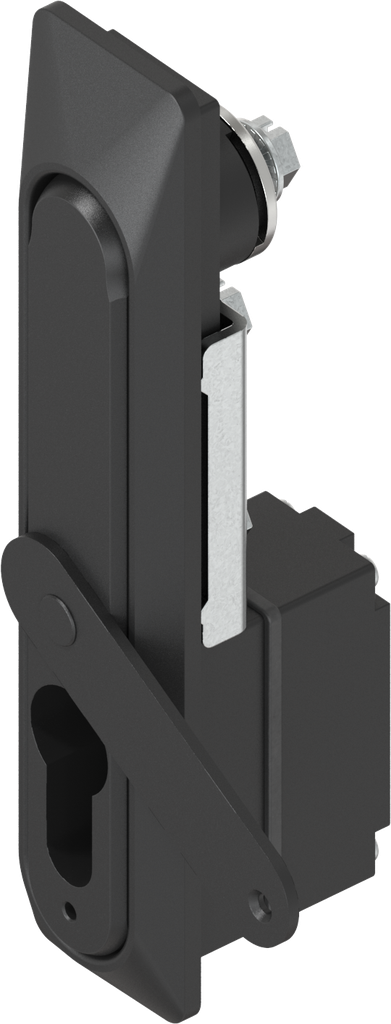

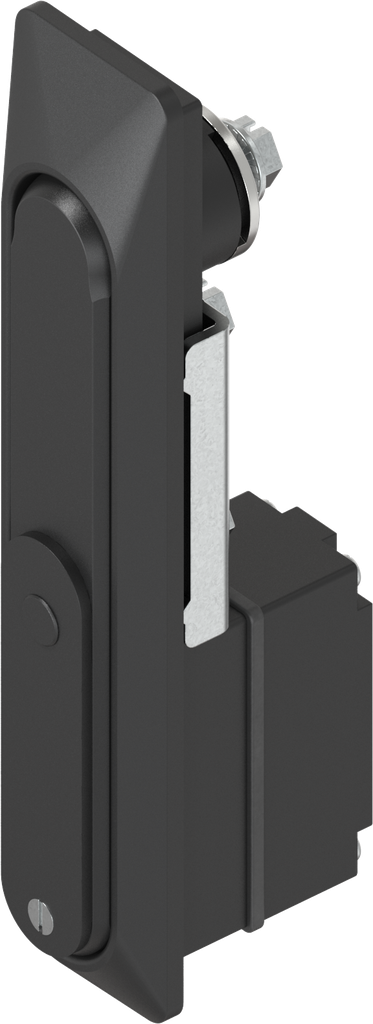

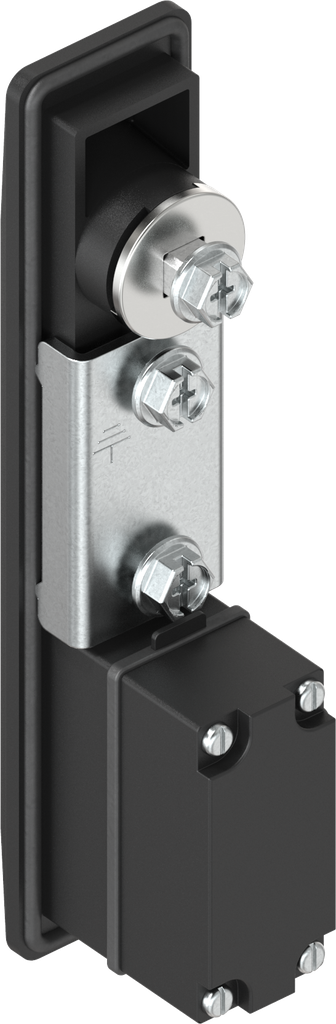

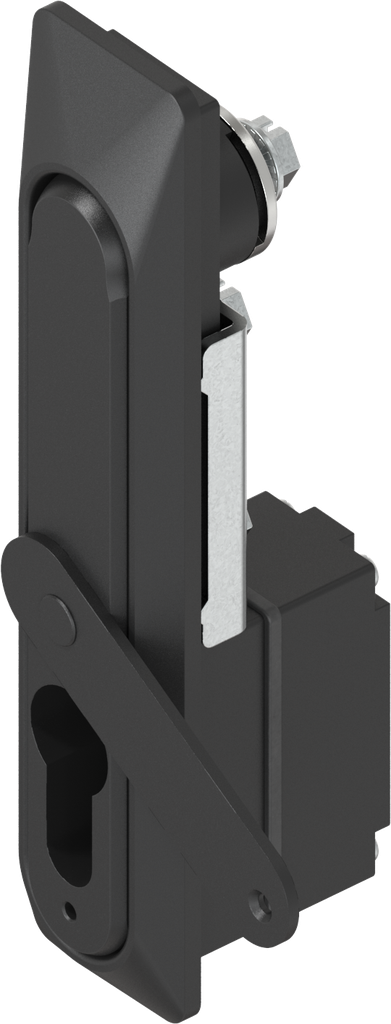

Swinghandle 1153 for profile half cylinder 40 mm (A = 30 mm), Zinc die black powder-coated
Swinghandle 1154 with RC2 for profile half cylinder 40 mm (A = 30 mm), Stainless steel AISI 316
Product information:
Vandalism resistant swinghandle
Internal Reference:
1154-U1
Product Type:
Swinghandle, Lifthandle
Program:
1154
Catalog sheet:
3C-220
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point
Number of Locking:
One locking set
Mounting Positions :
Inside the sealing
Grounding possible:
Yes
Foamed gasket:
Yes

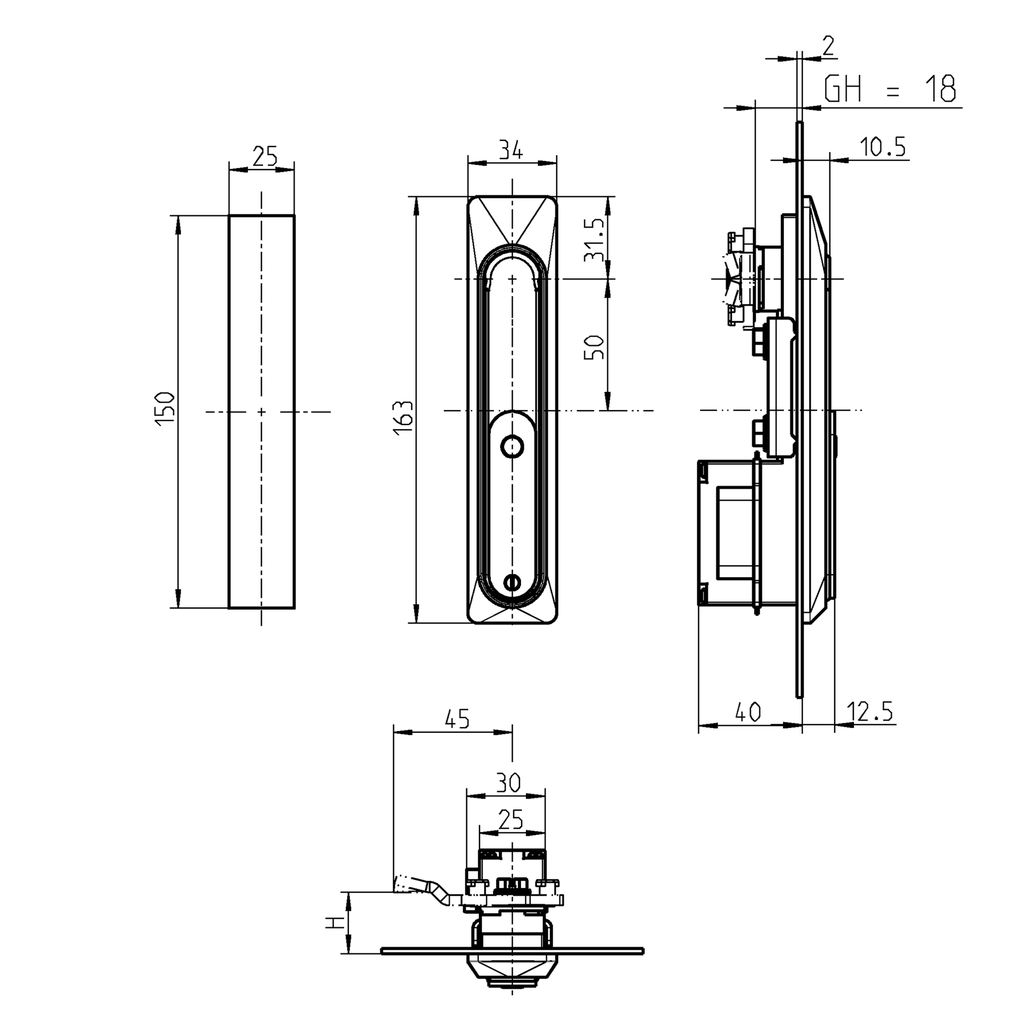

GH Mass:
18 mm
Handle Art(1):
Swinghandle
Without locking set:
Profile half cylinder, blind plug without spring-loaded ball,Profily half cylinder blind plug with spring-loaded ball
Locking set:
Profile half cylinder A = 30
locking set cover:
Yes
Swivel Handle:
12.5 mm
Pan Handle Length:
163 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Door thickness:
2 mm
Locking components:
Cam
