Swinghandle 1153 for profile half cylinder 40 mm (A = 30 mm), Zinc die black powder-coated
Swinghandle 1153 for profile half cylinder 40 mm (A = 30 mm), Zinc die black powder-coated
Swinghandle 1154 for profile half cylinder 40 mm (A = 30 mm), Zinc die black powder-coated
Swinghandle 1154 for profile half cylinder 40 mm (A = 30 mm), Zinc die black powder-coated

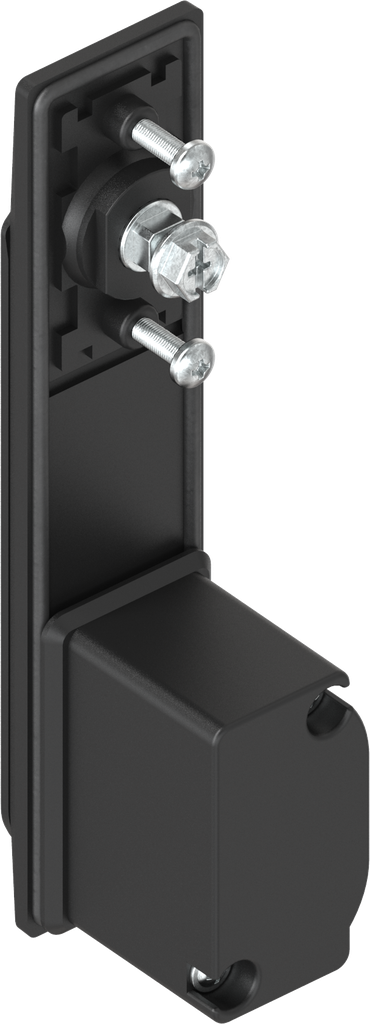

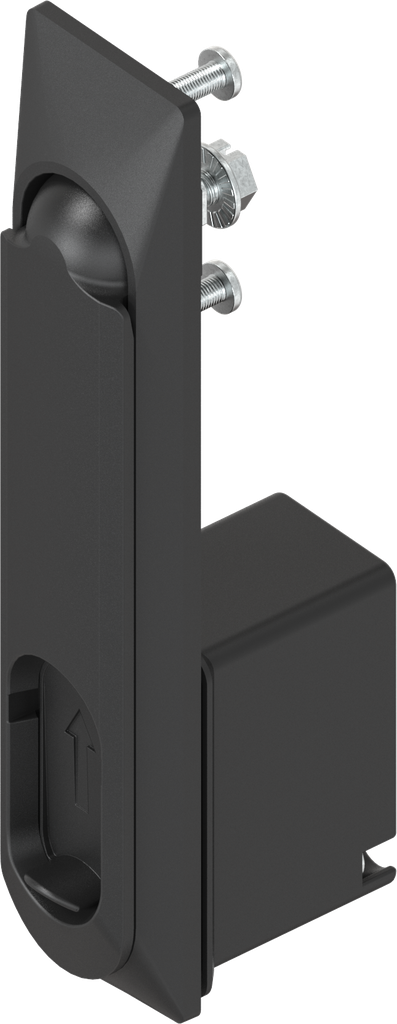

Swinghandle 1153 for profile half cylinder 40 mm (A = 30 mm), Zinc die black powder-coated; 1153-U2

https://www.emka.com/products/1153-u2 https://www.emka.com/web/image/product.template/64963/image_1920?unique=e281ecc

for rod control


    This combination does not exist.

    Inside the sealing Grounding possible Foamed seal Protection class IP 65 Left Right


    Product information:

    Swinghandle can only be used inside the seal

    Internal Reference: 1153-U2
    Product Type: Swinghandle, Lifthandle
    Program: 1153
    Catalog sheet: 3C-320
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Door return variable: Yes
    Number of Possible Locking Points: 2 points, 3 point
    Number of Locking: One locking set
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    Handle Art(1): Swinghandle
    Without locking set: Profile half cylinder, blind plug without spring-loaded ball,Profily half cylinder blind plug with spring-loaded ball
    Locking set: Profile half cylinder A = 30
    locking set cover: Yes
    Swivel Handle: 14 mm
    Pan Handle Length: 163 mm
    Door revolvable / reversible: Yes
    Door Version : Left,Right
    Door thickness: 2 mm
    Locking components: Rod control
    No Specifications
    View All Products
    Profile half cylinder
    Rod control

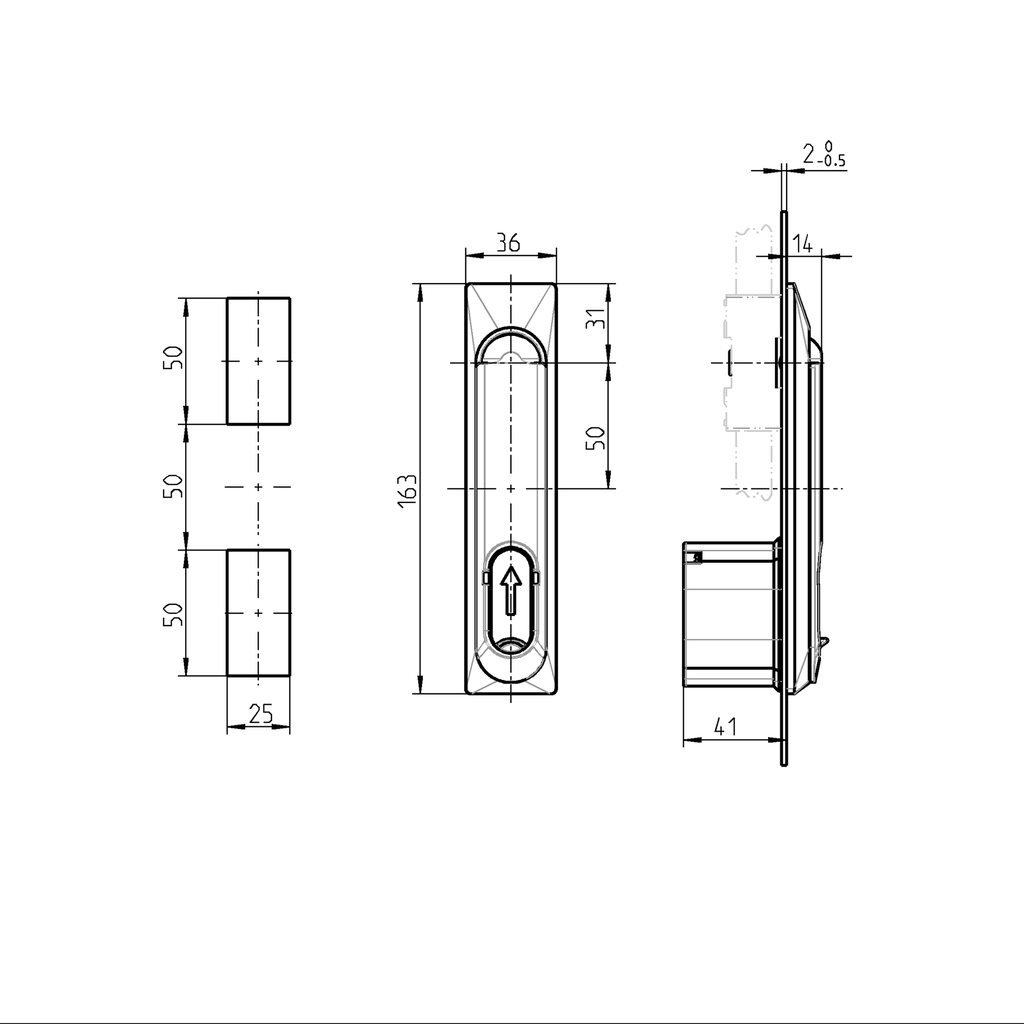

    Here you can find the product data sheets and CAD files of this product
