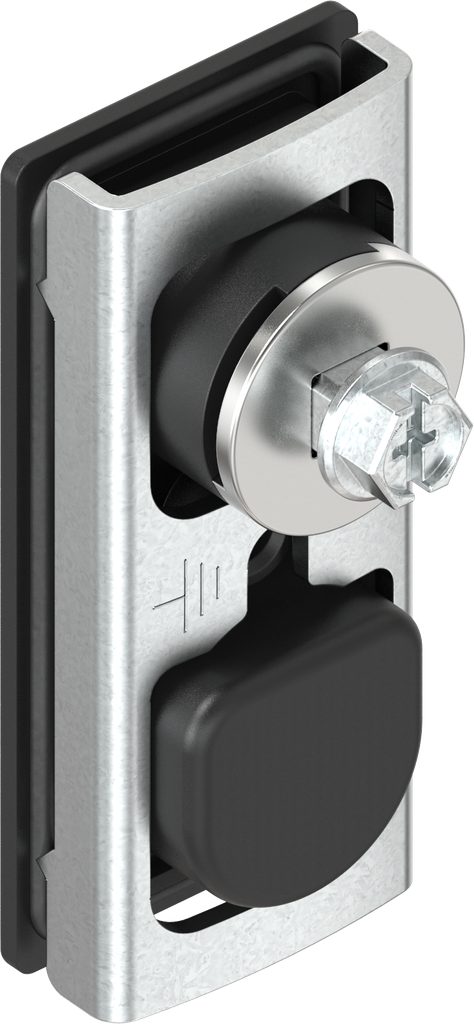

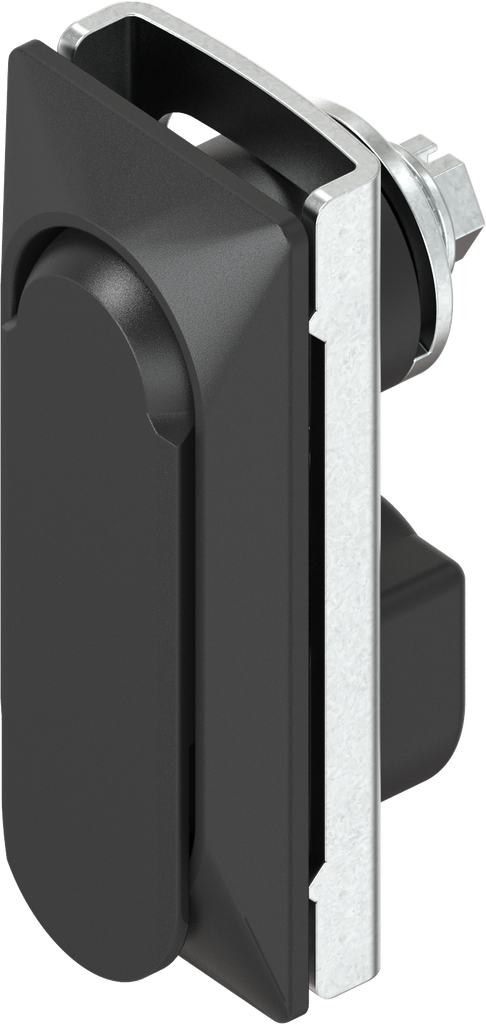

Swinghandle 1152, keyed EK 333, Zinc die black powder-coated
Swinghandle 1152, keyed different, Zinc die black powder-coated
Product information:
Polyamide version on request.
Internal Reference:
1152-U3
Product Type:
Swinghandle, Lifthandle
Program:
1152
Catalog sheet:
3C-520
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Door return variable:
Yes
Number of Possible Locking Points:
1 point
Number of Locking:
No locking set, blind
Mounting Positions :
Inside the sealing
Grounding possible:
Yes
Foamed gasket:
Yes
GH Mass:
20 mm
Handle Art(1):
Swinghandle
Locking set:
No locking set, blind
Swivel Handle:
9 mm
Pan Handle Length:
80 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Door thickness:
2 mm
Locking components:
Cam
No Specifications
View All Products

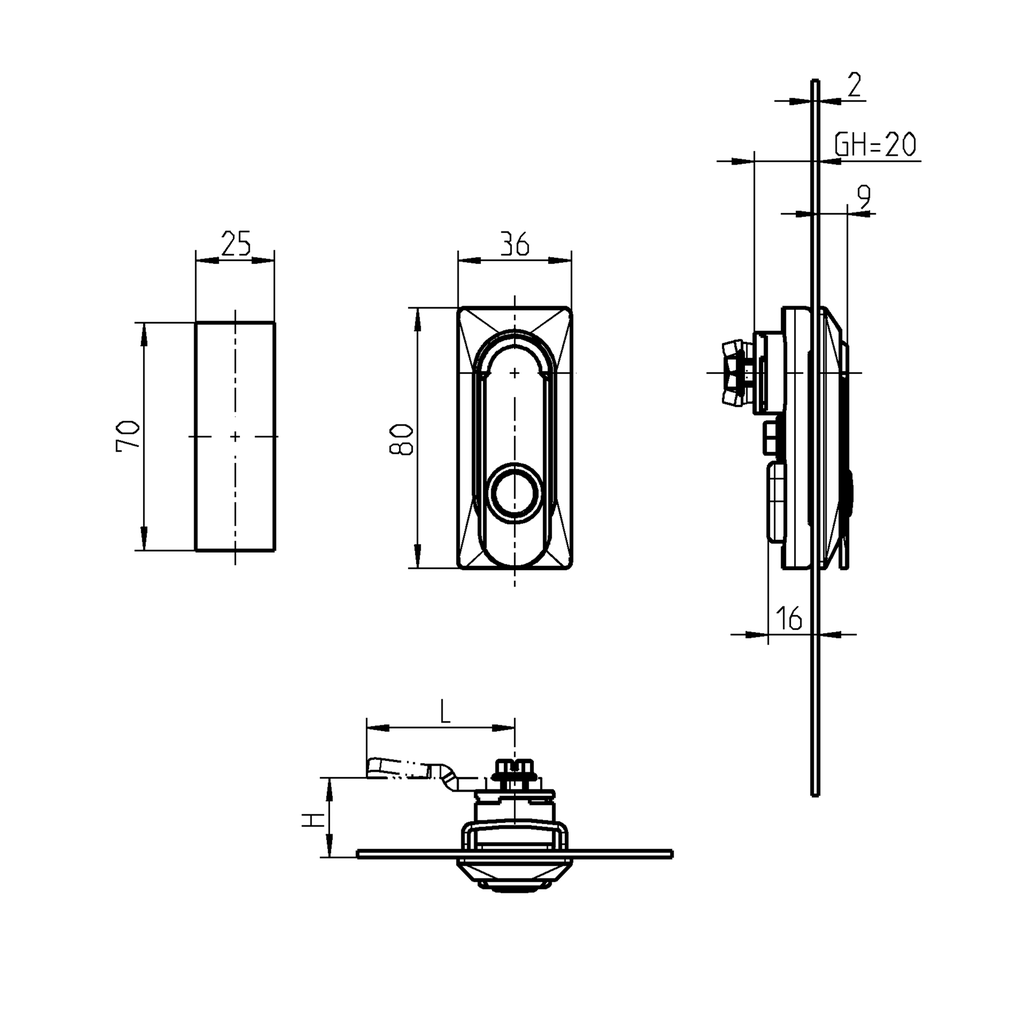

Here you can find the product data sheets and CAD files of this product
