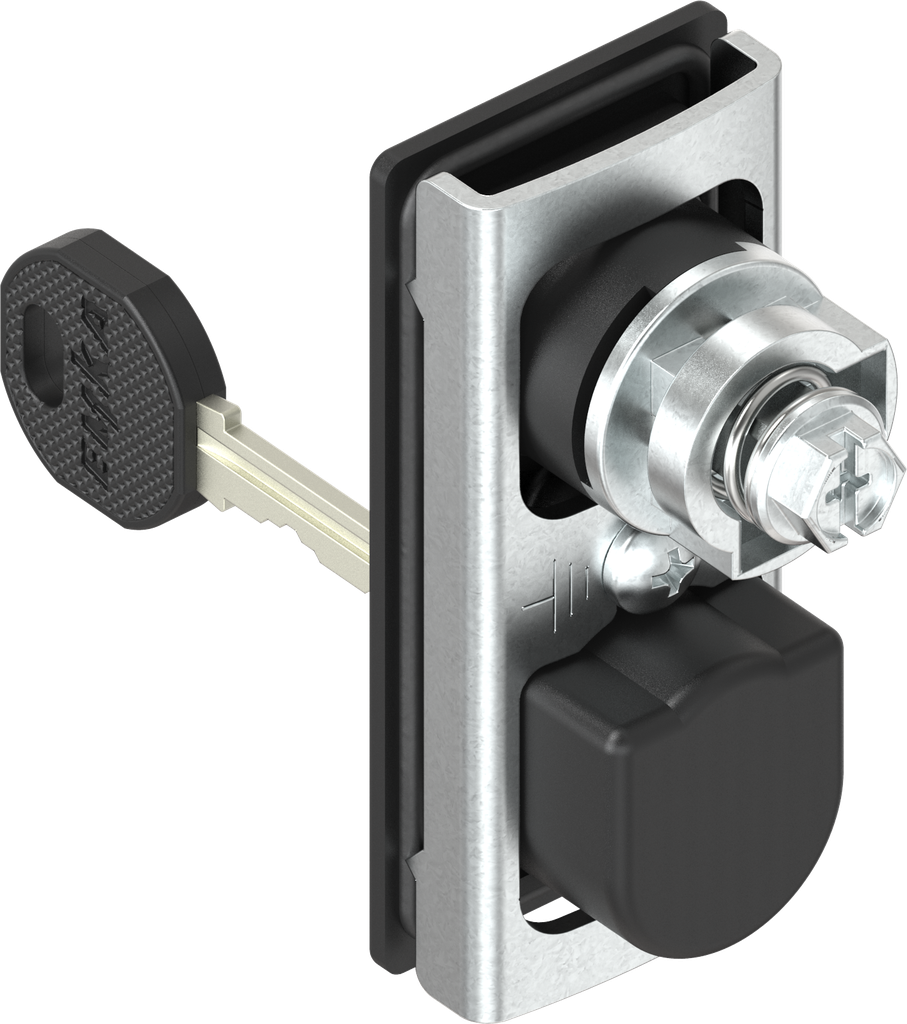

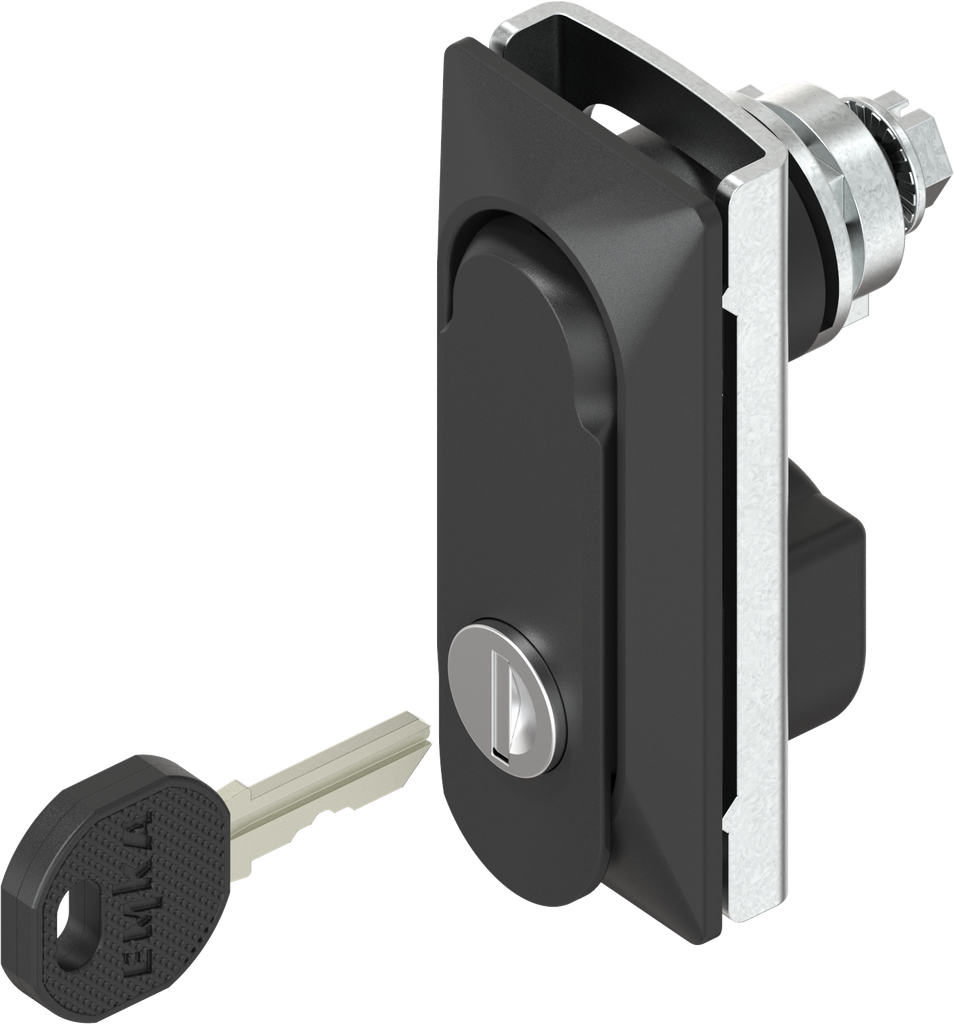

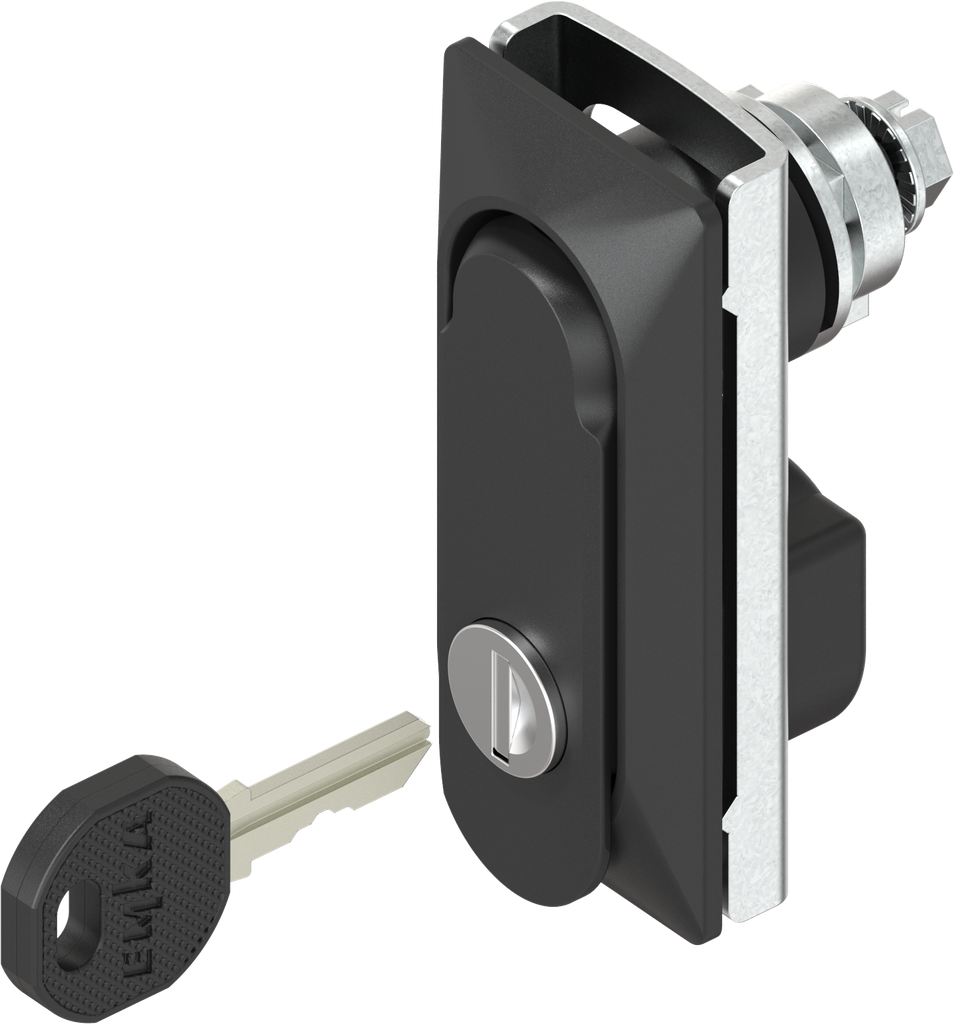

Swinghandle 1152 with compression with push button, Polyamide GF black
Swinghandle 1153 for profile half cylinder 40 mm (A = 30 mm), Zinc die black powder-coated
Product information:

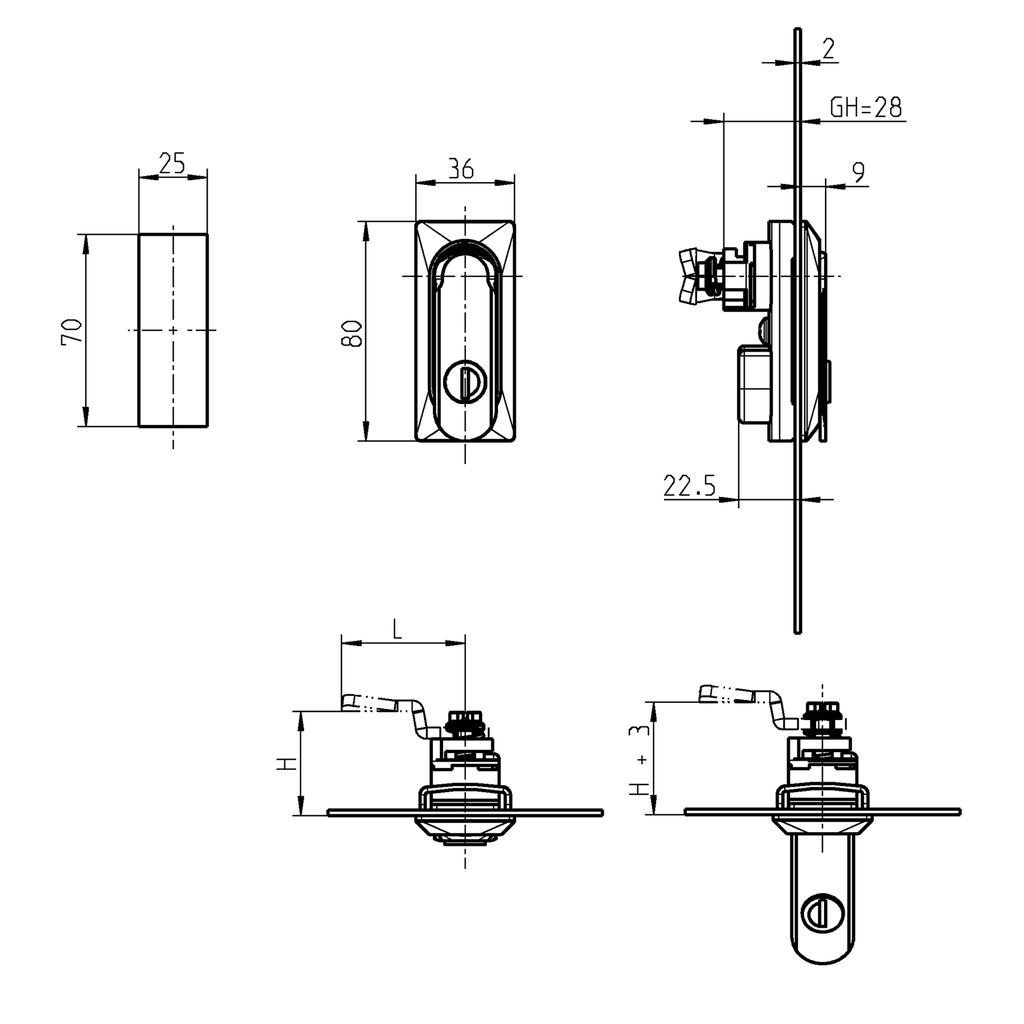

As the handle is pushed into the escutcheon, the cam moves 3 mm axially towards the door.
Akeneo Note:
Turn 90°
Internal Reference:
1152-U10-01
Product Type:
Swinghandle, Lifthandle
Program:
1152
Catalog sheet:
3C-540
Material of the module :
Polyamide GF
Surface of the module:
black
Door return variable:
Yes
Number of Possible Locking Points:
1 point
Number of Locking:
One locking set
Article with property rights:
Yes
Mounting Positions :
Inside the sealing
Foamed gasket:
Yes
GH Mass:
28 mm
Handle Art(1):
Swinghandle
Compression Value :
3 mm
Suitable for door thickness from:
1 mm
Suitable for door thicknesses up to:
3 mm
Round Cylinder Type:
EMKA EK, keyed EK 333
Locking set:
Round cylinder
Swivel Handle:
9 mm
Pan Handle Length:
80 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Cam
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
