Fixing material adapter, mounting rail and screws for swinghandle with cam, Zinc die and steel

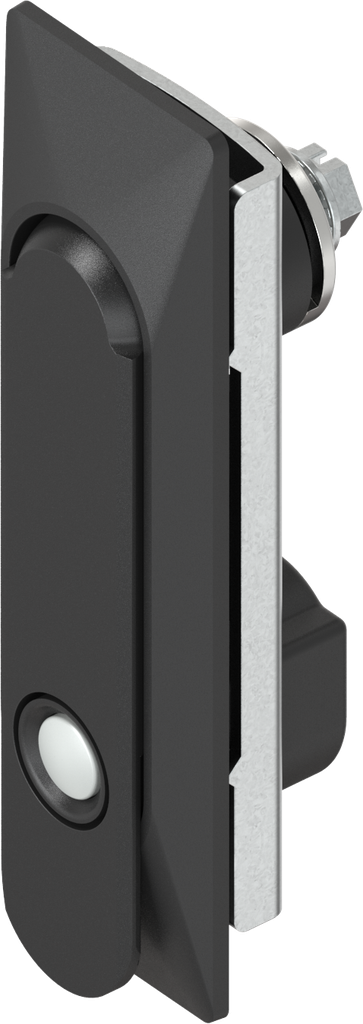

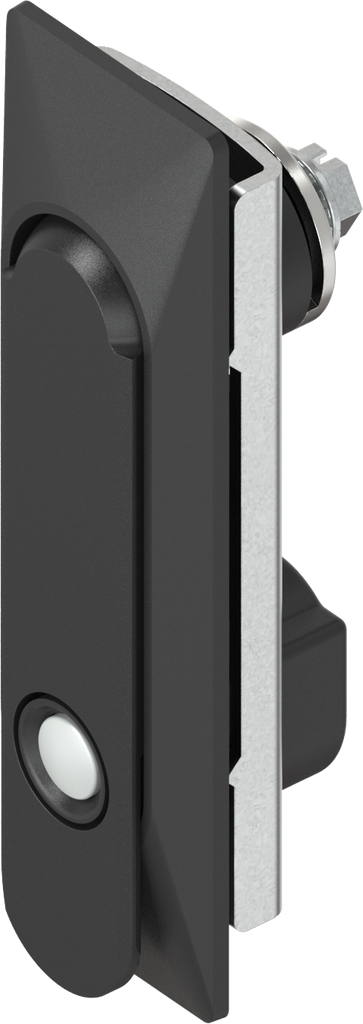

Swinghandle 1150 with electromagnetic release and emergency opening, keyed different, Polyamide and zinc die black powder-coated
Internal Reference:
1150-U55-03
Product Type:
Swinghandle, Lifthandle
Program:
1150
Catalog sheet:
3C-120
Material of the module :
Polyamide and zinc die
Surface of the module:
black powder-coated
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point
Number of Locking:
One locking set
Mounting Positions :
Inside the sealing
Grounding possible:
Yes
Foamed gasket:
Yes
GH Mass:
20 mm
Handle Art(1):
Swinghandle
Locking set:
Push button
Swivel Handle:
9 mm
Pan Handle Length:
120 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Door thickness:
2 mm
Locking components:
Cam
No Specifications
View All Products

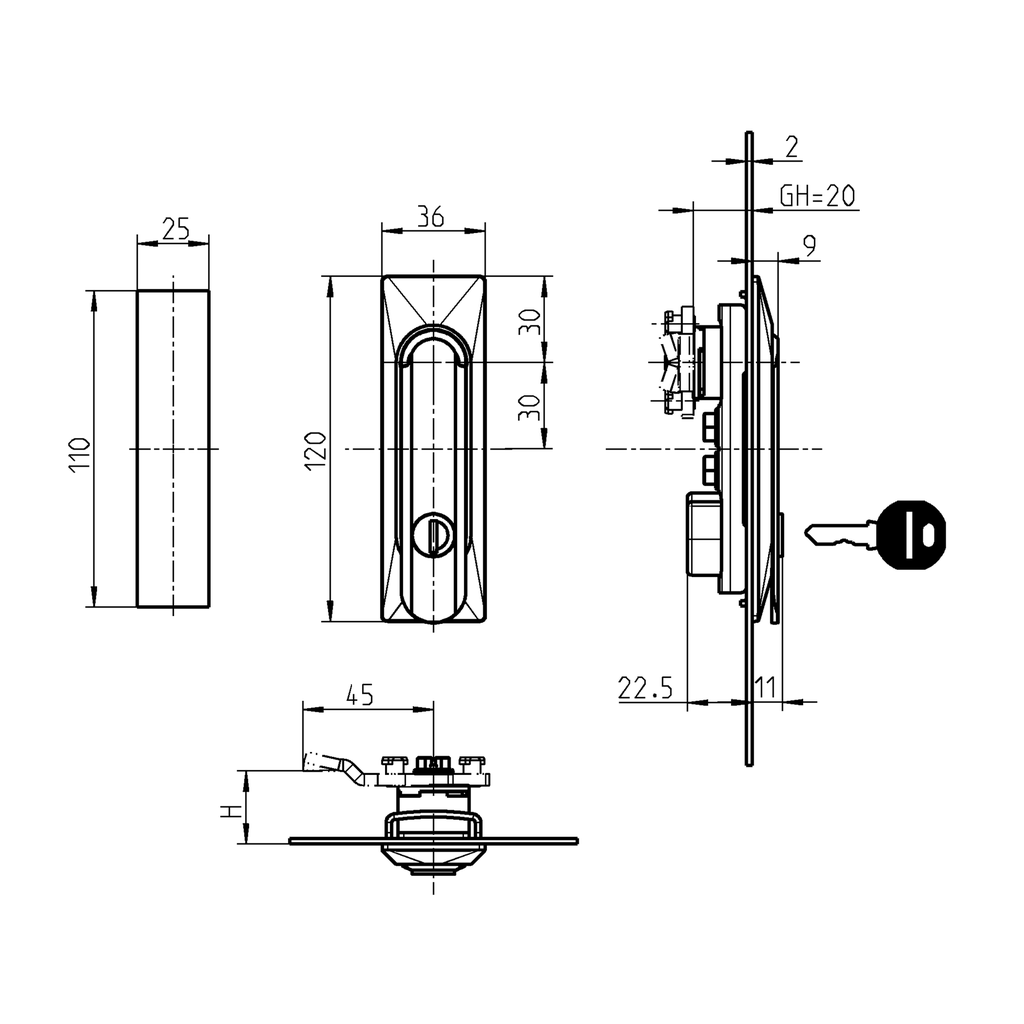

Here you can find the product data sheets and CAD files of this product
