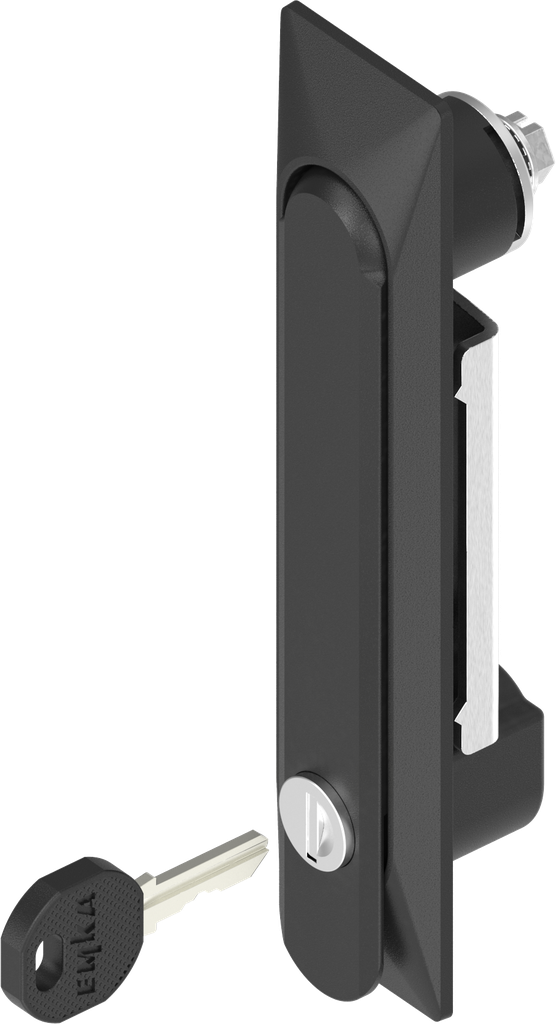

Swinghandle 1150, keyed different, and for padlock, Zinc die black powder-coated
Swinghandle 1150 with insert square 7, Zinc die black powder-coated
Internal Reference:
1150-U4-03
Product Type:
Swinghandle, Lifthandle
Program:
1150
Catalog sheet:
3C-120
Material of the module :
Polyamide and zinc die
Surface of the module:
black powder-coated
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point
Number of Locking:
One locking set
Mounting Positions :
Inside the sealing
Grounding possible:
Yes
Foamed gasket:
Yes
GH Mass:
20 mm
Handle Art(1):
Swinghandle
Round Cylinder Type:
EMKA EK, differently keyed
Locking set:
Round cylinder
Swivel Handle:
9 mm
Pan Handle Length:
160 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Door thickness:
2 mm
Locking components:
Cam
