Swinghandle 1150 with universal dish, keyed EK 333, Stainless steel AISI 316

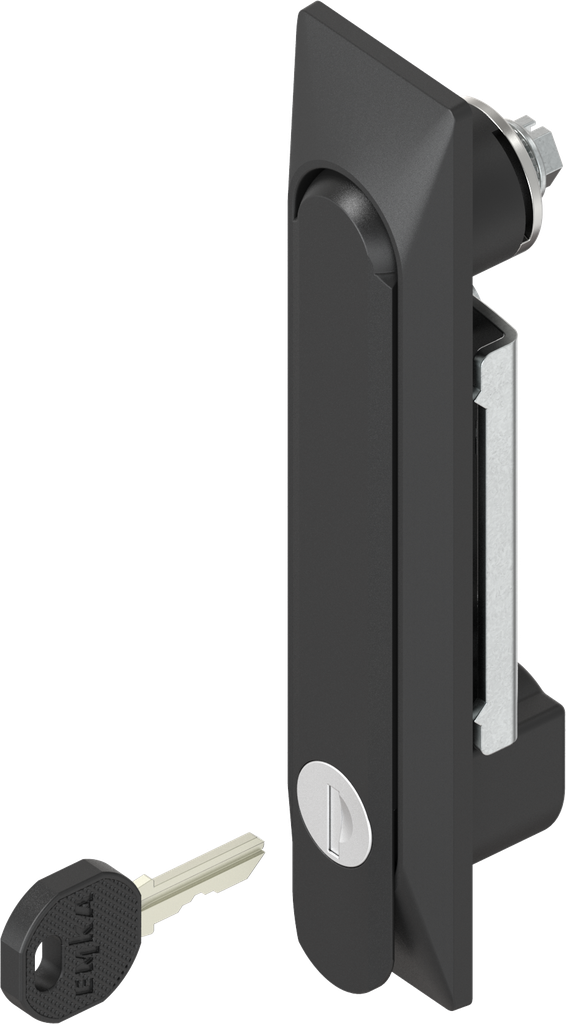

Swinghandle 1150 with universal dish, keyed different, Polyamide and zinc die black powder-coated
Product information:
On request:
- Key of round cylinder not removable in open position
- Other insert
Internal Reference:
1150-U34-3
Product Type:
Swinghandle, Lifthandle
Program:
1150
Catalog sheet:
3C-140
Material of the module :
Polyamide and zinc die
Surface of the module:
black powder-coated
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point
Number of Locking:
One locking set
Mounting Positions :
Inside the sealing
Grounding possible:
Yes
Foamed gasket:
Yes
GH Mass:
18 mm
Handle Art(1):
Swinghandle
Round Cylinder Type:
EMKA EK, keyed EK 333
Locking set:
Round cylinder
Swivel Handle:
11 mm
Pan Handle Length:
160 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Door thickness:
2 mm
Locking components:
Cam
No Specifications
View All Products

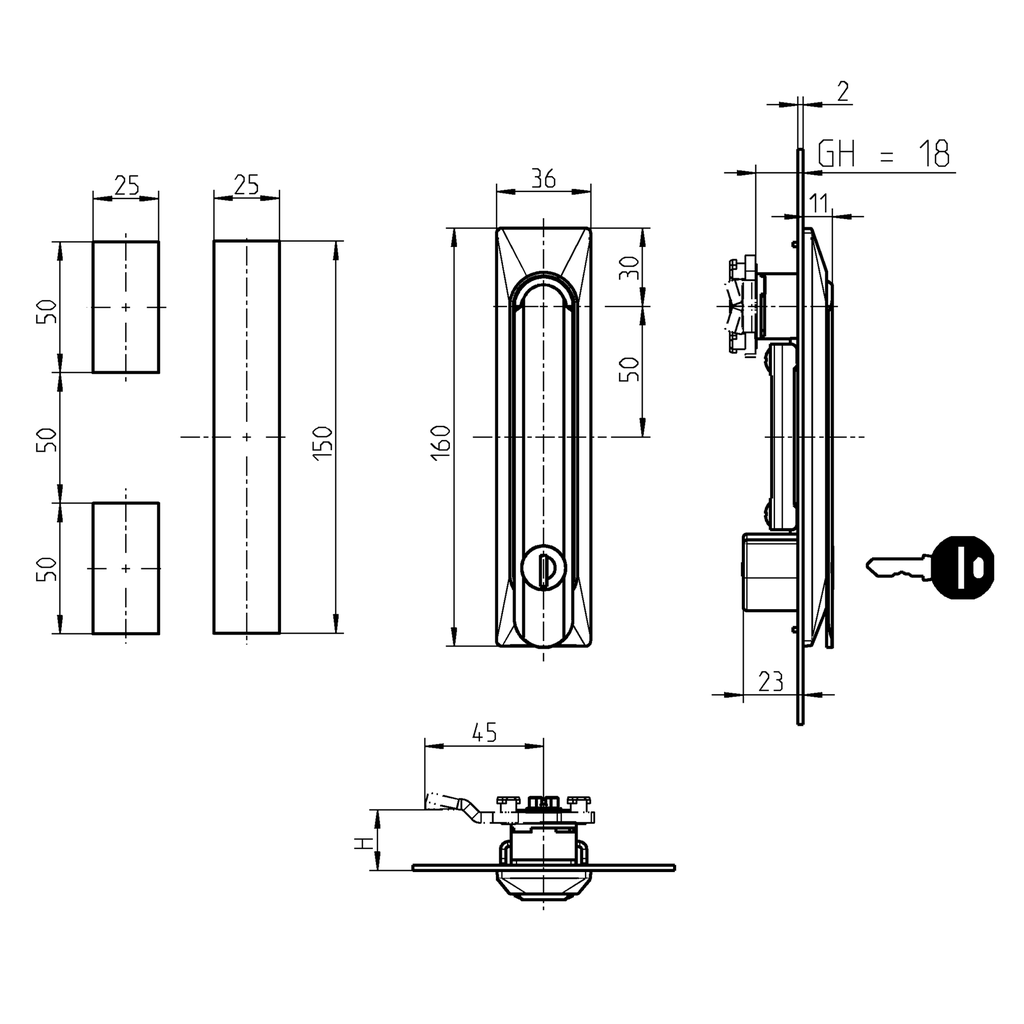

Here you can find the product data sheets and CAD files of this product
