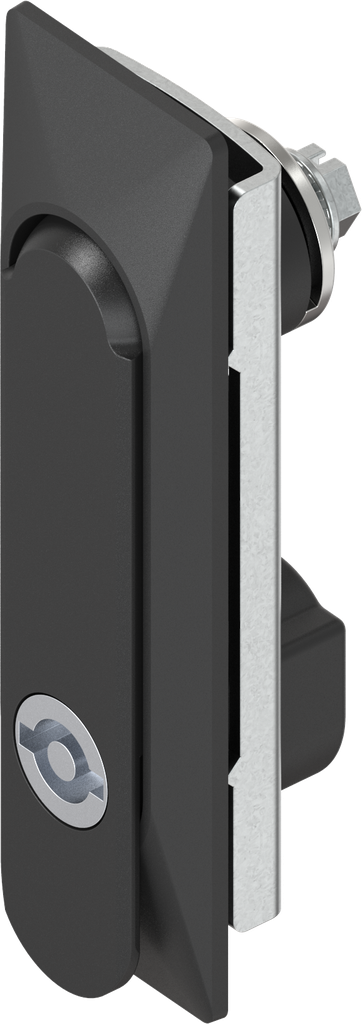

Swinghandle 1150 with insert double bit 3, Polyamide and zinc die black powder-coated
Swinghandle 1150 with insert triangular 6.5 CNOMO, Polyamide GF black
Internal Reference:
1150-U26-03
Product Type:
Swinghandle, Lifthandle
Program:
1150
Catalog sheet:
3C-120
Material of the module :
Polyamide and zinc die
Surface of the module:
black powder-coated
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point
Number of Locking:
One locking set
Type of actuation:
Double bit 5
Mounting Positions :
Inside the sealing
Grounding possible:
Yes
Foamed gasket:
Yes
GH Mass:
20 mm
Handle Art(1):
Swinghandle
Locking set:
Insert
Swivel Handle:
9 mm
Pan Handle Length:
120 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Door thickness:
2 mm
Locking components:
Cam
