Escutcheon with wing knob, keyed EK 333, Polyamide black and zinc die black powder-coated
Escutcheon with wing knob, keyed EK 333, Polyamide black and zinc die black powder-coated
Escutcheon with T-handle, non-keyed, Stainless steel and polyamide black
Escutcheon with T-handle, non-keyed, Stainless steel and polyamide black

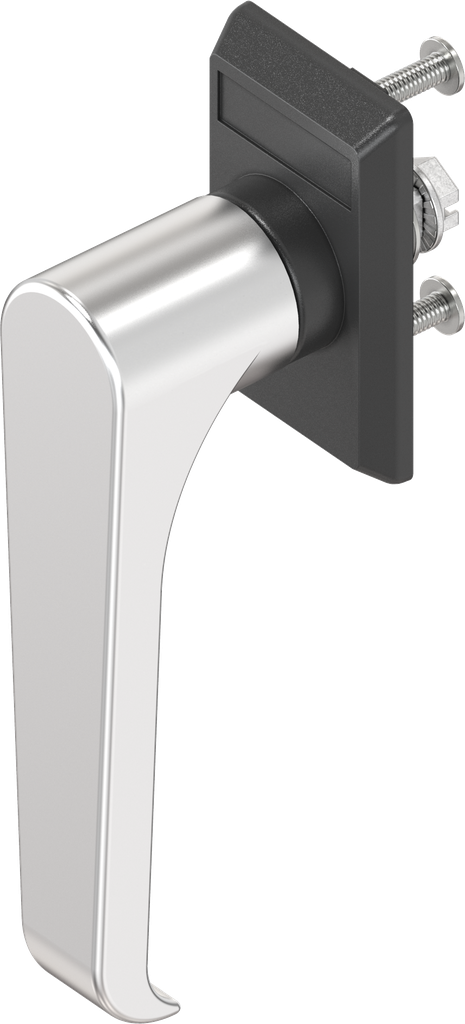

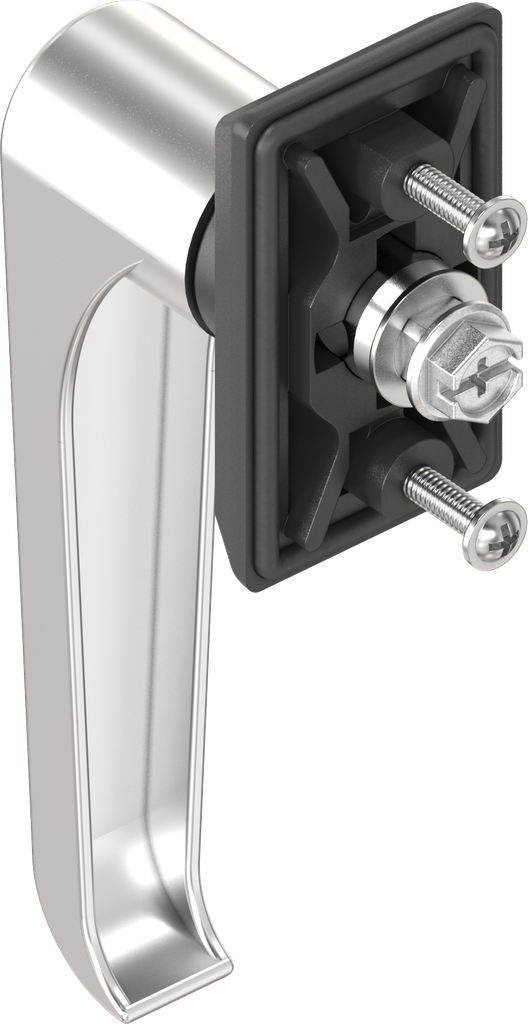

Escutcheon with L-handle, non-keyed, Polyamide black and stainless steel; 1123-U36-06

https://www.emka.com/products/1123-u36-06 https://www.emka.com/web/image/product.template/64580/image_1920?unique=b7ba8a6

    This combination does not exist.

    Inside the sealing Grounding possible Foamed seal Protection class IP 65
    Contact Us
    Internal Reference: 1123-U36-06
    Product Type: Escutcheon
    Program: 1123
    Catalog sheet: 3B-180
    Material of the module : Polyamide black and stainless steel
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    Handle Art: L-handle
    Locking means key tag: L-handle without lock
    Key Tag Size: short
    Door thickness: 2 mm
    Locking components: Rod control,Bearing bush with cam
    No Specifications
    View All Products
    Rod control
    Bearing bush
    Here you can find the product data sheets and CAD files of this product
