Escutcheon with T-handle, keyed EK 333, Polyamide black and zinc die black powder-coated
Escutcheon with T-handle, keyed EK 333, Polyamide black and zinc die black powder-coated
Escutcheon with L-handle, non-keyed, Polyamide black and zinc die black powder-coated
Escutcheon with L-handle, non-keyed, Polyamide black and zinc die black powder-coated

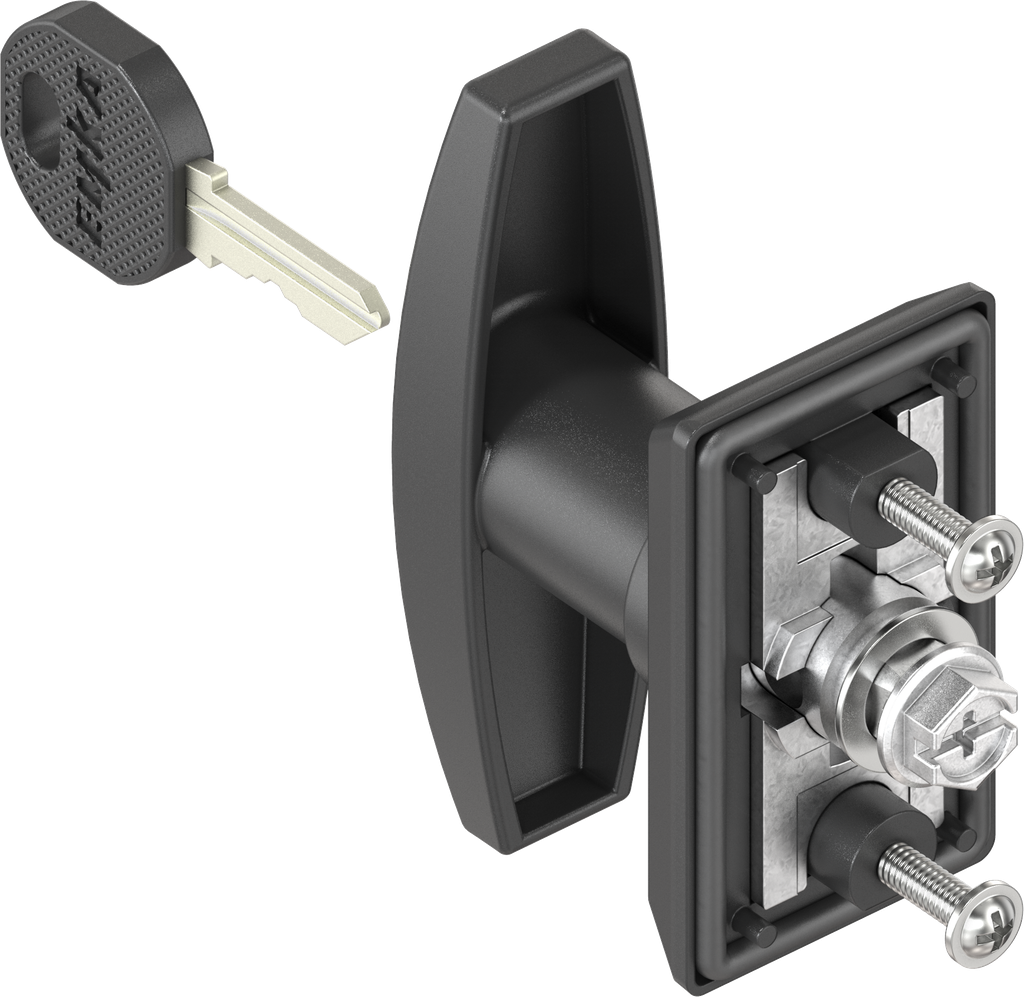

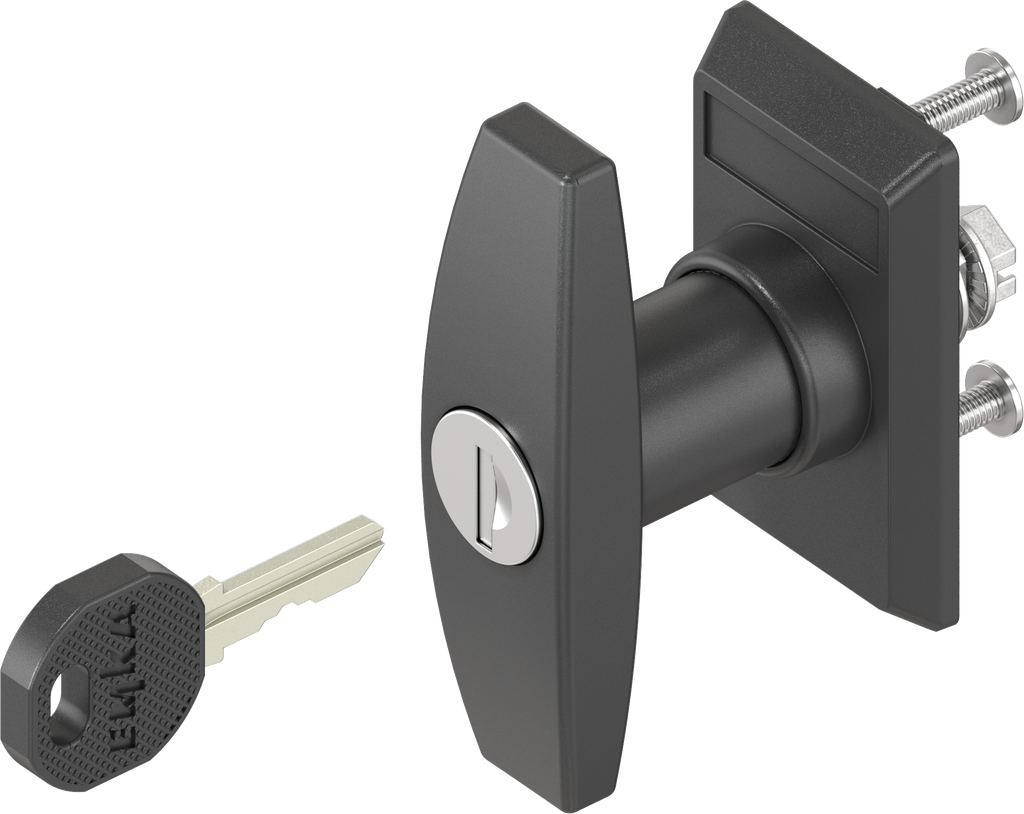

Escutcheon with T-handle, keyed different, Polyamide black and zinc die black powder-coated; 1123-U12-06

https://www.emka.com/products/1123-u12-06 https://www.emka.com/web/image/product.template/64572/image_1920?unique=dc59582

    This combination does not exist.

    Inside the sealing Grounding possible Foamed seal Protection class IP 65
    Contact Us
    Internal Reference: 1123-U12-06
    Product Type: Escutcheon
    Program: 1123
    Catalog sheet: 3B-180
    Material of the module : Polyamide black and zinc die
    Surface of the module: black powder-coated
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    Handle Art: T-handle
    Locking means key tag: T-handle keyed different
    Key Tag Size: short
    Door thickness: 2 mm
    Locking components: Rod control,Bearing bush with cam
    No Specifications
    View All Products
    Keys
    Rod control
    Rod control accessories
    Bearing bush
    Here you can find the product data sheets and CAD files of this product
