Escutcheon long for double bit, Polyamide GF black
Escutcheon long for double bit, Polyamide GF black
Escutcheon short for square, triangular, Daimler Benz and slot, Stainless steel AISI 316
Escutcheon short for square, triangular, Daimler Benz and slot, Stainless steel AISI 316

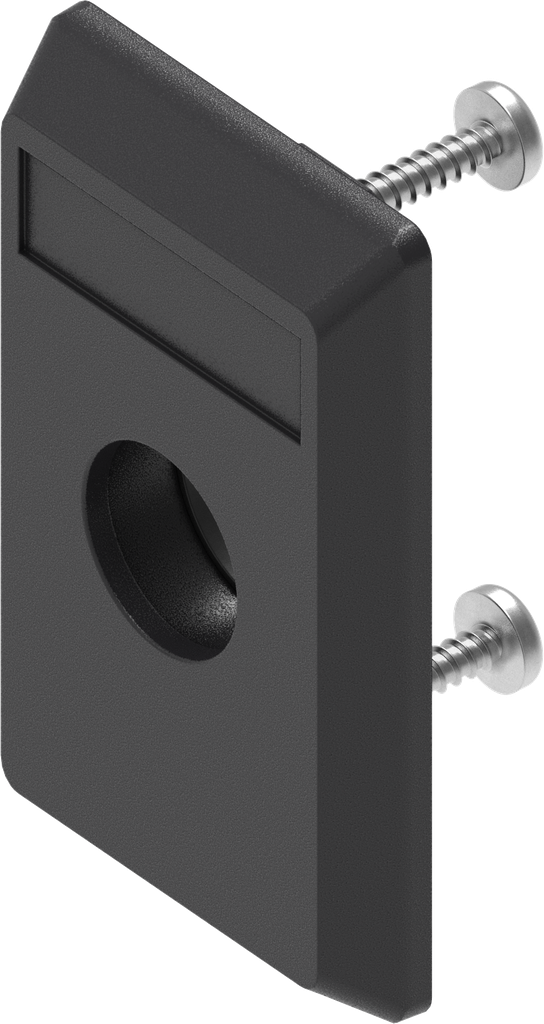

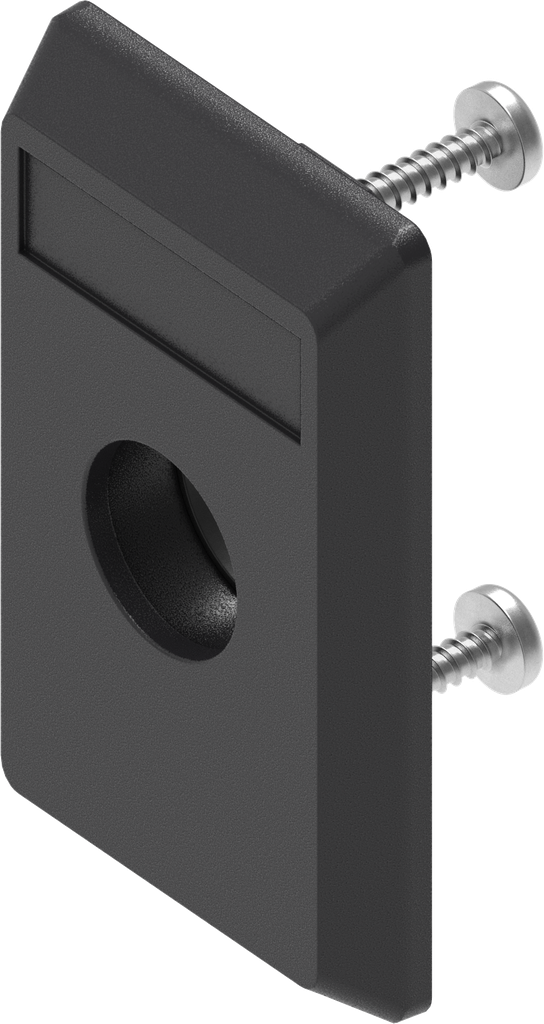

Escutcheon short for square, triangular, Daimler Benz and slot, Polyamide GF black; 1121-U22-06

https://www.emka.com/products/1121-u22-06 https://www.emka.com/web/image/product.template/64500/image_1920?unique=eea1b54

    This combination does not exist.

    Inside the sealing Outside the sealing Grounding possible Foamed seal Protection class IP 65
    Contact Us
    Internal Reference: 1121-U22-06
    Product Type: Escutcheon
    Program: 1121
    Catalog sheet: 3B-120
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Mounting Positions : Inside the sealing,Outside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    Locking means key tag: Insert square, triangular, Daimler Benz, slot, etc.
    Key Tag Size: short
    Door thickness: 2 mm
    Locking components: Rod control,Bearing bush with cam
    No Specifications
    View All Products
    Insert
    Rod control
    Bearing bush
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3B-120
