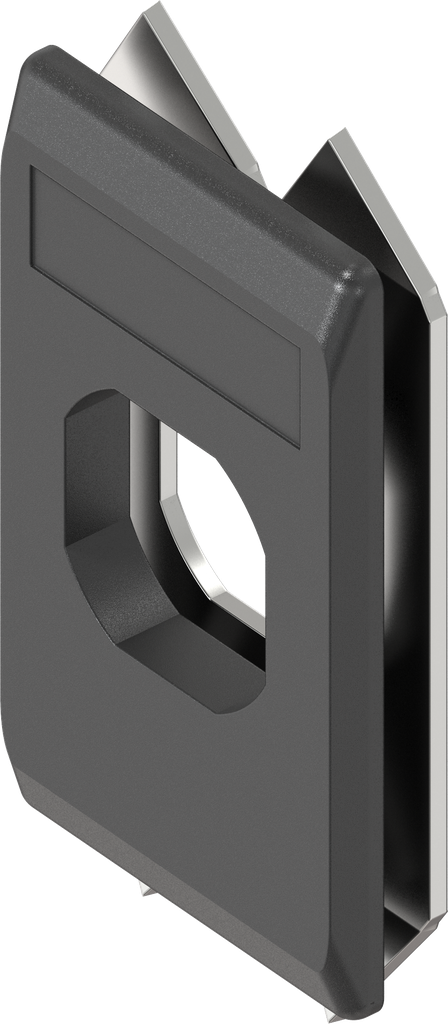

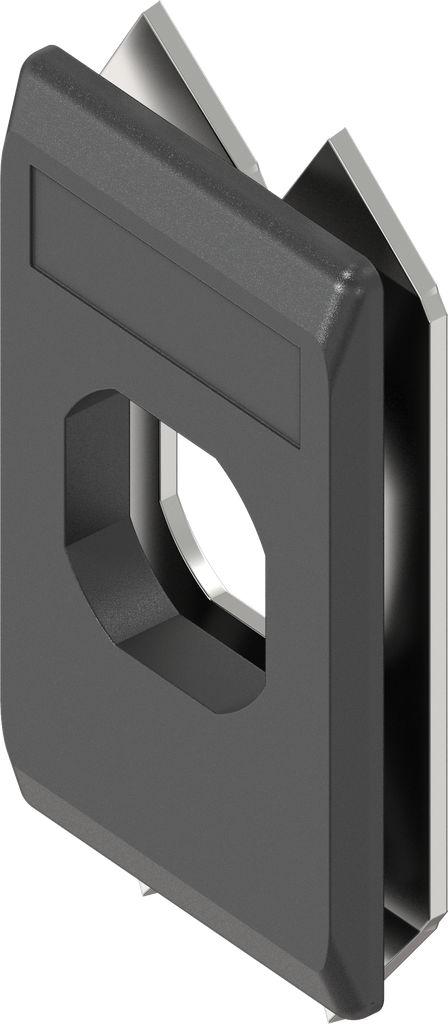

Escutcheon for quarter turn, Program 1000, Polyamide GF black; 1121-U168

https://www.emka.com/products/1121-u168 https://www.emka.com/web/image/product.template/64543/image_1920?unique=3050294

    This combination does not exist.

    Inside the sealing Grounding possible Foamed seal Protection class IP 65
    Contact Us

    Product information:

    Attention:
    Dimension H of the cam reduces by 4 mm, dimension Ts of the housings by 5.5 mm

    Note:
    IP 65 is achieved by quarter turn with IP 65 protection
    Internal Reference: 1121-U168
    Product Type: Escutcheon
    Program: 1121
    Catalog sheet: 3B-140
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    Suitable for door thickness from: 1.50 mm
    Locking components: Cam
    No Specifications
    View All Products
    Housing

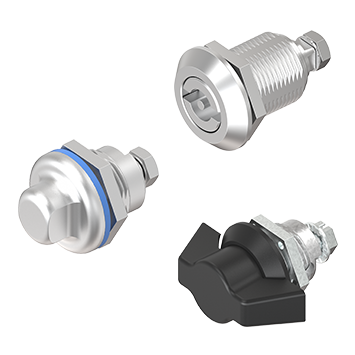

    Quarter turn
    Here you can find the product data sheets and CAD files of this product
