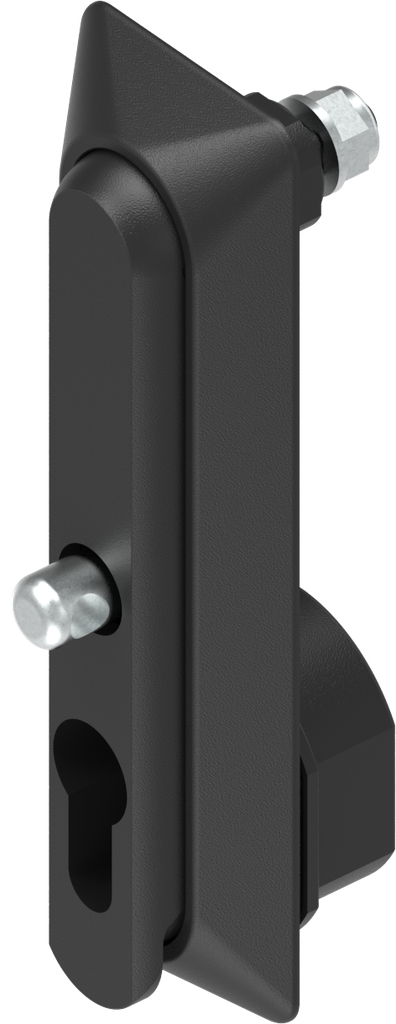

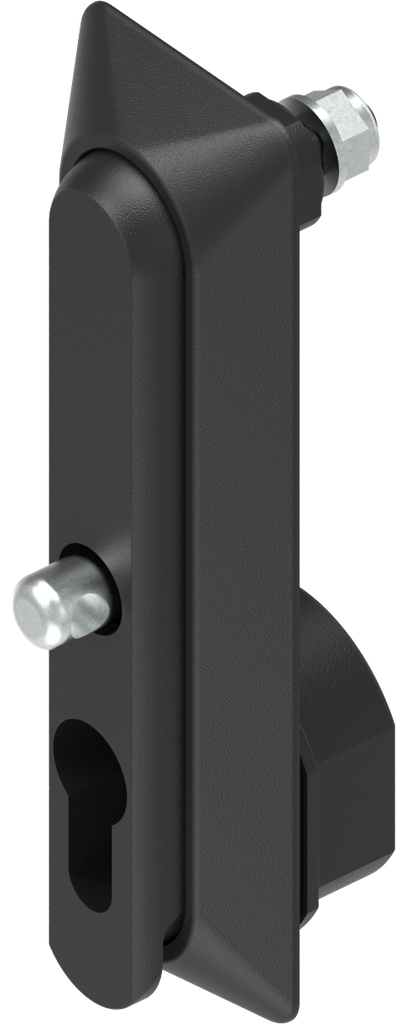

Swinghandle "short" for profile half cylinder 40 mm (A = 30 mm), Polyamide GF black
Swinghandle "short" for profile half cylinder 45 mm (A = 35 mm), Polyamide GF black
Swinghandle "short" for profile half cylinder 40 mm (A = 30 mm), Polyamide GF black; 1107-U164-G
for cam
Product information:
When using the adapter ring the max. door gauge (Ts) will be 6 mm.
When using door gauge (Ts) > 4 mm standard round rods cannot be used!
Order screw set 1107-U170 for Ts = 4 - 12 mm separately
Internal Reference:
1107-U164-G
Product Type:
Swinghandle, Lifthandle
Program:
1107
Catalog sheet:
3A-140
Material of the module :
Polyamide GF
Surface of the module:
black
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point
Number of Locking:
One locking set
Attachment of the trough:
Screw-on cap IP 65
Mounting Positions :
Inside the sealing
Foamed gasket:
Yes
Handle Art(1):
Swinghandle
Without locking set:
Profile half cylinder, blind plug without spring-loaded ball,Profily half cylinder blind plug with spring-loaded ball
Suitable for door thickness from:
2 mm
Suitable for door thicknesses up to:
12 mm
Locking set:
Profile half cylinder A = 30
Swivel Handle:
20 mm
Pan Handle Length:
165 mm
Door Version :
Left,Right
Locking components:
Cam
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
