T-handle, keyed different, Zinc die chrome-plated
T-handle, keyed EK 333, Zinc die black powder-coated

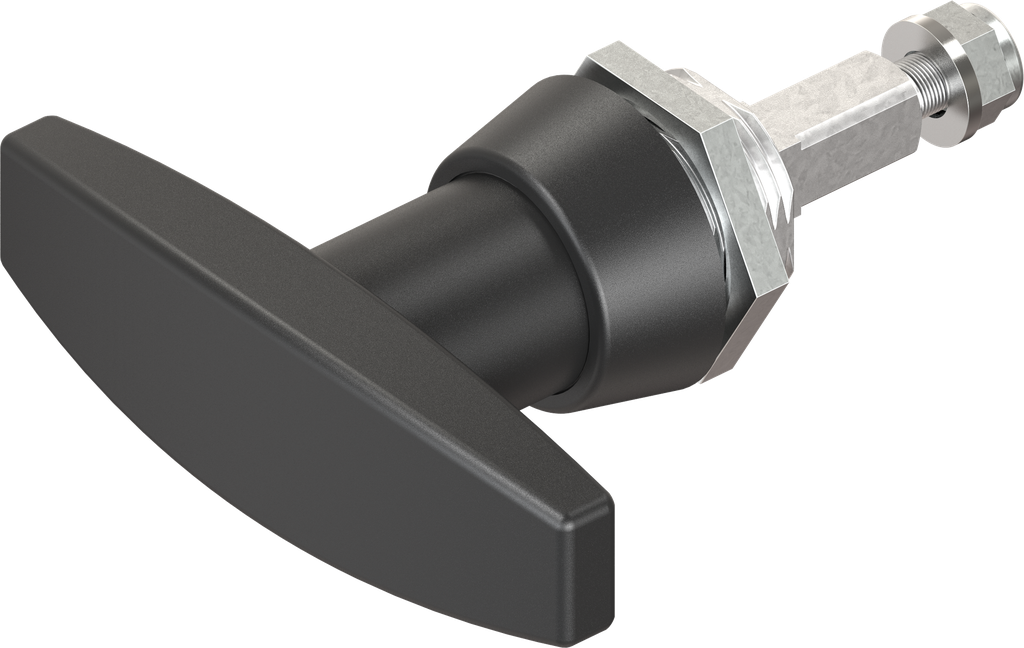

T-handle, non-keyed, Zinc die black powder-coated; 1102-U8
for screw-on version, A = 26 mm
No stock item, please ask for availability
Internal Reference:
1102-U8
Standards:
Protection class IP 65
Barcode:
1102-U00008-0000000
Product Type:
Quarter turn
Program:
1102
Catalog sheet:
2A-140
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Dimention A:
A 26
Fixing type of housing :
nut fixing
Housing Head Shape:
Round
Handle Art:
T-handle
IP 65 on request:
Yes
Suitable for door thicknesses up to:
2 mm
Locking set:
No locking set, blind
Door Version :
Left,Right
Locking components:
Rod control for heavy duty
Quarter turn types:
Quarter turn with handle
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
