O-ring set for bezel foamed, Perbunan
Recessed grip, Polyamide black

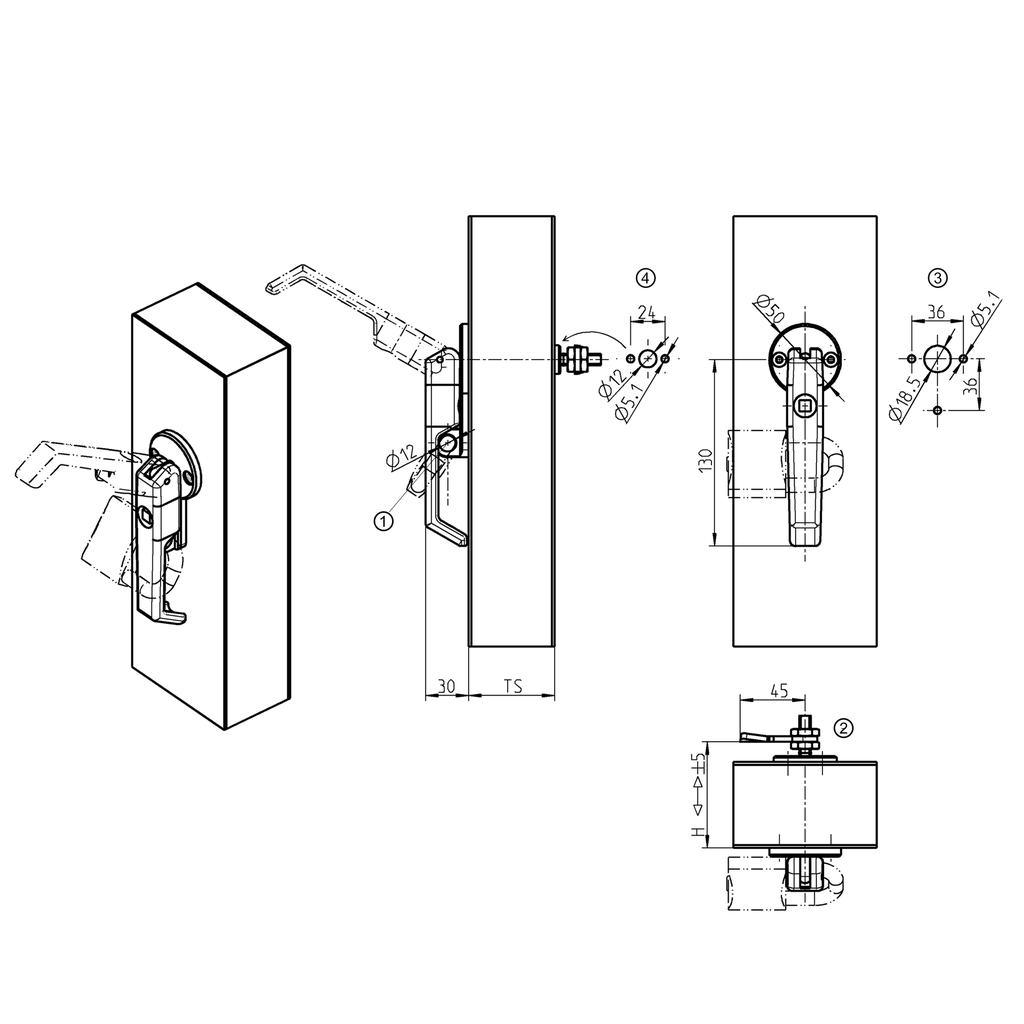

Product information:

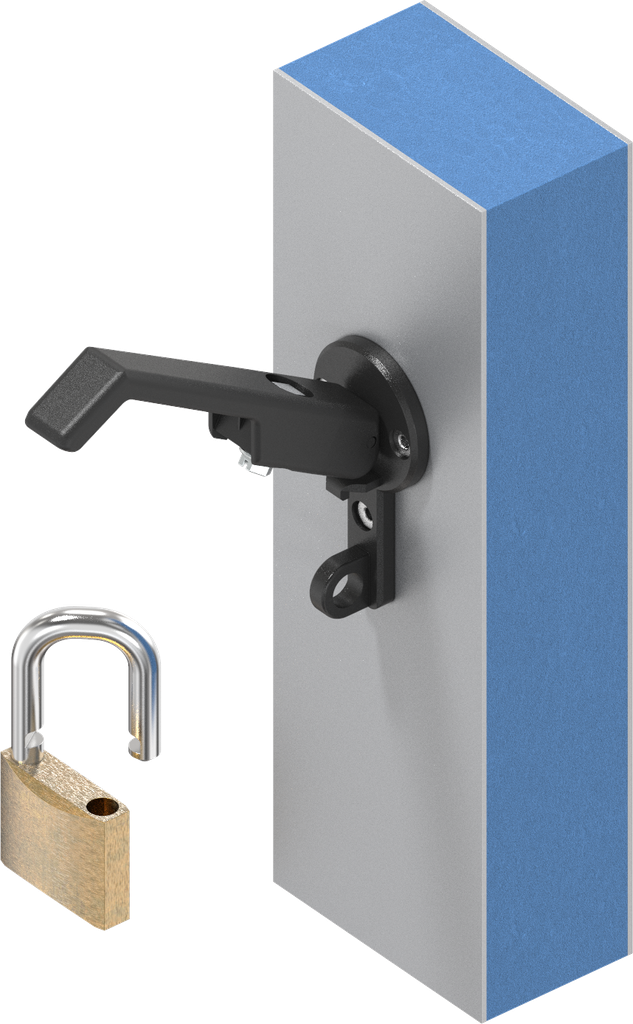

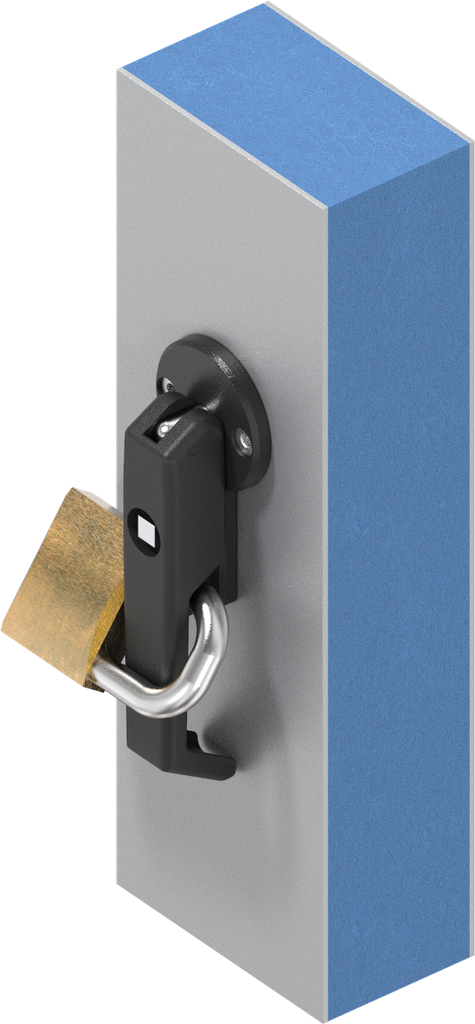

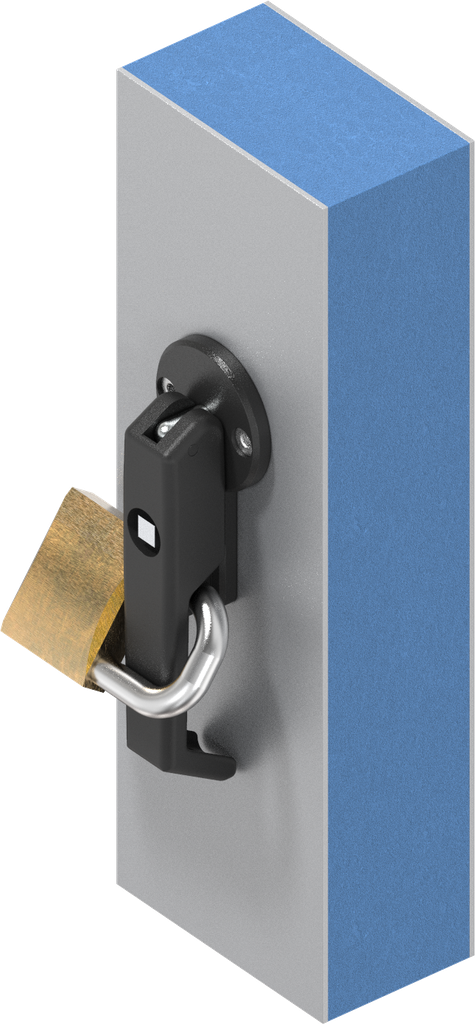

1 = Bore hole for padlock
2 = Cam adjustable by ± 5 mm ; stroke 8 mm
3 = Cut out outside
4 = Cut out inside

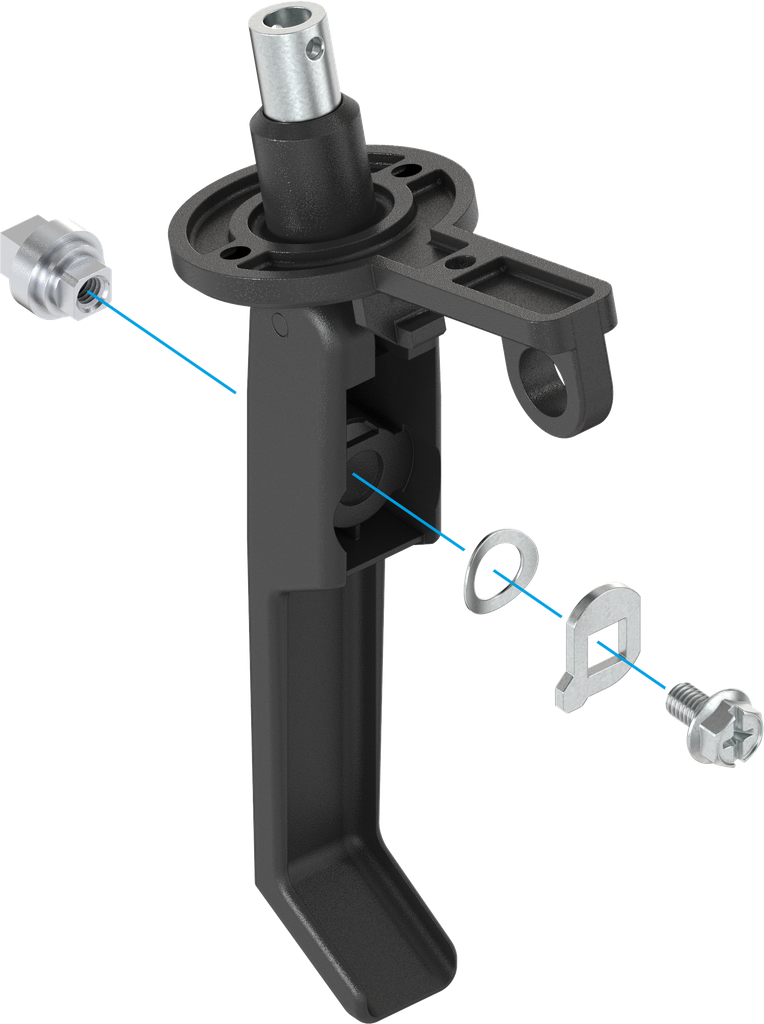

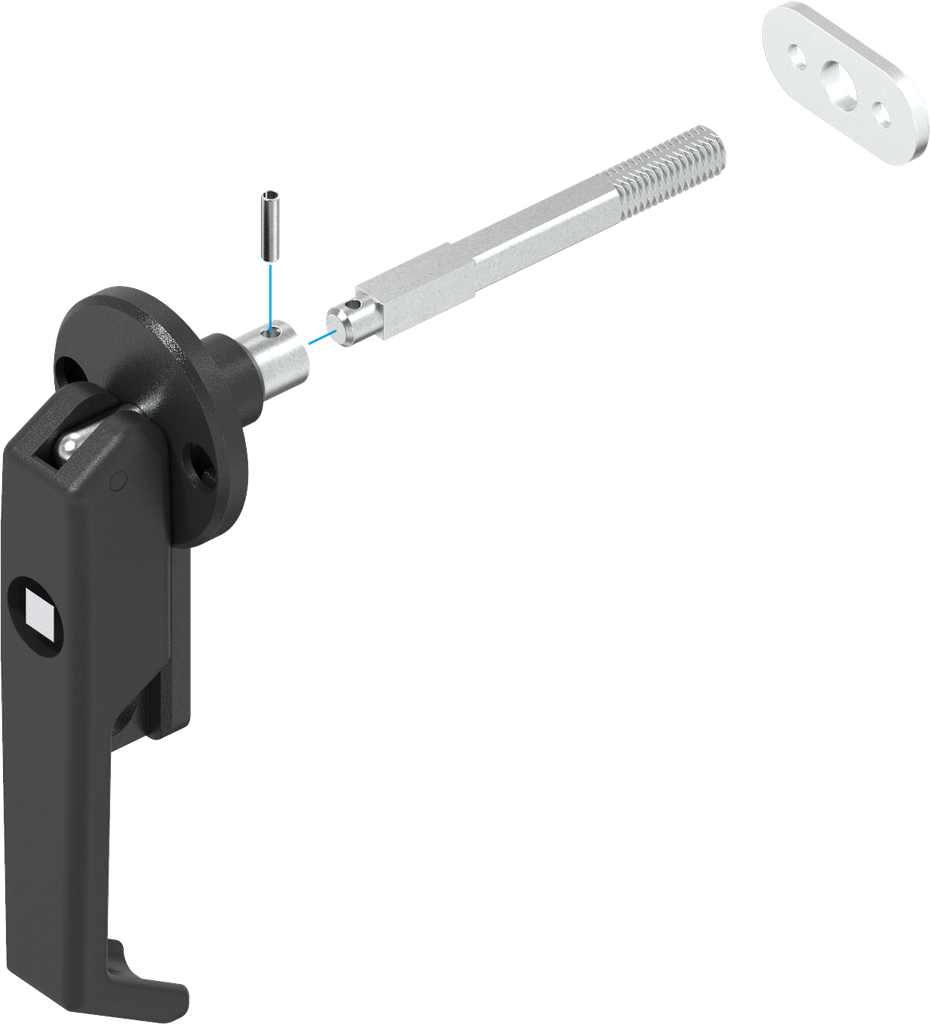

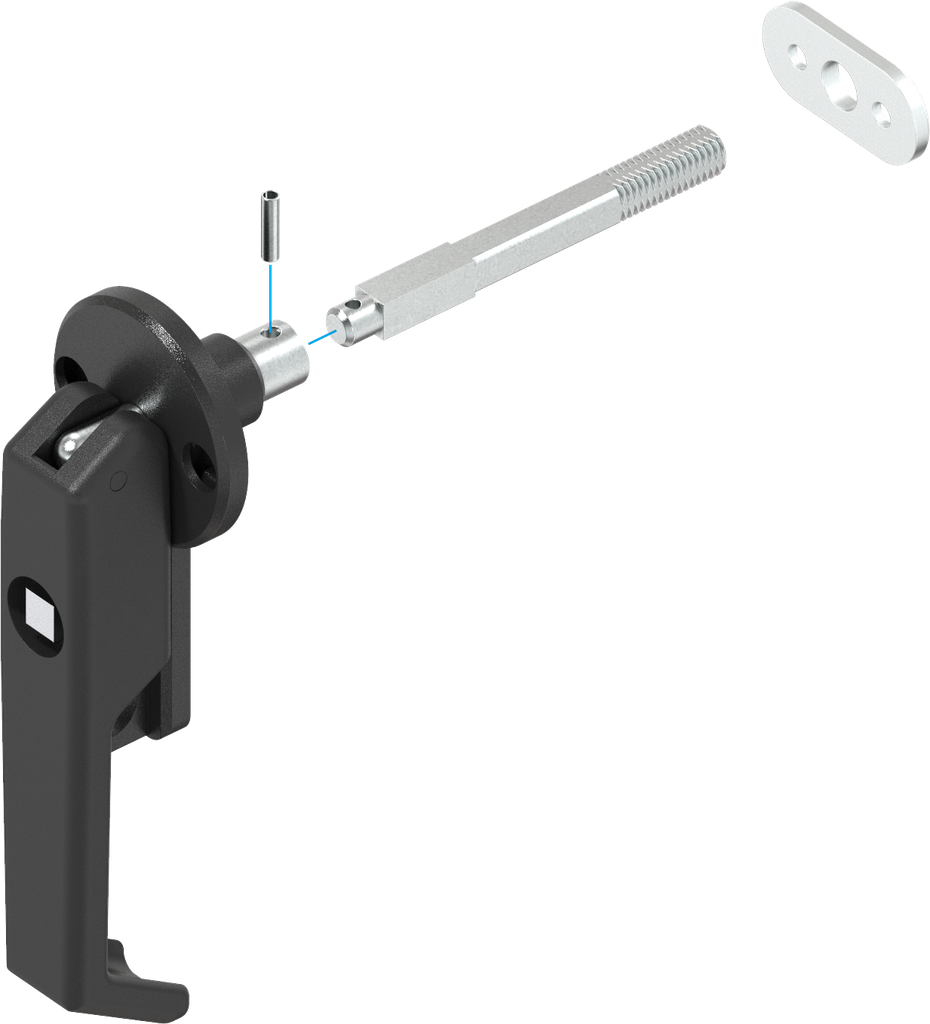

Assembly instruction:
Fixing of housing and bearing plate by blind rivets
Order / Calculation example:
Insert, cam and shaft are not included in the delivery and must be ordered separately!
Internal Reference:
1091-U95
Product Type:
HVACR
Program:
1091
Material of the module :
Zinc die and polyamide
Surface of the module:
black
Axis:
Steel shaft
Number of Possible Locking Points:
1 point
Compression Value :
8 mm
Suitable for door thickness from:
30 mm
Suitable for door thicknesses up to:
140 mm
Lock Type(1):
Cam
Closure Type:
HVACR compression latch
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
